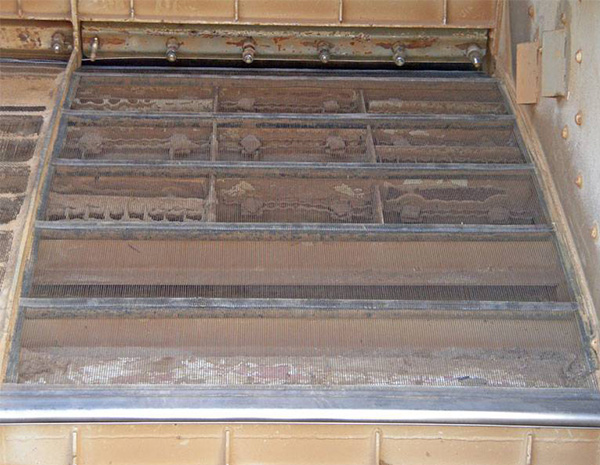

Piano Wire Screens

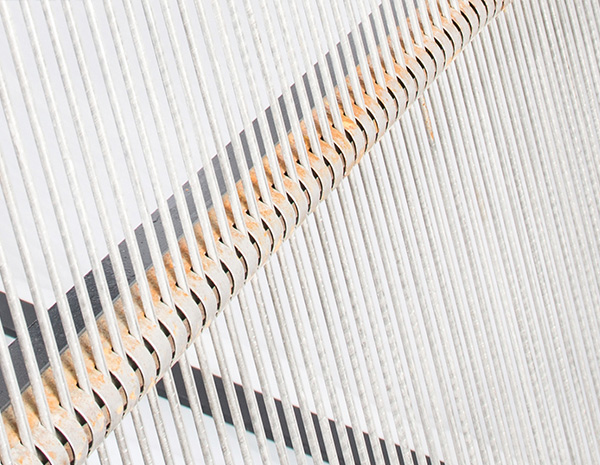

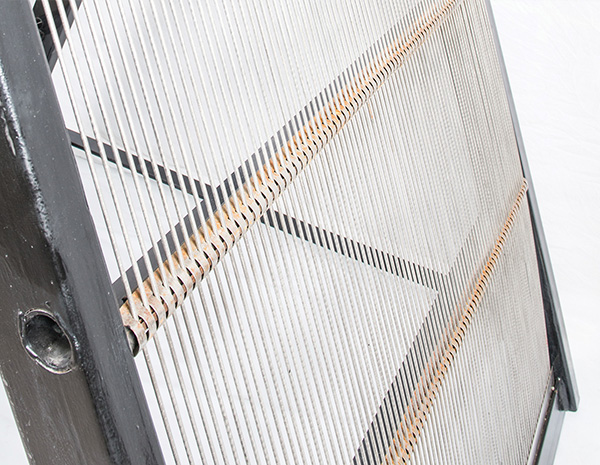

YHY high specification Piano Wire Screens can be more fragile than other screens but give very good performance with regard to throughput and binding. These type of screens are generally supplied for smaller screen sizes where wet and sticky conditions exist. Piano Wire Screens are manufactured using straight parallel wires which are connected at intevals along the screens. This creates a large and elongated opening, and is useful for screening regular shaped material.

Feature：

• High strength, high flexibility.

• Wear resistance.

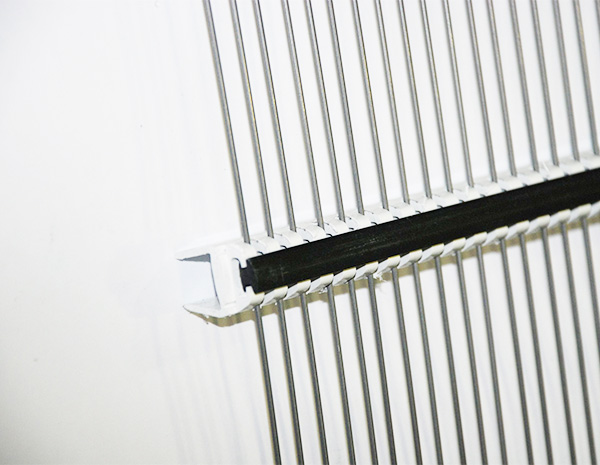

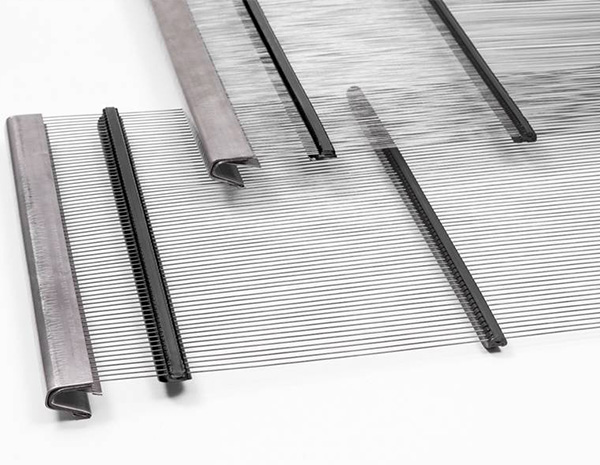

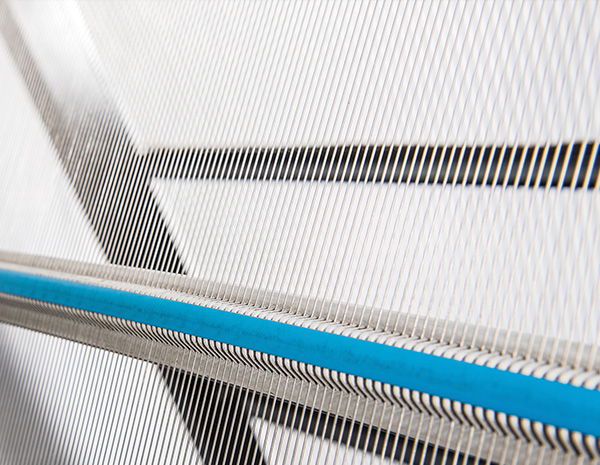

• Metal or polyurethane sliding profile can adjust the slot length.

• No blinding and plugging.

• High efficiency.

• Easy to install.

TECHNICAL INFORMATION

• Materials available: High tensile steel and stainless steel

• Apertures: from 1mm to 20mm

• Wire thicknesses: from 0.65 to 3mm depending on screen specification

• Screen size: all standard sizes available
