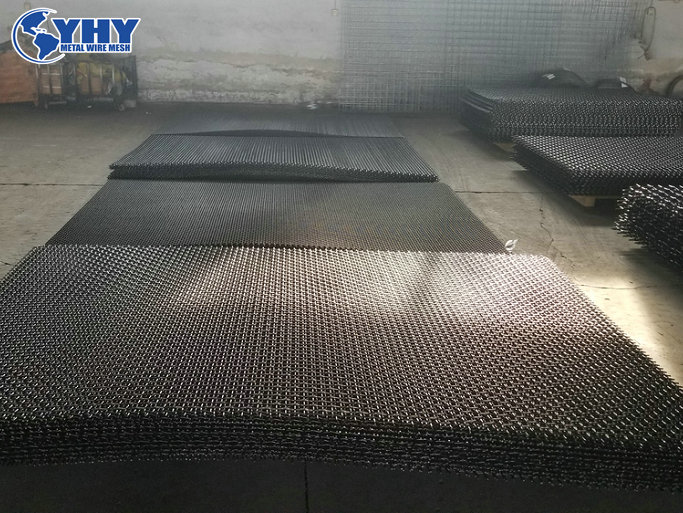

Black Plain Crimp Mining Screen Sheet Long Service Life

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh. It is made of spring steel wire and stainless steel wire. The high-quality raw materials make woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.

Share:
Detail Description

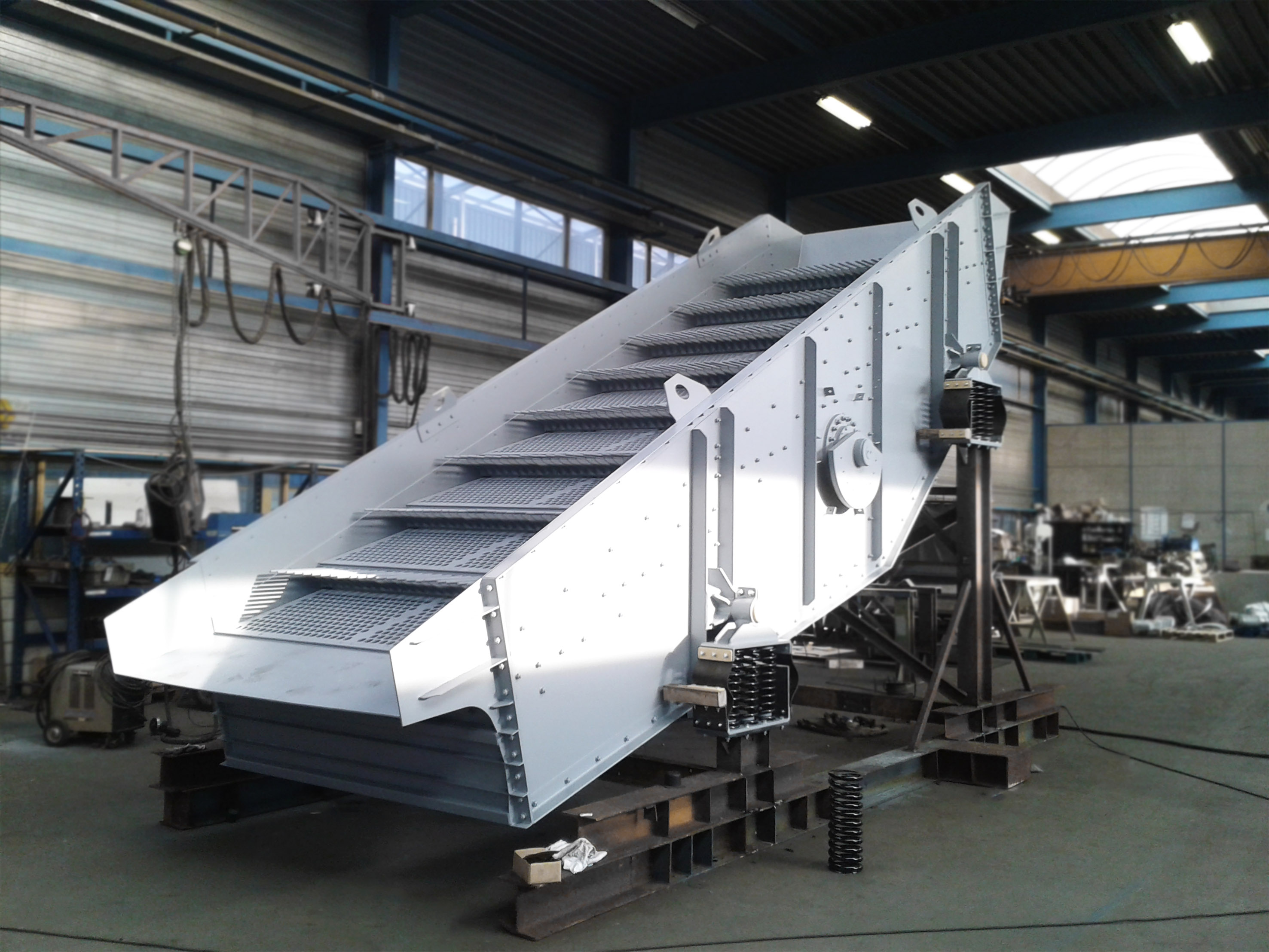

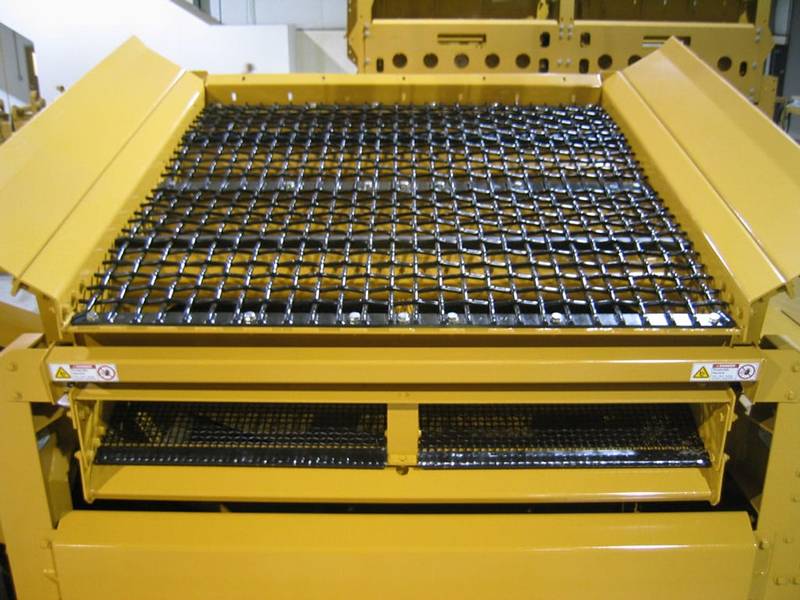

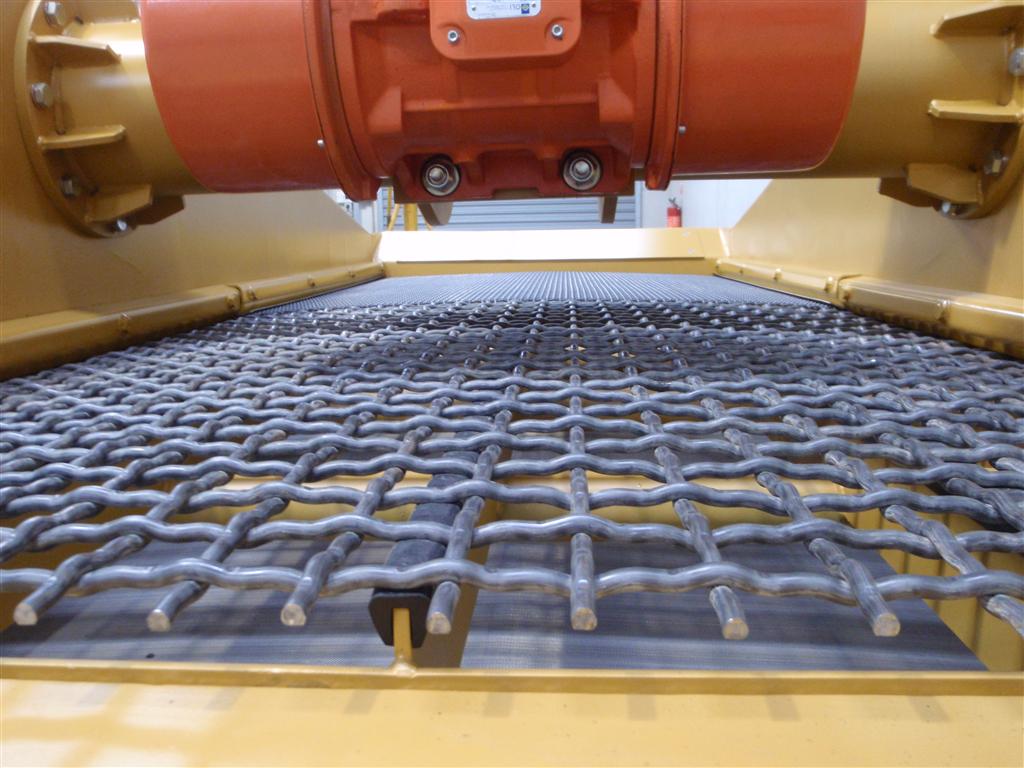

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh.  It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. The high-quality raw materials make woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on. With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.



Material: High tensile spring steel, manganese steel, High carbon and medium carbon steel wire, black wire, and stainless steel wire.

Wire diameter: 0.71–14 mm.

Opening size: 1–110 mm.

Surface treatment: Galvanized before weave and galvanized after weave, painted.

Hole type: Square mesh, rectangular mesh.

Hook Type:  C or U hook for 30° - 180°

Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.



65 Mn Wear Resistance Stone Crusher Screen Mesh for Mining

Knowledge

Available Steel Material


45



Specifications



diameter (mm)opening (mm)meshweight(kg/m2)length (M)weight (Kg)
12600.3525.930777
10600.3618.530555
9600.3614.930446
8600.3712.1930365
7500.4411.1330334
6500.458.3230250
5400.567.230215
4400.584.7330142
4300.756.0730182
4250.877.130213
3.2250.874.730141
3.2201.15.6330169
2.6201.123.8730116
2.6181.234.2330127
2.6151.445.7730173
2151.493.063092
2121.83.6730110
2102.124.2330127
282.545.1730155
1.8734.9630149
1.863.255.3630161
1.6733.930117
1.663.354.3730131
1.653.85530150
1.644.55.8730176
1.635.57.1730215
1.463.53.530105
1.454430120
1.444.74.6730140
1.282.71.973059
1.273.12.263068
1.263.52.573077




Features

 ● High strength, not easily deformed.

 ● Wear resistance, corrosion resistance, and rust resistance.

 ● High temperature is resistant.

 ● High-quality ductility and toughness.

 ● Mesh uniform.

 ● Long service life.

 ● The opening of the cloth is neat and precise.

 ● Various materials for choice.

 ● Beautiful surface.

 ● Acid and alkali resistance.

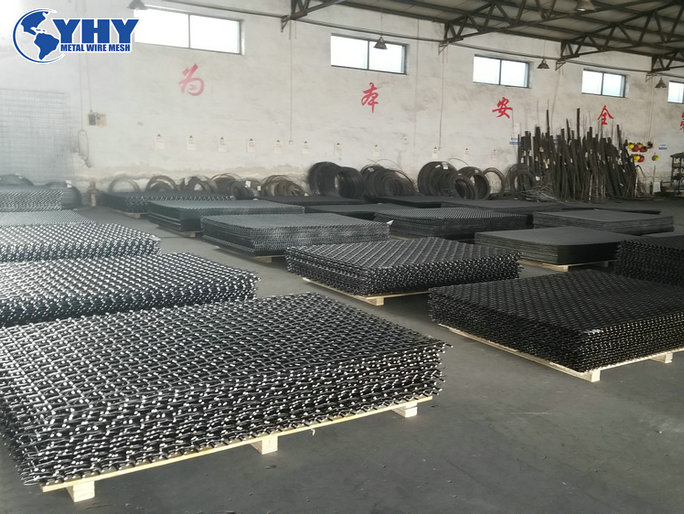

Packaging

45

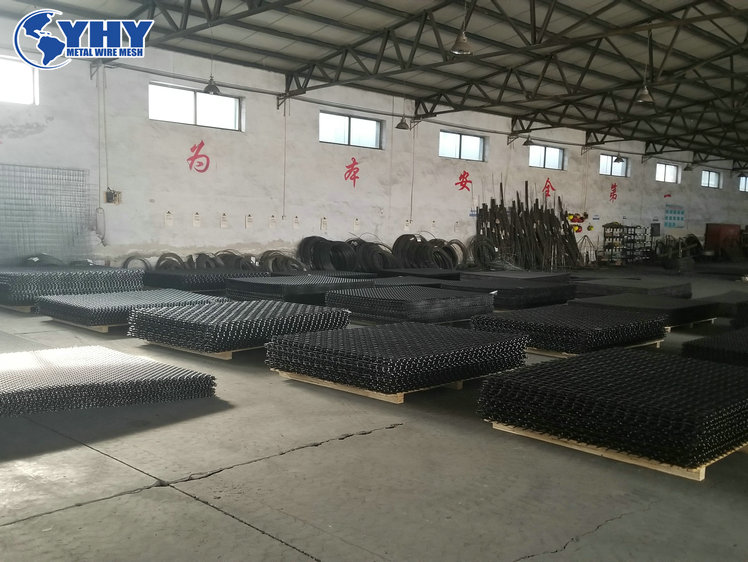

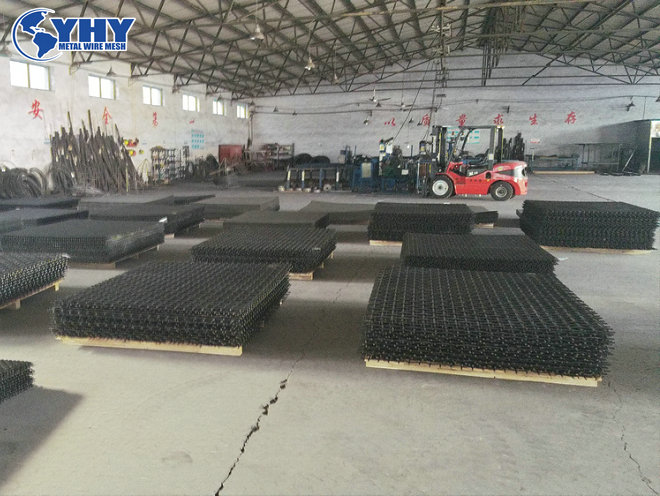

The standard package for the piece it is packaged by pallets.

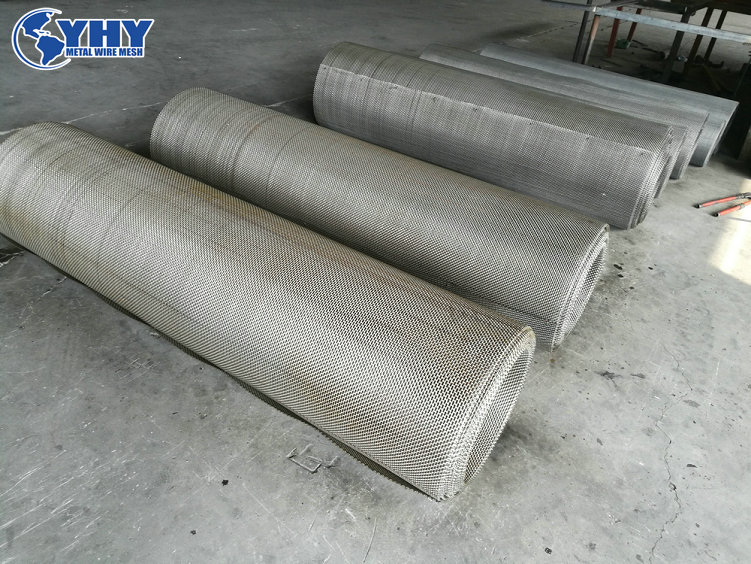

The longer piece will be loading in bulk.

The hooked screen mesh also packaged by pallets.


Application
  • 65Mn scree mesh for stons

  • Sand vibrating screen for construction

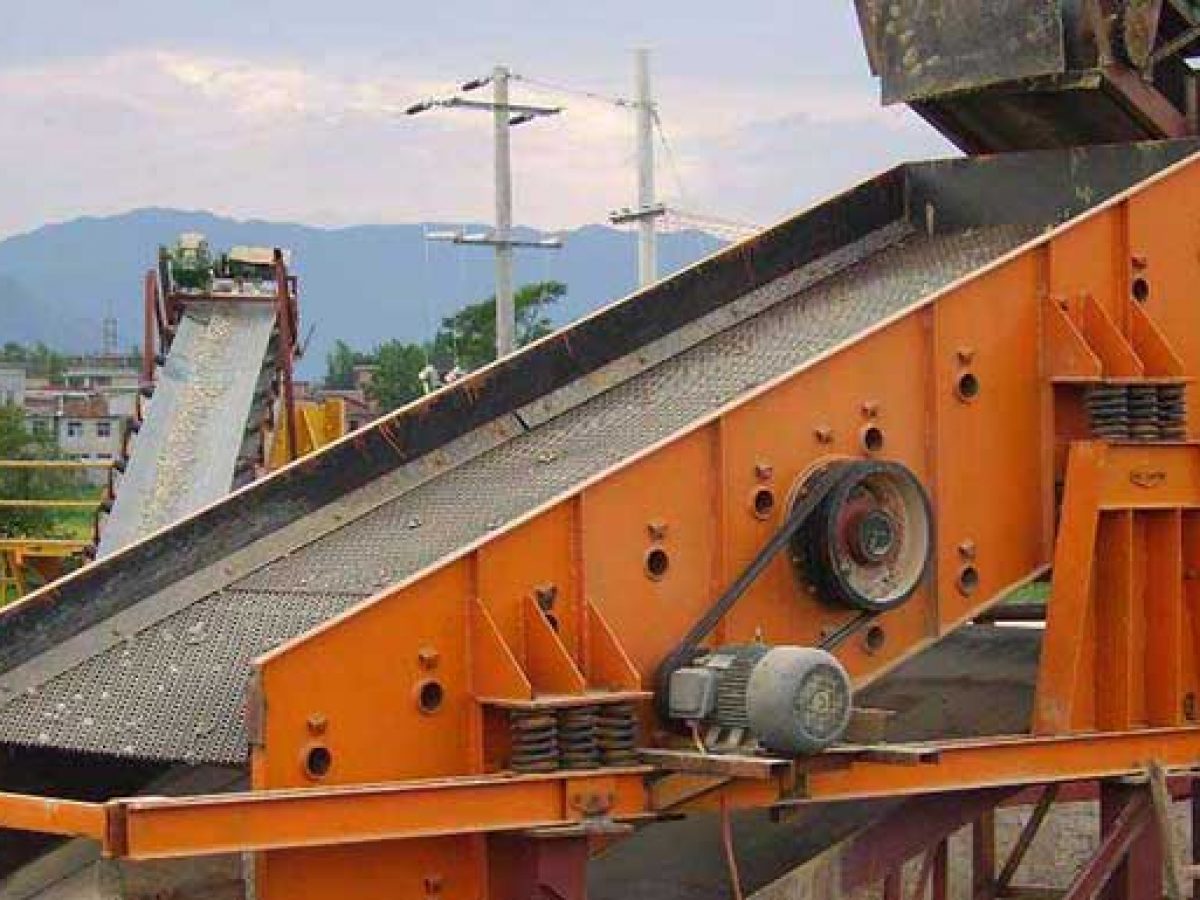

  • Mine screen

  • square screen mesh
