Anti-Fall Object Stainless Steel Rope Wire Mesh

Min Order Quantity: 100 square meters Price: 35-85 USD per square meter Sample: Free Application: The mostly using for it is:  Architecturalornament

Share:
Detail Description

SS304 Architectural Diamond Rope Wire Mesh


Architectural rope Mesh, also called rope wire mesh, similar to architectural expanded mesh and architectural ring mesh, is one type of the decorative wire mesh. Generally, the architectural rope mesh is made of stainless steel but aluminum is also available. It is a product made of high-quality raw material and weaved, stretched and stamped through a special process.  It has a durable and simple grace and is a perfect combination of modern science and art. Because of its unique flexibility and gloss, it is widely used in star hotels, cafes, shopping malls, villas, office buildings, museums, exhibition halls, cultural centers, stadiums, opera houses, flagship monopoly The facades, partitions, and ceilings of buildings such as shops are decorated inside and outside.

According to the formation of the metal architectural rope mesh, it can be classified into knot type, ferrule type, bead type, and woven type. The formation of knot mesh is that two ropes are crossed together or weaved together. While the ferrule type mesh is that two ropes are combined by ferrules with different shapes which are often made of stainless steel. And the ferrule type is mostly used in the architectural project.


Features:

Specification Form

Code

Rope Construction

Rope Diameter

Aperture

Breaking Force

Inch

mm

mm

kN

YHYRM-01

7 × 19

1/8

3.2

120 × 208

7.38

YHYRM-02

7 × 19

1/8

3.2

100 × 173

7.38

YHYRM-03

7 × 19

1/8

3.2

90 × 156

7.38

YHYRM-04

7 × 7

3/32

2.4

100 × 173

4.18

YHYRM-05

7 × 7

3/32

2.4

90 × 156

4.18

YHYRM-06

7 × 7

3/32

2.4

80 × 139

4.18

YHYRM-07

7 × 7

3/32

2.4

70 × 121

4.18

YHYRM-08

7 × 7

5/64

2.0

100 × 173

3.17

YHYRM-09

7 × 7

5/64

2.0

90 × 156

3.17

YHYRM-10

7 × 7

5/64

2.0

80 × 139

3.17

YHYRM-11

7 × 7

5/64

2.0

70 × 121

3.17

YHYRM-12

7 × 7

1/16

1.6

80 × 139

2.17

YHYRM-13

7 × 7

1/16

1.6

70 × 121

2.17

YHYRM-14

7 × 7

1/16

1.6

60 × 104

2.17

YHYRM-15

7 × 7

1/16

1.6

51 × 87

2.17

YHYRM-16

7 × 7

3/64

1.2

80 × 139

1.22

YHYRM-17

7 × 7

3/64

1.2

60 × 104

1.22

YHYRM-18

7 × 7

3/64

1.2

50 × 87

1.22

YHYRM-19

7 × 7

3/64

1.2

40 × 69

1.22



Knowledge

Special Shape Stainless Steel Wire Rope Mesh for Building DecorationFeatures:


Lightweight and high flexibility.

Stainless steel ferrule rope mesh is light, and its width, length, rope diameter, and opening size can be modified. What's more, diagonal and irregular shapes are also available. So stainless steel ferrule rope mesh is easy to install in any conditions and it is widely used in many places.

High strength, resistance to fatigue and impact.
Ferrules combine stainless steel ropes firmly, making the mesh form a strong whole. Therefore, stainless steel ferrule rope mesh is resistant to fatigue and impact.

Good softness.
The rope construction is 7 × 7 or 7 × 19, making stainless steel ferrule rope mesh very soft. Therefore, it can be curved and folded easily, which makes it effortless to transport. And this property also makes it easy to install. Above all, it will not hurt hands.

Excellent rust-resistance, recyclable and durable.
Stainless steel ferrule rope mesh is made up from 304, 316, 304L or 316L, so it is resistant to rust. Its life span can be up to more than 30 years as a result.

Outstanding perspective and grand appearance.
Stainless steel ferrule rope mesh has diamond-shaped openings and ferrules, making it have great perspectivity and a pretty appearance. Therefore, it is widely used as bird aviaries, animal enclosures, animal cages, building decoration,s and so on. And the stainless steel ferrule rope mesh itself is a big landscape.

Maintenance-free and environmentally friendly.
There is no toxic material in stainless steel ferrule rope mesh. With time going by, it will not rust and deform. Therefore, there is no need to maintain it. Once it is installed, it can be used forever.

Packaging

The stainless steel rope wire mesh package is: inside with Kraft paper then buddle plastic and outside wooden case.

We also can make customized package if you have a request

Special Shape Stainless Steel Wire Rope Mesh for Building Decoration

GET THE CATALOG

Application

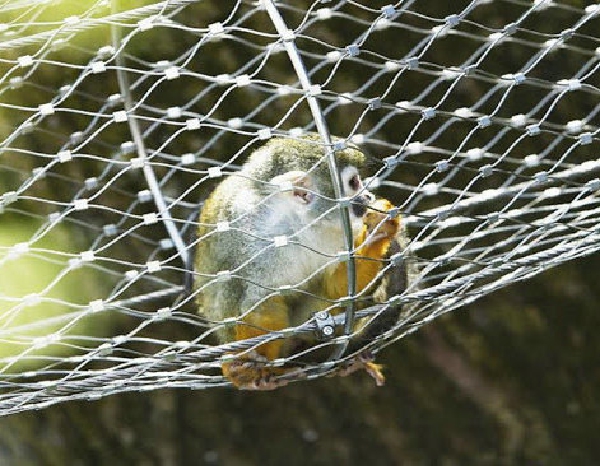

  • ZOO

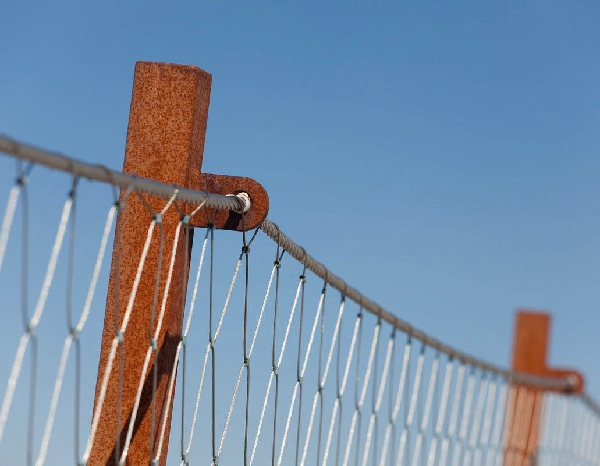

  • Balustrade

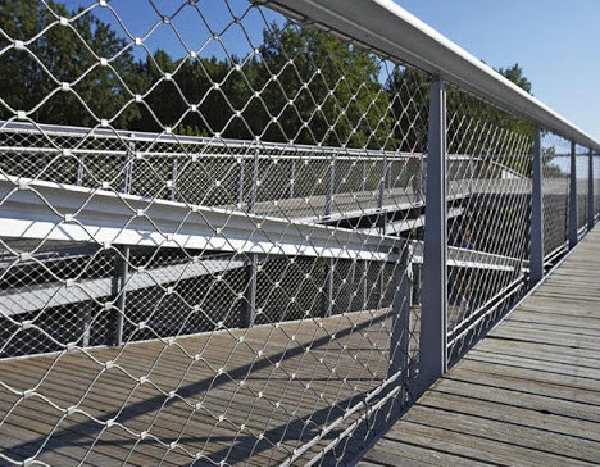

  • Bridge

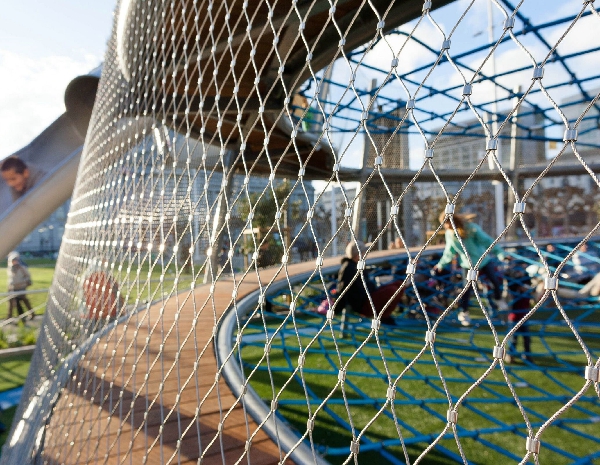

  • Playground
