SS304 Architectural Diamond Rope Wire Mesh

Min Order Quantity: 100 square meters Price: 35-85 USD per square meter Sample: Free Application: The mostly using for it is:  Architecturalornament

Share:
Detail Description

SS304 Architectural Diamond Rope Wire Mesh

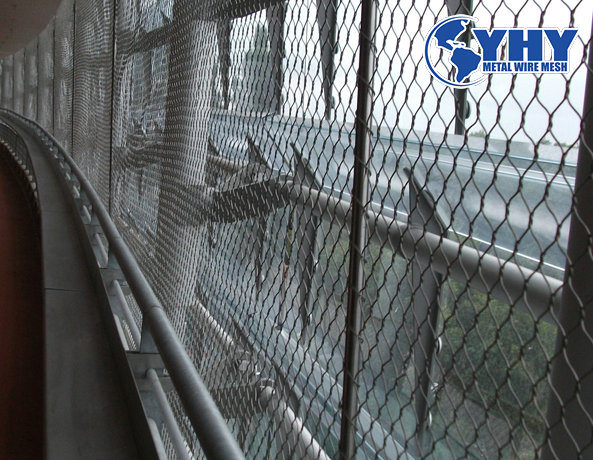

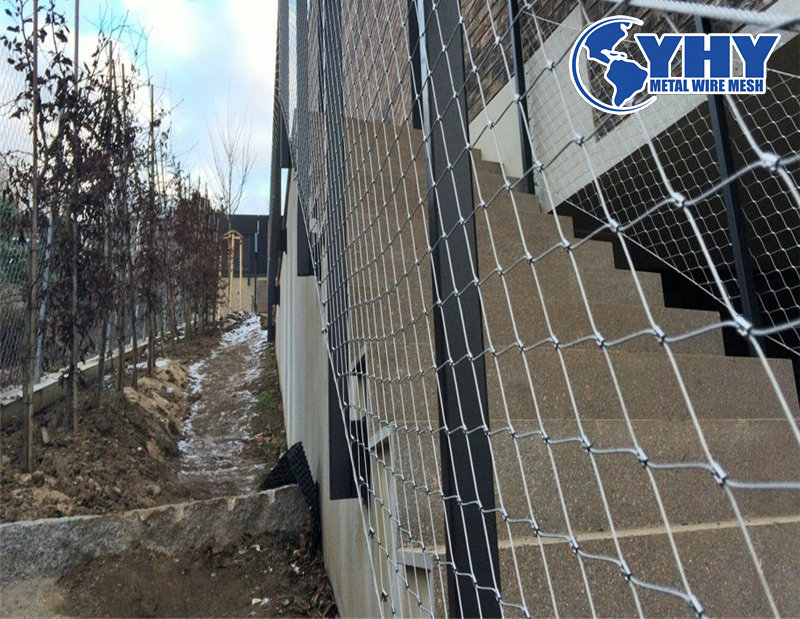

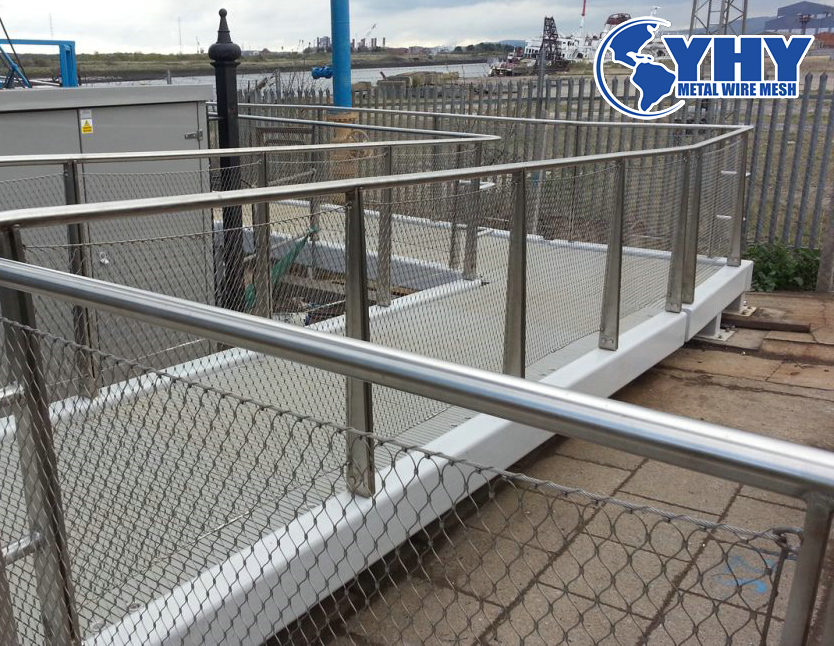

Architectural rope Mesh, also called rope wire mesh, similar to architectural expanded mesh and architectural ring mesh, is one type of the decorative wire mesh. Generally, the architectural rope mesh is made of stainless steel but aluminum is also available. It is a product made of high-quality raw material and weaved, stretched and stamped through a special process.  It has a durable and simple grace and is a perfect combination of modern science and art. Because of its unique flexibility and gloss, it is widely used in star hotels, cafes, shopping malls, villas, office buildings, museums, exhibition halls, cultural centers, stadiums, opera houses, flagship monopoly The facades, partitions, and ceilings of buildings such as shops are decorated inside and outside.

According to the formation of the metal architectural rope mesh, it can be classified into knot type, ferrule type, bead type, and woven type. The formation of knot mesh is that two ropes are crossed together or weaved together. While the ferrule type mesh is that two ropes are combined by ferrules with different shapes which are often made of stainless steel. And the ferrule type is mostly used in the architectural project.

Features:

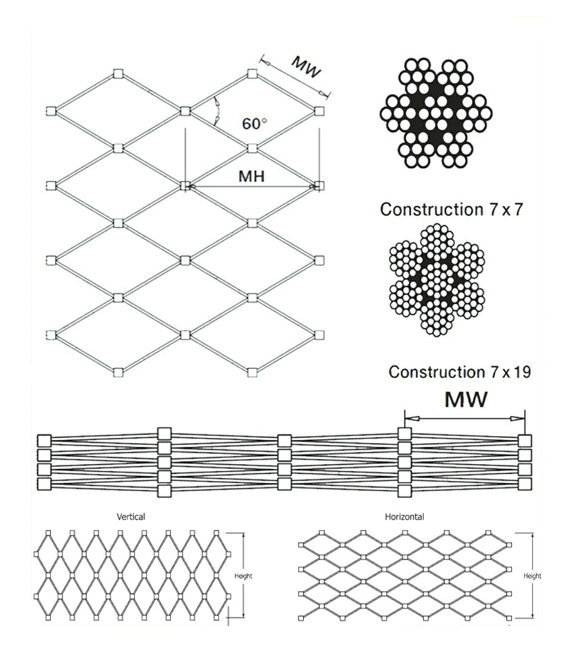

Specification Form

Code

Rope Construction

Rope Diameter

Aperture

Breaking Force

Inch

mm

mm

kN

YHYRM-01

7 × 19

1/8

3.2

120 × 208

7.38

YHYRM-02

7 × 19

1/8

3.2

100 × 173

7.38

YHYRM-03

7 × 19

1/8

3.2

90 × 156

7.38

YHYRM-04

7 × 7

3/32

2.4

100 × 173

4.18

YHYRM-05

7 × 7

3/32

2.4

90 × 156

4.18

YHYRM-06

7 × 7

3/32

2.4

80 × 139

4.18

YHYRM-07

7 × 7

3/32

2.4

70 × 121

4.18

YHYRM-08

7 × 7

5/64

2.0

100 × 173

3.17

YHYRM-09

7 × 7

5/64

2.0

90 × 156

3.17

YHYRM-10

7 × 7

5/64

2.0

80 × 139

3.17

YHYRM-11

7 × 7

5/64

2.0

70 × 121

3.17

YHYRM-12

7 × 7

1/16

1.6

80 × 139

2.17

YHYRM-13

7 × 7

1/16

1.6

70 × 121

2.17

YHYRM-14

7 × 7

1/16

1.6

60 × 104

2.17

YHYRM-15

7 × 7

1/16

1.6

51 × 87

2.17

YHYRM-16

7 × 7

3/64

1.2

80 × 139

1.22

YHYRM-17

7 × 7

3/64

1.2

60 × 104

1.22

YHYRM-18

7 × 7

3/64

1.2

50 × 87

1.22

YHYRM-19

7 × 7

3/64

1.2

40 × 69

1.22



Knowledge

SS304 Architectural Diamond Rope Wire Mesh

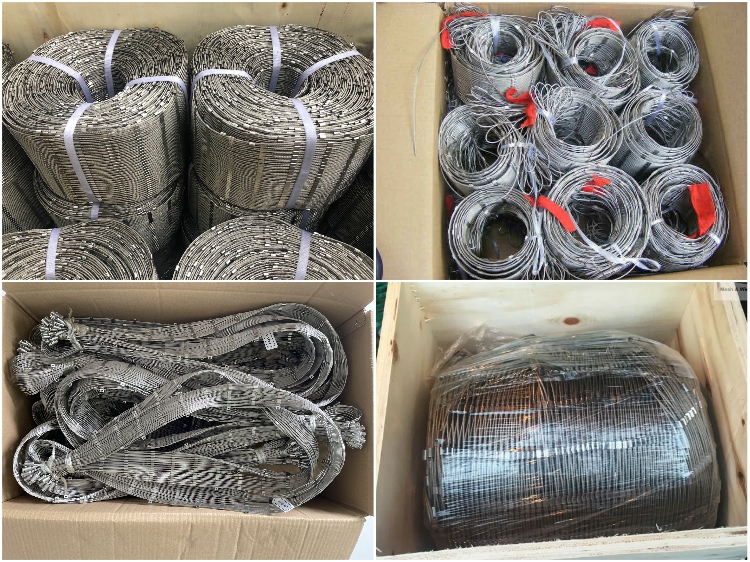

Packaging

SS304 Architectural Diamond Rope Wire Mesh

GET THE CATALOG

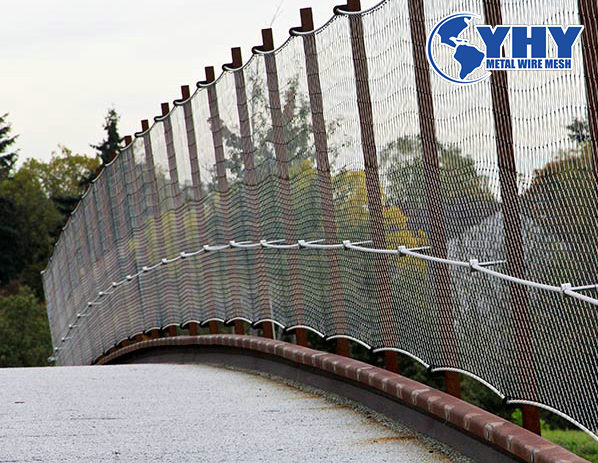

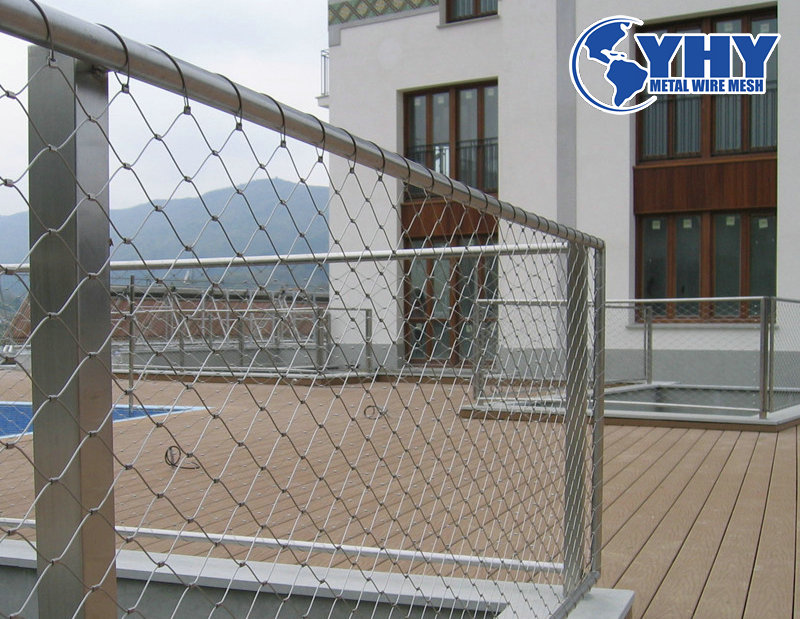

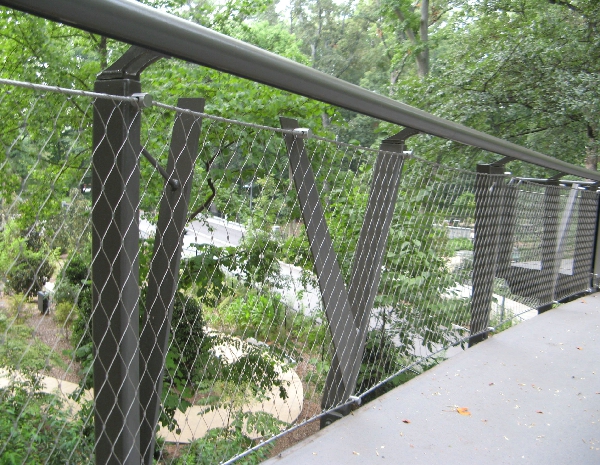

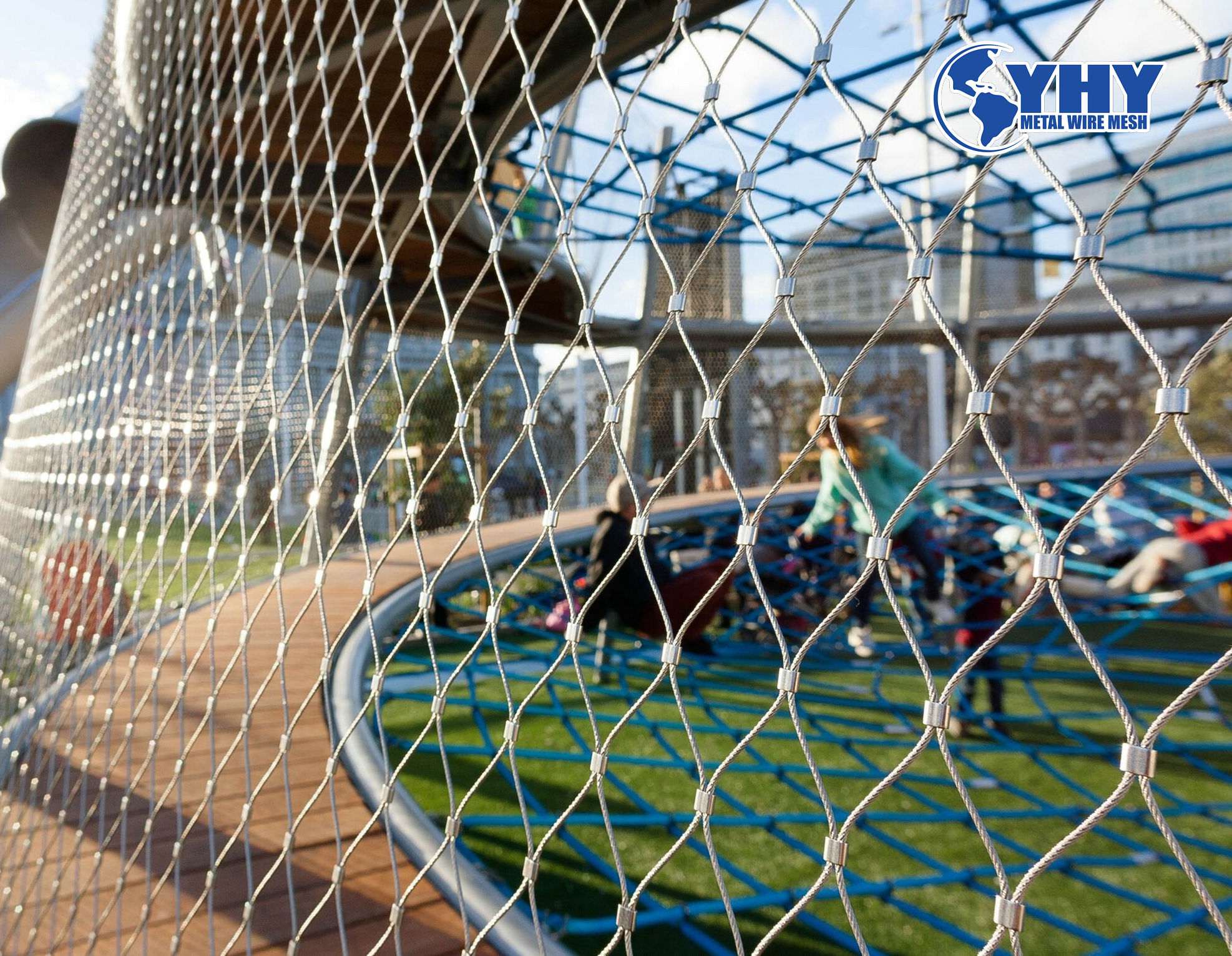

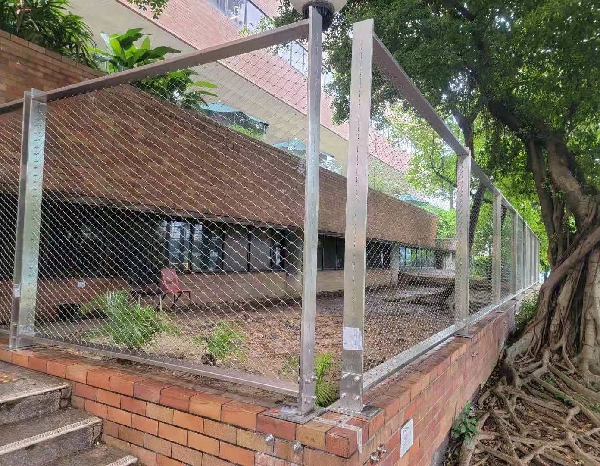

Application
