BTO-22 960mm diameter galvanized military concertina razor barbed wire

Min Order: 1 Ton Price : US $800-1,200 / Ton Supply Ability:200 Ton/Tons per Month Application:Fence Mesh Packaging Details: waterproof paper inside, weaving bag outside.

Share:
Detail description

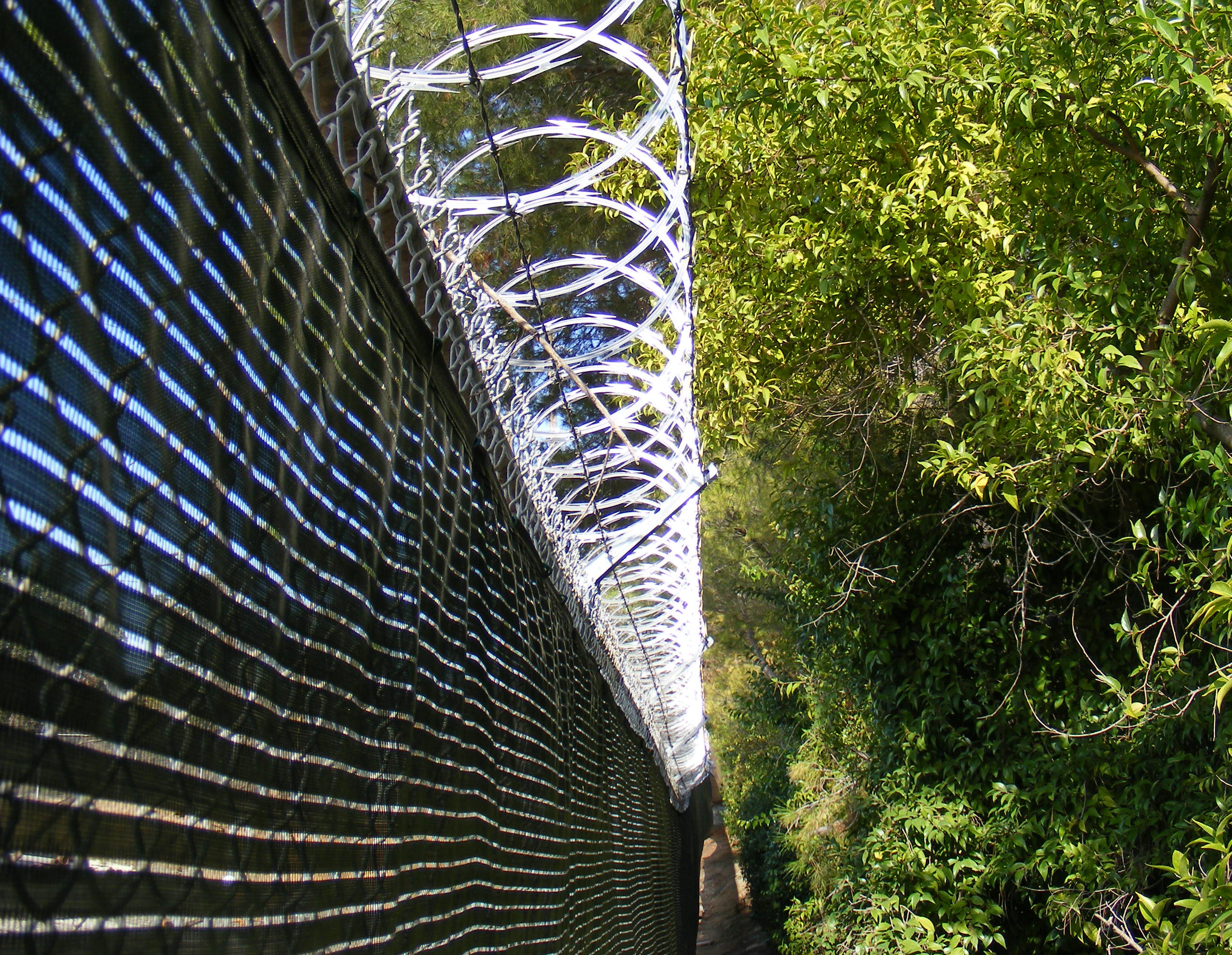

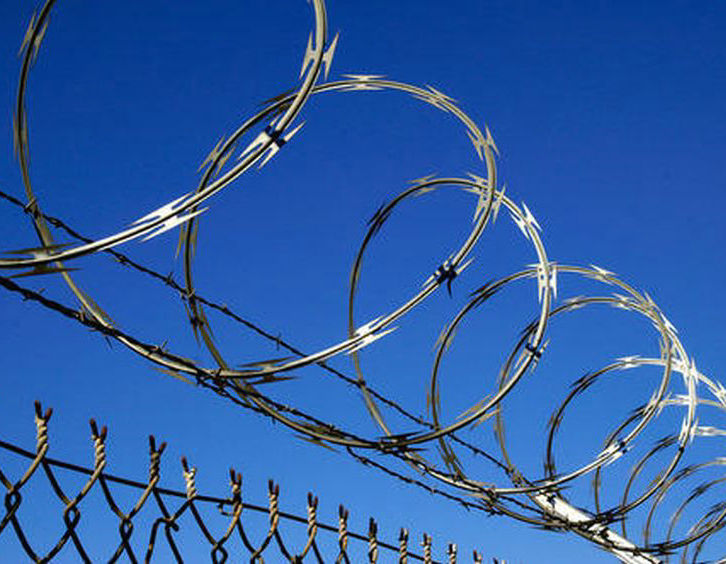

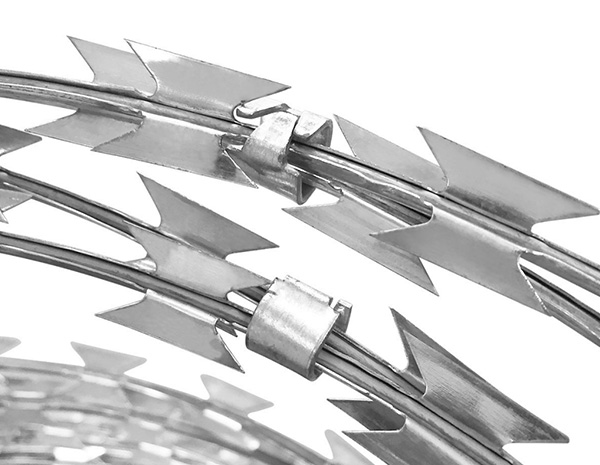

Razor barbed Wire  is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

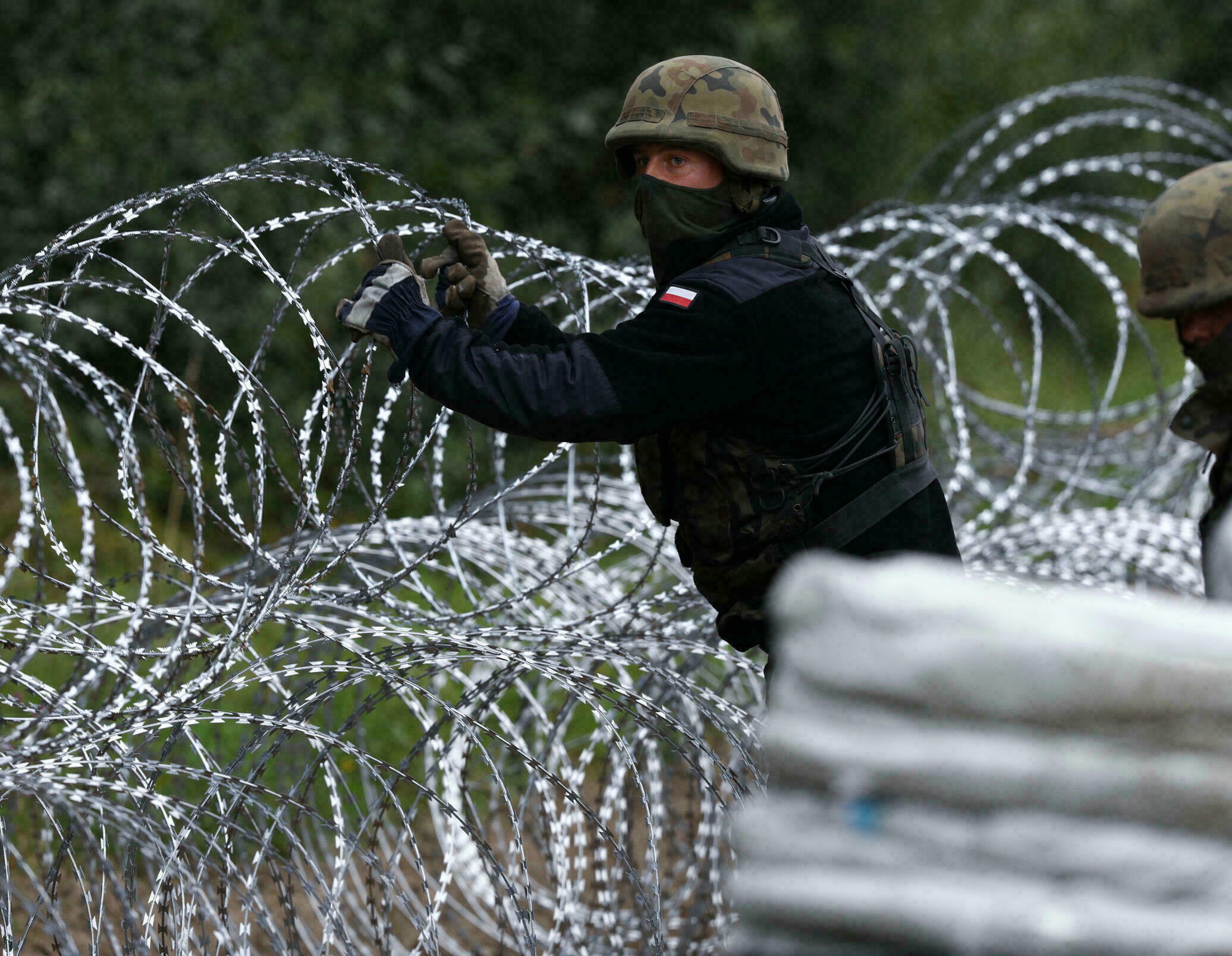

Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.


Reference   Number

Blade Style

Thickness

Wire Dia

Barb Length

Barb Width

Barb Spacing

BTO-10


0.5±.05

2.5±.1

10

13

26

BTO-12


0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18


0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22


0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28


0.5±0.05

2.5

28

15

45±1

BTO-30


0.5±0.05

2.5

30

18

45±1

CBT-60


0.6±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65


0.6±0.05

2.5±0.1

65±2

21±1

100±2

Barbed Tape Concertina (CBT); Barbed Tape Obstacle (BTO)

Standard materials are either galvanized or stainless steel.

Standard packages products are shown in the tables above, special specifications available on request


Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450mm

33

7-8M

CBT-60.65

Single coil

500mm

56

12-13M

CBT-60.65

Single coil

700mm

56

13-14M

CBT-60.65

Single coil

960mm

56

14-15M

CBT-60.65

Single coil

450mm

56

8-9M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

500mm

56

9-10M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

10-11M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

8-10M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

700mm

56

10-12M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

800mm

56

11-13M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

900mm

56

12-14M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

960mm

56

13-15M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

980mm

56

14-16M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type


Knowledge



Razor Wire

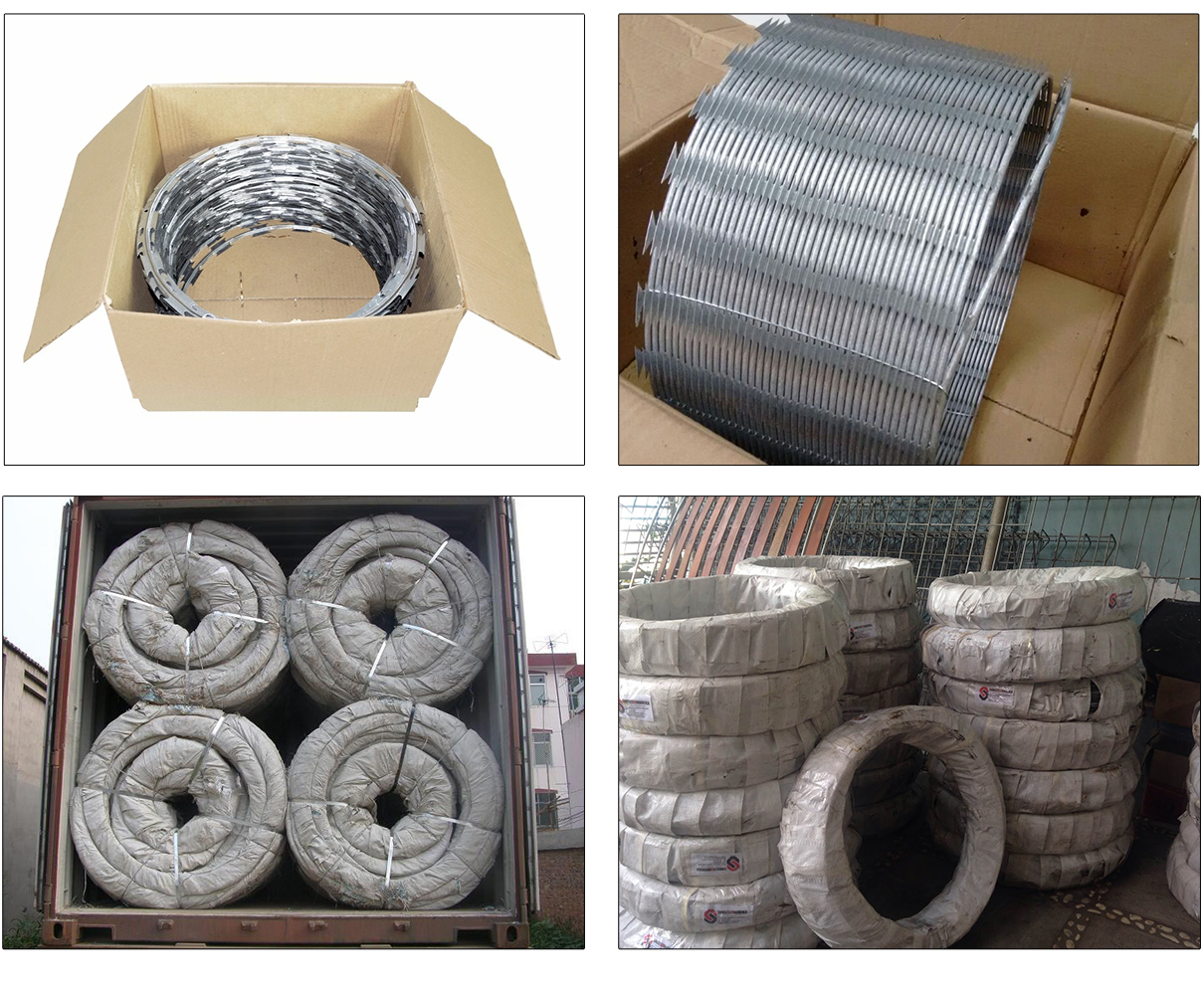

Packaging
