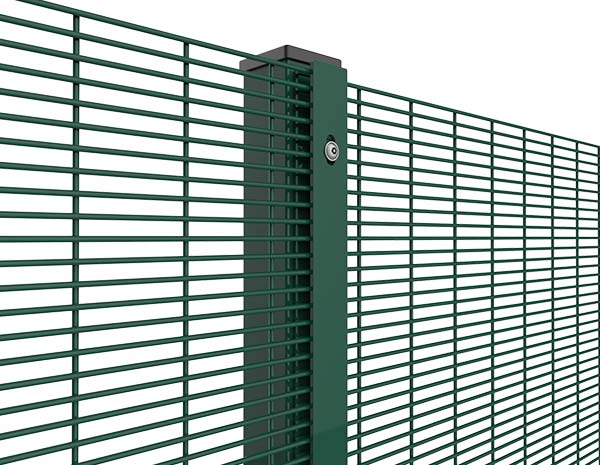

PVC Coated Anti Climb High Security 358 Welded Wire Wall Fence For Airport

Min. Order: 100 Set Price : US $80-120 / Set Supply Ability: 200000 Set/Sets per Month Feature: Easily Assembled, Eco-Friendly, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Waterproof Application: wall top security fence our anti-climb high security 358 prison mesh fence is specified by the hom

Share:
Detail description

High Security Fence is a special fencing panel also called anti climb fence. With professional structure designed for high security environments. High Security Fence is extensively used when dependable space is paramount, It is designed to provide security and protection for industrial and commercial properties and public utilities. As well, it is suitable for military, airport, prison or security units, if together with electronic alarm and detection stems.

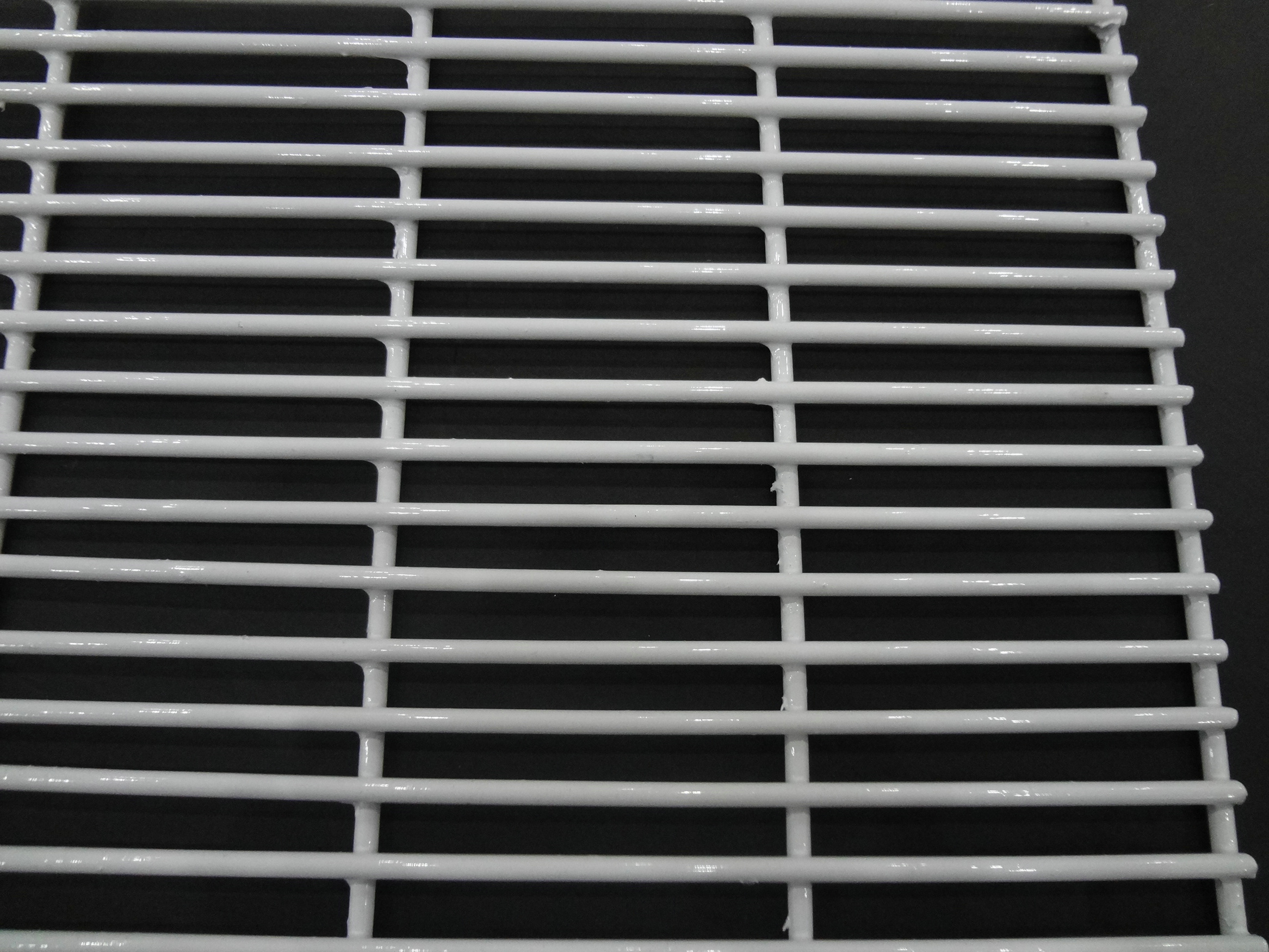

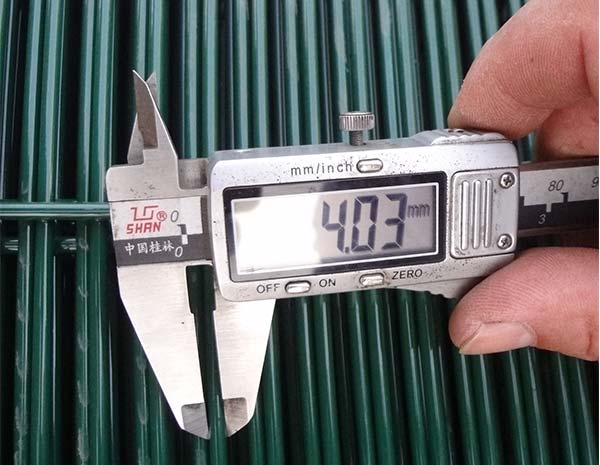

FeatureHigh security fence is with best value for performance, durability and appearance.'358' comes from its measurements3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia: 4mm (Gauge 8) while in recently years, there are also customers ask for 3510 fence which equates to 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia: 3mm (Gauge 10). 358 security fence is welded with high quality carbon steel wire, High weld strength at each intersection makes the fence strong durable and with below features:


ANTI-CLIMBMore small openings, no toe or finger holds.no climb and penetrate.


ANTI-CUTRobust wire and welded joints make it impossible cutting by use of conventional bolt or wire cutters.Good viewing visibility GOOD VIEWING VISIBILITY.In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewing head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.


DURABLELow maintenance and long life resulting from high quality


MeshWire ThicknessSurface TreatmentPanel WidthHeight
76.2x12.7
mm
Horizontal wire:3.0 ,3.5,4.0mm
Vertical wire :4.0mm
Galvanized and Electrostatic polyester
coated or Hot dipped galvanized
2.50mOr
2.20m
1800mm
2000mm
2100mm
2200mm
2400mm
2500mm
3000mm

FENCE HEIGHT

MESH SIZE(HxW)

MESH WEIGHT(kg)

1.27m

     1270 x 2515   mm

29.1 kg

2.4m

2400 x 2515 mm

55.5 kg

2.7m

2700 x 2515 mm

62.5 kg

3.0m

3000 x 2515 mm

69.5 kg

3.3m

3300 x 2515 mm

76.4 kg

3.6m

3600 x 2515 mm

83.4 kg

4.0m

4000 x 2515 mm

92.6 kg

4.5m

4500 x 2515 mm

104.2 kg

4.8m

4800 x 2515 mm

111.1 kg

5.2m

5200 x 2515 mm

120.4 kg

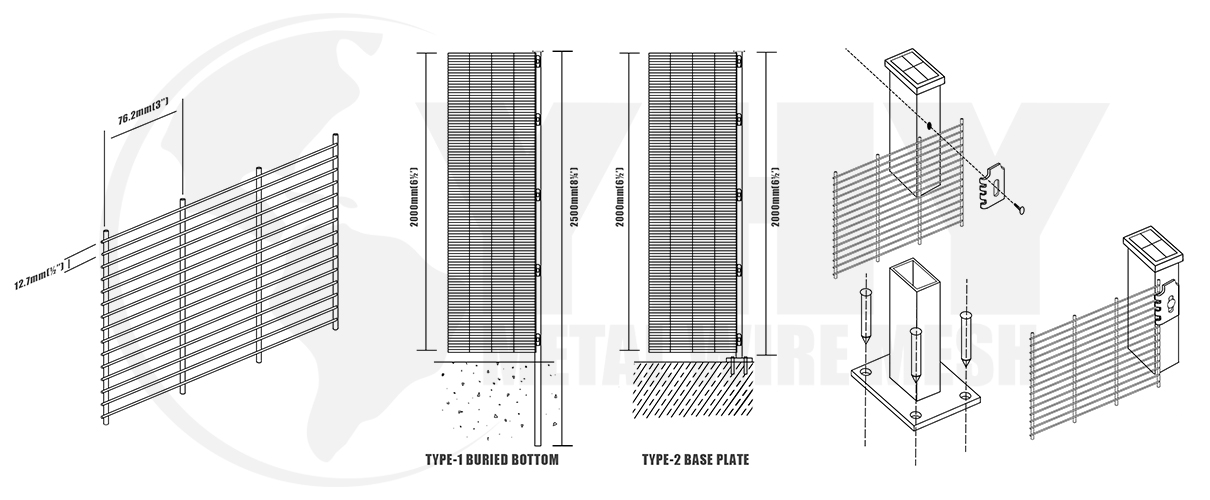

C post

62mmx83mmx3mm

round post

outside diameter:80mmx3mm

rectangular post

60mmx80mmx3mm,60mmx120mmx3mm

post length

on request(normal 2.3mm-4m)

material

square steel pipe,round steel pipe,C type steel

finished

hot dipped galvanized,pvc coated

polyester painting color

Any RAL color (dark green, black, ect.)


Knowledge

High Security Wire Fence

Packaging

High Security Wire Fence
