Twin Wire 8/6/8 Fencing Mesh Panel /Double Wire Mesh wrought iron style fence

Min. Order: 50 Set Price: US $25.99-49.99 / Set Supply Ability:500 Set/Sets per Week Feature: Easily Assembled, Eco-Friendly, Waterproof Packaging Details: 1. fence panel : plastic film + wood/metal pallet post : plastic bag + wood/metal accessories : plastic bag + cartons

Share:
Detail description

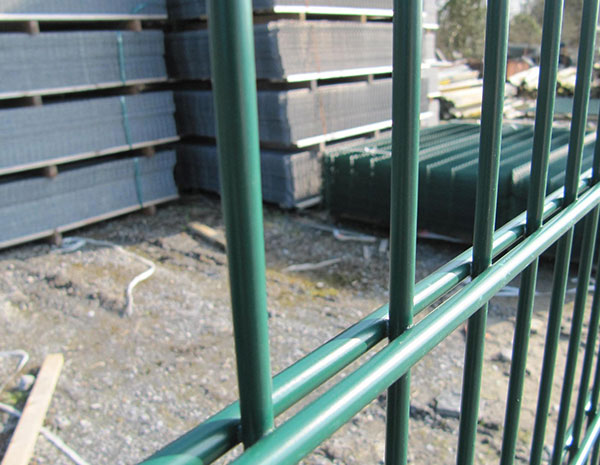

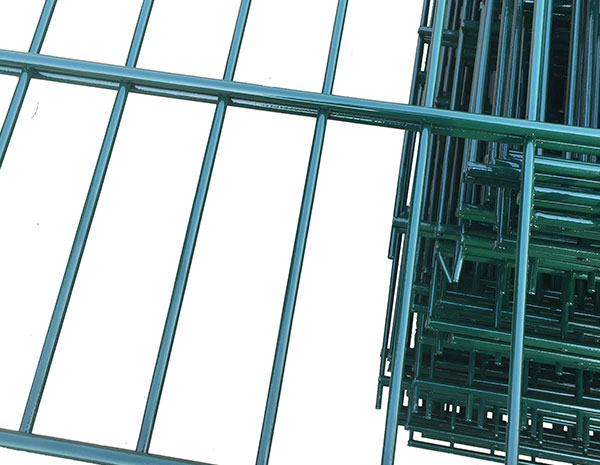

Twin Wire 8/6/8 Fencing Mesh Panel

Double Wire Mesh welding style fence

Using high-quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1.8MM*2+6MM*1. It obtains high strong powers to resist the construction.

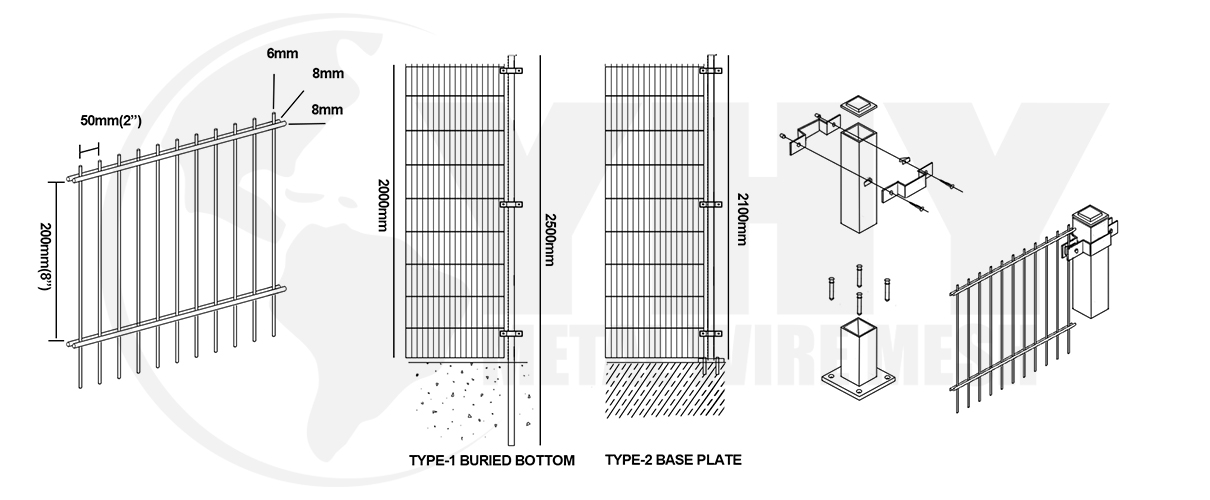

Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.


Post:
This system usually chooses Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm) with the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.


Fastenings:

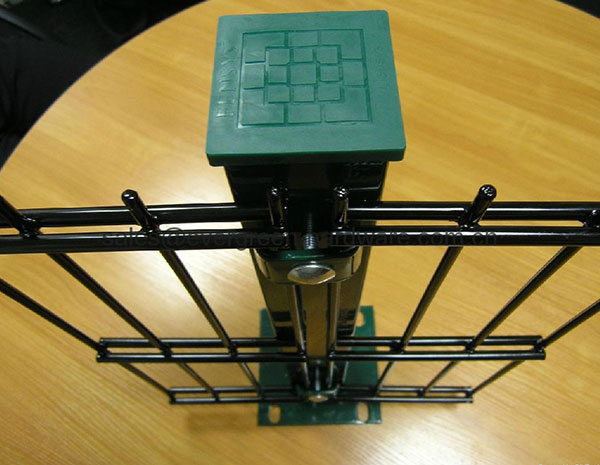

The panels and posts are joined together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special client's requests.


Application:
Boundary and anti-intruder


Type A -(6/5/6)


Mesh   size

Wire   thickness

Height

width

coating

YHY-01

50x200

1xø5 mm   Vertical wire & 2xø6 mm Horizontal wire



630

2500













Galvanised   and Electrostatic

Polyester Coated



YHY-02

55x200

830

2500

1030

2500

1230

2500

1430

2500

1630

2500

1830

2500/2750/3000

2030

2500/2750/3000

2230

2500/2750/3000

2430

2500/2750/3000

2830

2200/2300



Type B-(8/6/8)



Mesh   size

Wire   thickness

Height

width

coating

YHY-01

50x200

1xø6 mm   Vertical wire& 2xø8 mmHorizontal wire



630

2500







Galvanised   and Electrostatic

Polyester Coated





YHY-02

55x200

830

2500

1030

2500

1230

2500

1430

2500

1630

2500

1830

2500/2750/3000

2030

2500/2750/3000

2230

2500/2750/3000

2430

2500/2750/3000

2830

2200/2300

Knowledge

Double Wire Fence

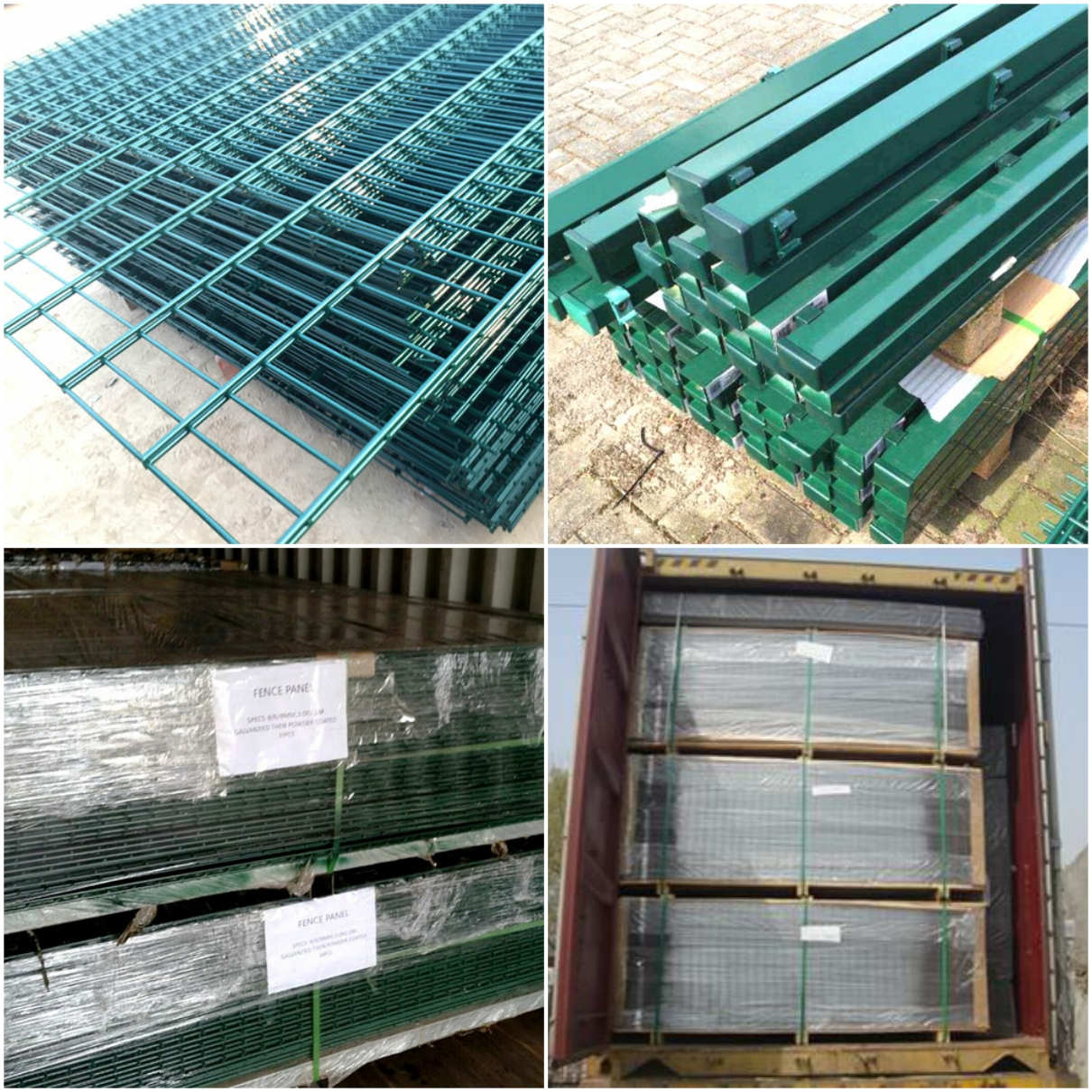

Packaging
