Min Order Quantity: 200 pcs Price: 16 USD per piece Sample: Free Application: The mostly using for it is: Architectural ornament punching mesh and sift screen

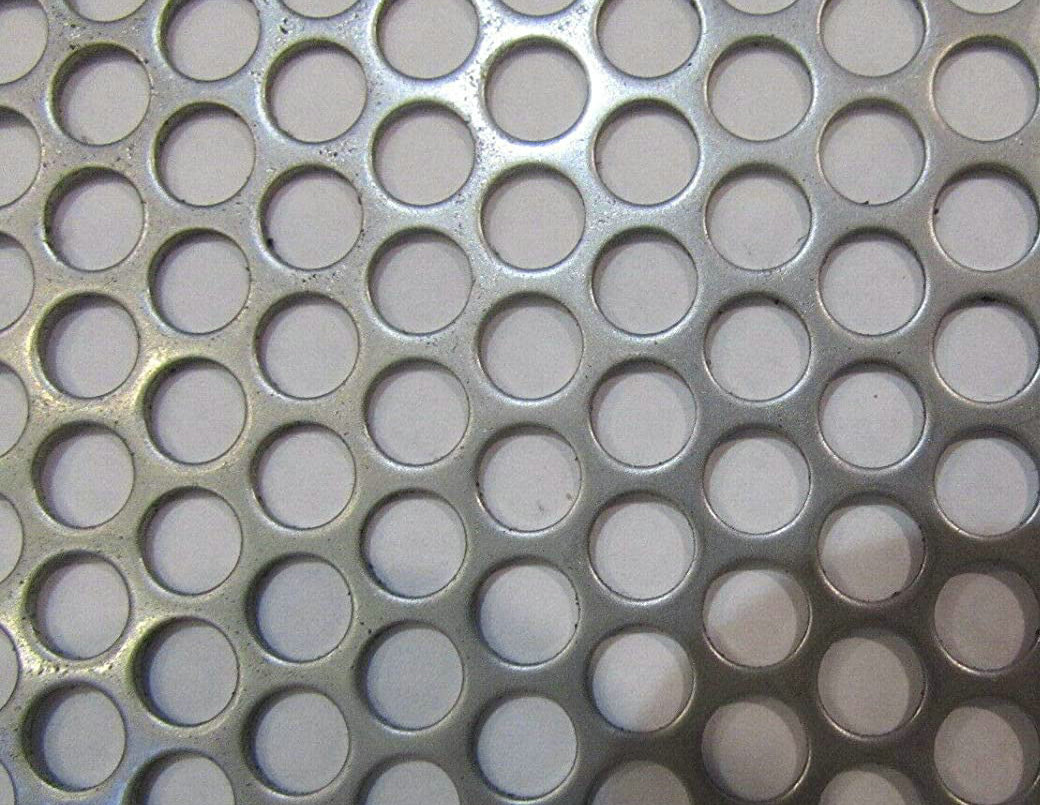

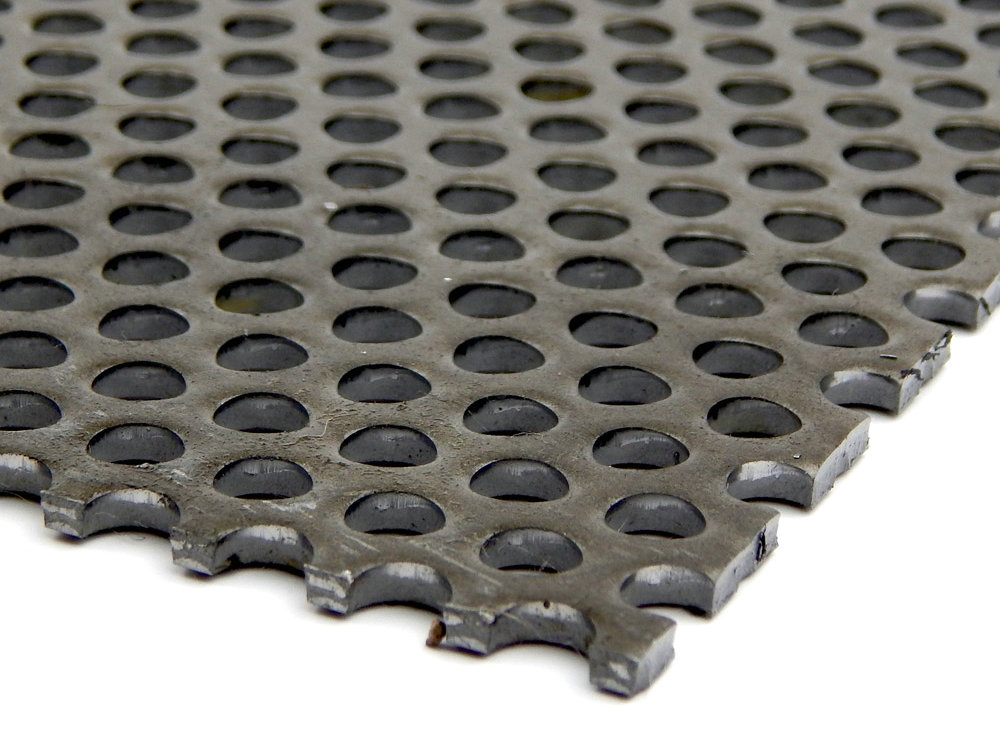

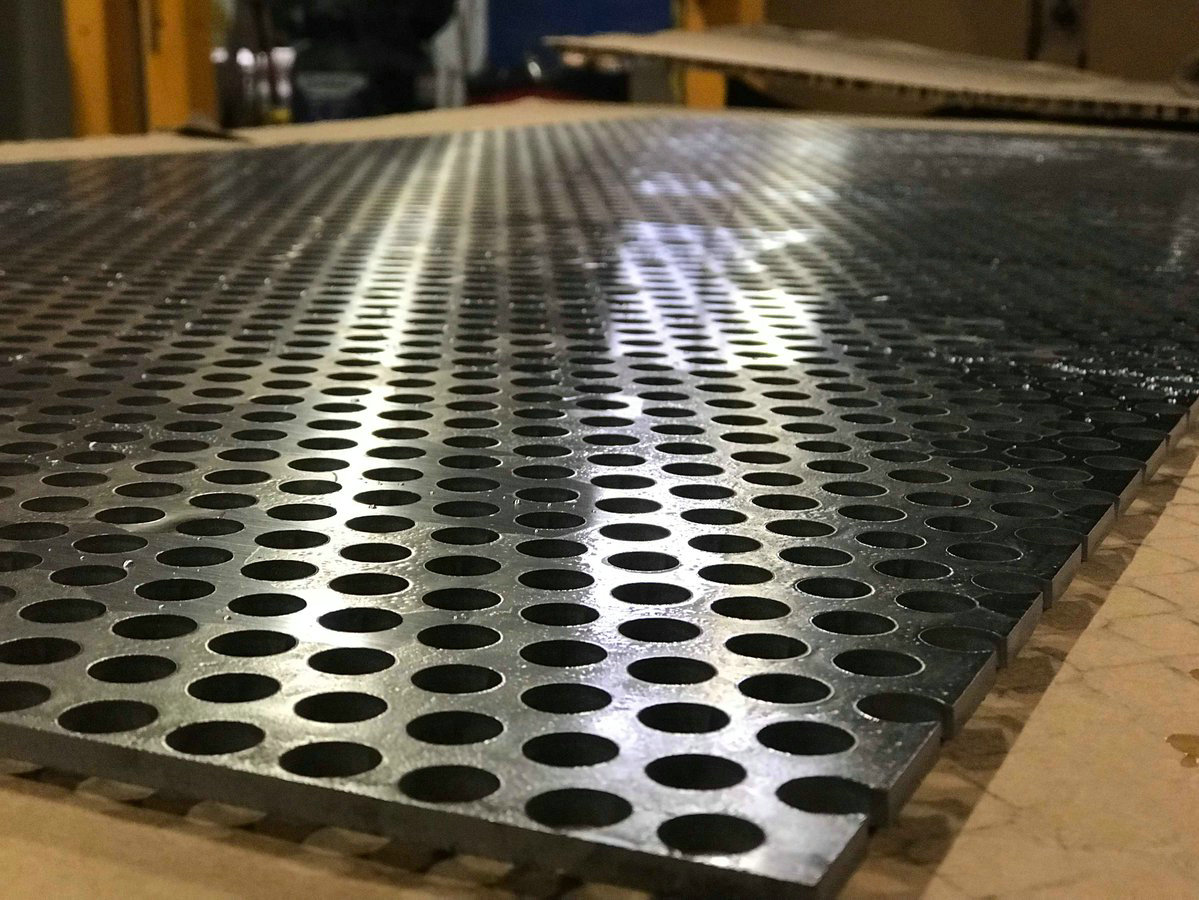

Perforated mesh refers to punching different shapes of holes on the same material to meet different needs. It can be used for environmental noise control barriers in highways, railways, subways, and other transportation and municipal facilities that cross urban areas, sound insulation panels for sound insulation and noise reduction of building walls, generator rooms, factory buildings, and other noise sources.
Material: Steel, Aluminium, Stainless steel

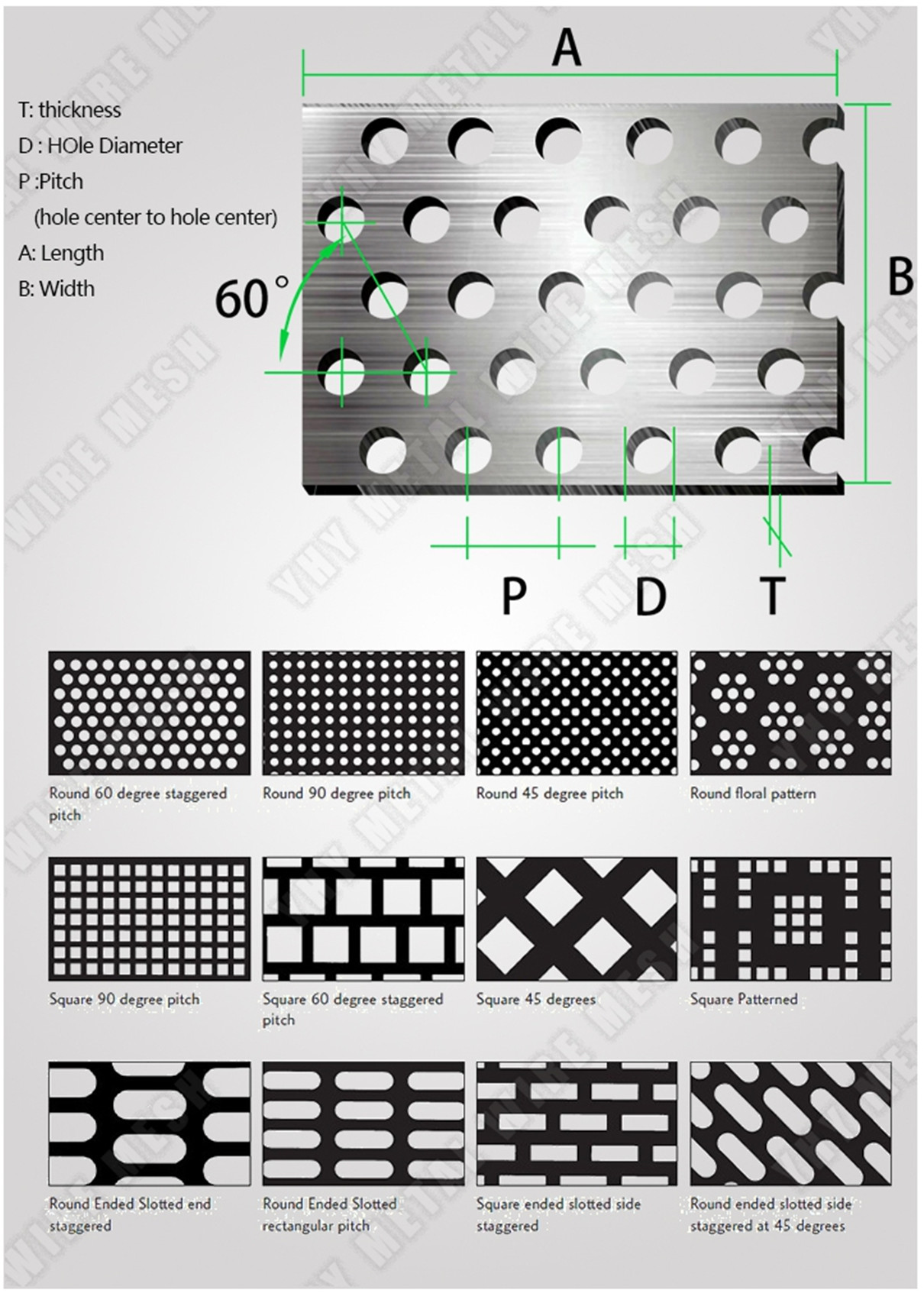

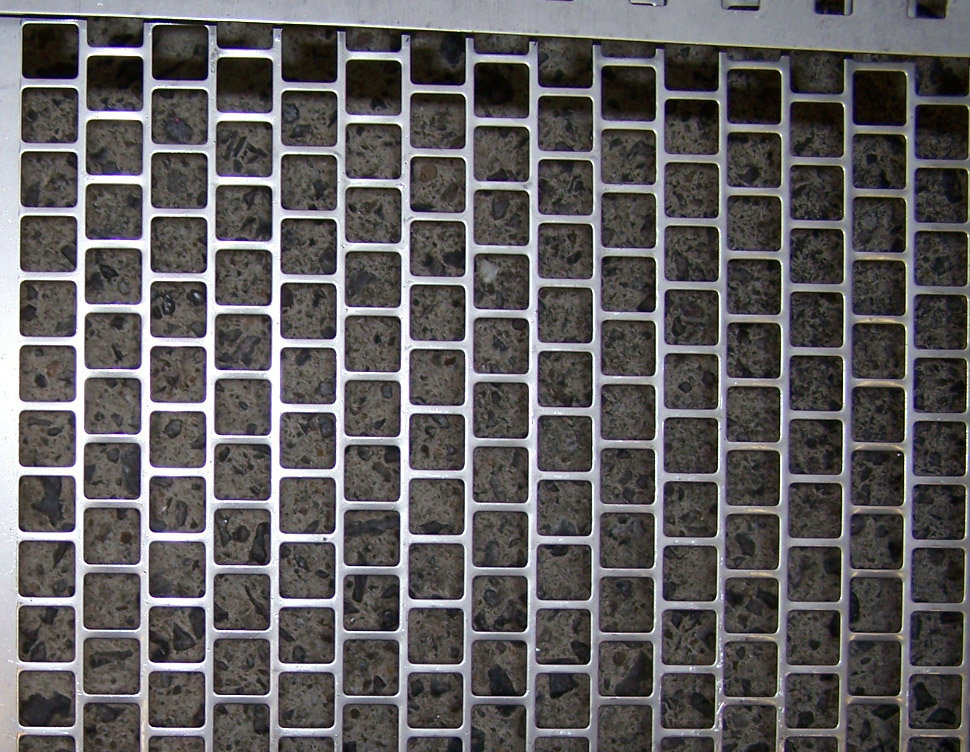

Hole Shape: Rectangular hole, square hole, diamond hole, round hole, hexagon hole, etc.
Thickness: 0.3-12.0mm
Mesh size: 1220*2440mm,1200*2400mm,1000*2000mm or customized
Surface treatment: Powder coated, Fluorocarbon spraying, Polishing
HOLE | CENTRES | GAUGE / PLATE THICK. | OPEN AREA |
.020" RD | .045" Stag | 26 | 18% |
1/32" RD | 1/16" Stag | 22 | 23% |
3/64" RD | 5/64" Stag | 24 | 33% |
3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
1/16" RD | 3/32"Stag | 22 thru 16 | 40% |
1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
3/32" RD | 3/16" Stag | 24 | 23% |
.117 RD | 5/32" Stag | 18 | 51% |
1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
1/8" RD | 1/4" Stag | 14, 13 | 23% |
9/64" RD | 3/16" Stag | 18 | 51% |
5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
17/64" RD | 5/16" Stag | 20 | 66% |
5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% |
3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
1/2" RD | 3/4" Stag | 16 | 40% |
5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
1-1/2" RD | 2" Stag | 1/4" | 51% |
2" RD | 2-1/2" Stag | 1/4" | 58% |
2-1/2" RD | 3" Stag | 3/16" | 63% |
3" RD | 3-1/2" Stag | 3/16" | 67% |
4" RD | 4-1/2" Stag | 10 | 72% |
Feature:
Easy to process and shape
Can be painted or polished
Easy to install
Beautiful appearance
Plates of various thicknesses
Multiple choices of aperture and arrangement
Good sound absorption
Light weight
Long service life
Accurate dimensions

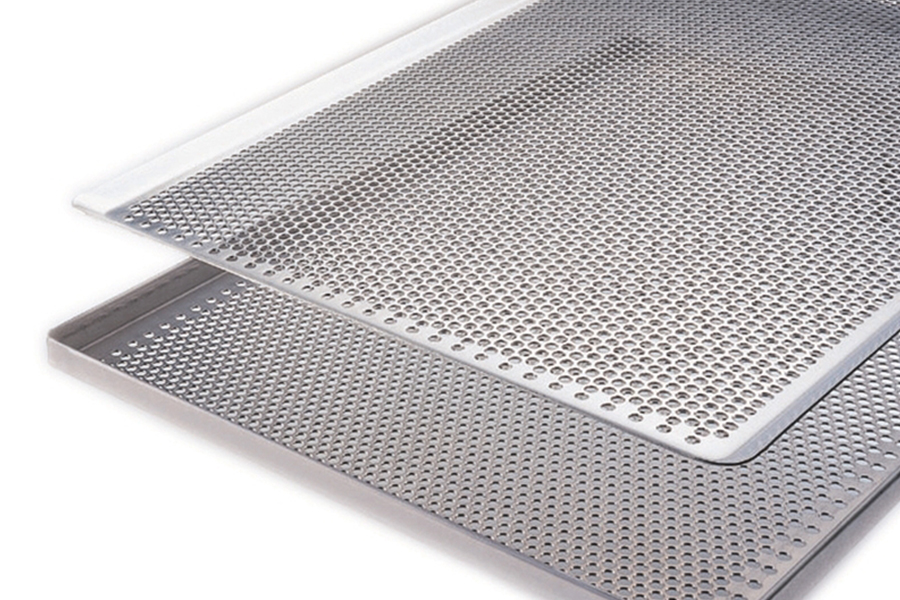

Aluminum Perforated Baking Sheet Tray

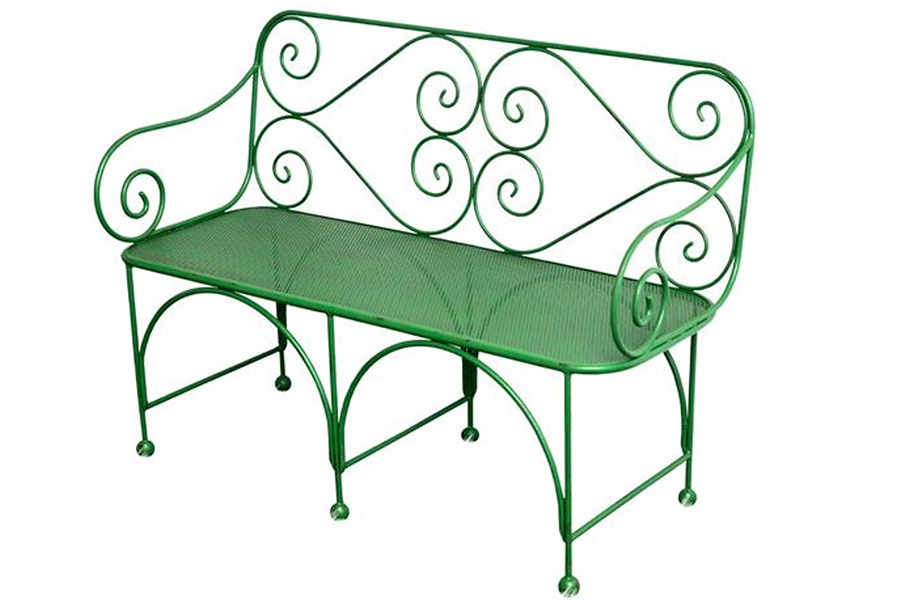

garden chair

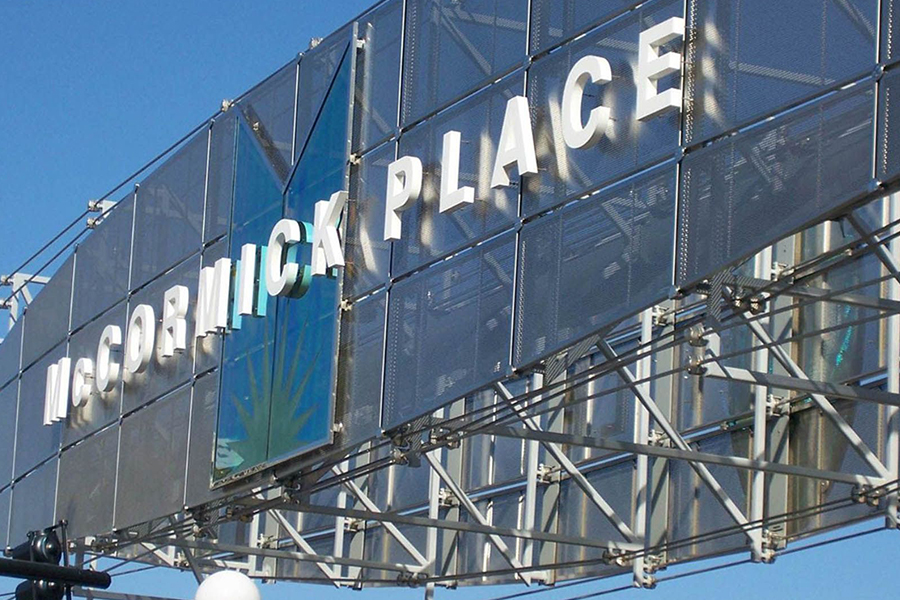

perfoated metal signage
