Different hole shape perforated metal sheet

Min Order Quantity: 200 pcs Price: 16 USD per piece Sample: Free Application: The mostly using for it is:  Architectural ornament punching mesh and sift screen

Share:
Detail Description

Perforated mesh refers to punching different shapes of holes on the same material to meet different needs. It can be used for environmental noise control barriers in highways, railways, subways, and other transportation and municipal facilities that cross urban areas, sound insulation panels for sound insulation and noise reduction of building walls, generator rooms, factory buildings, and other noise sources.



Material: Steel, Aluminium, Stainless steel

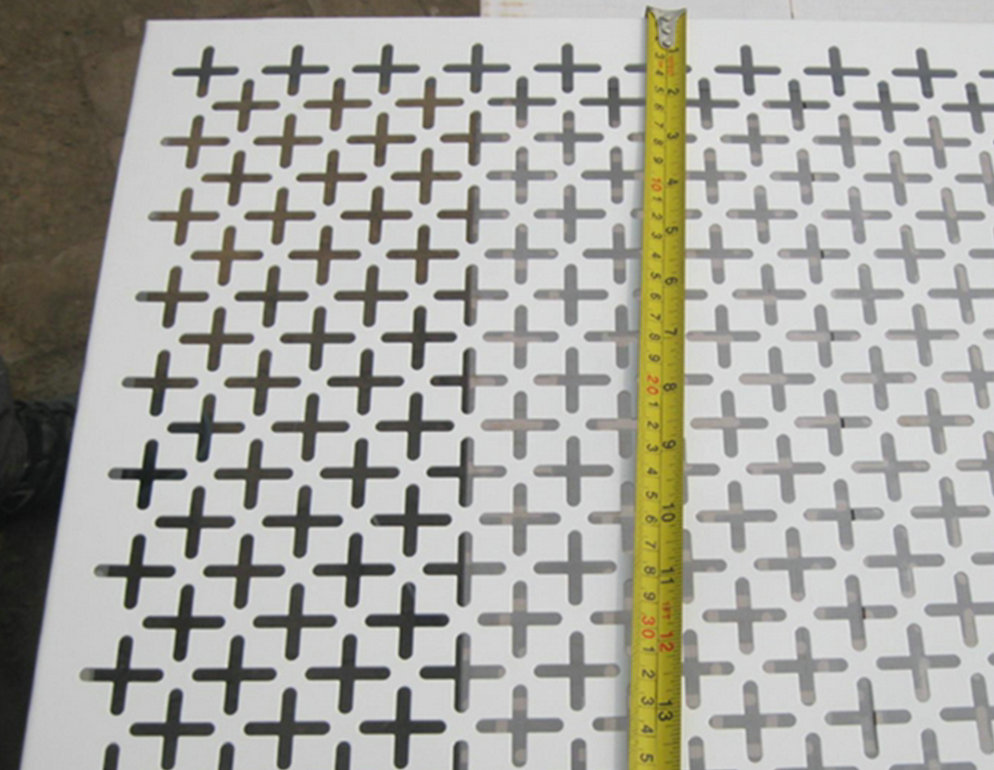

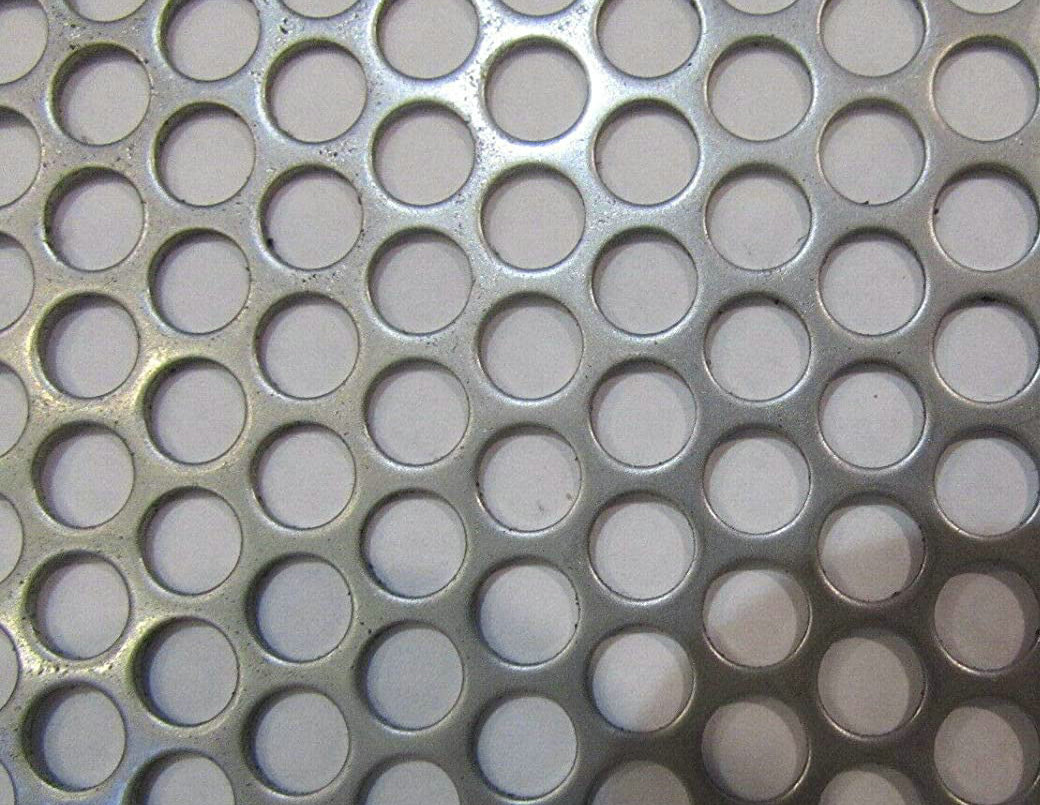

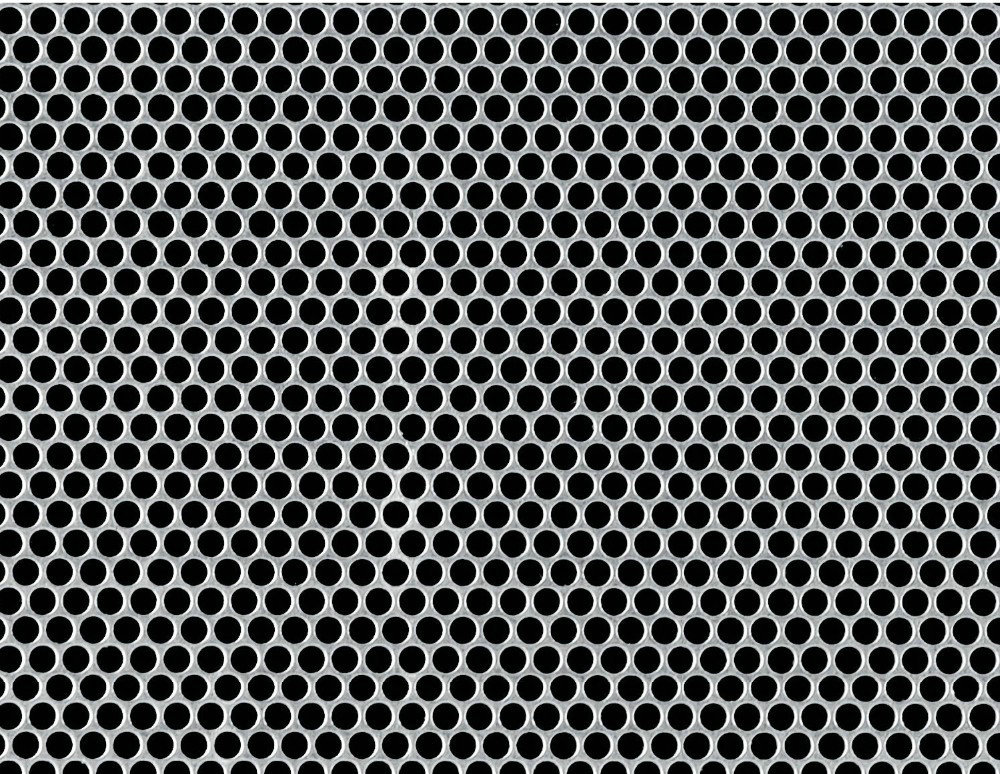

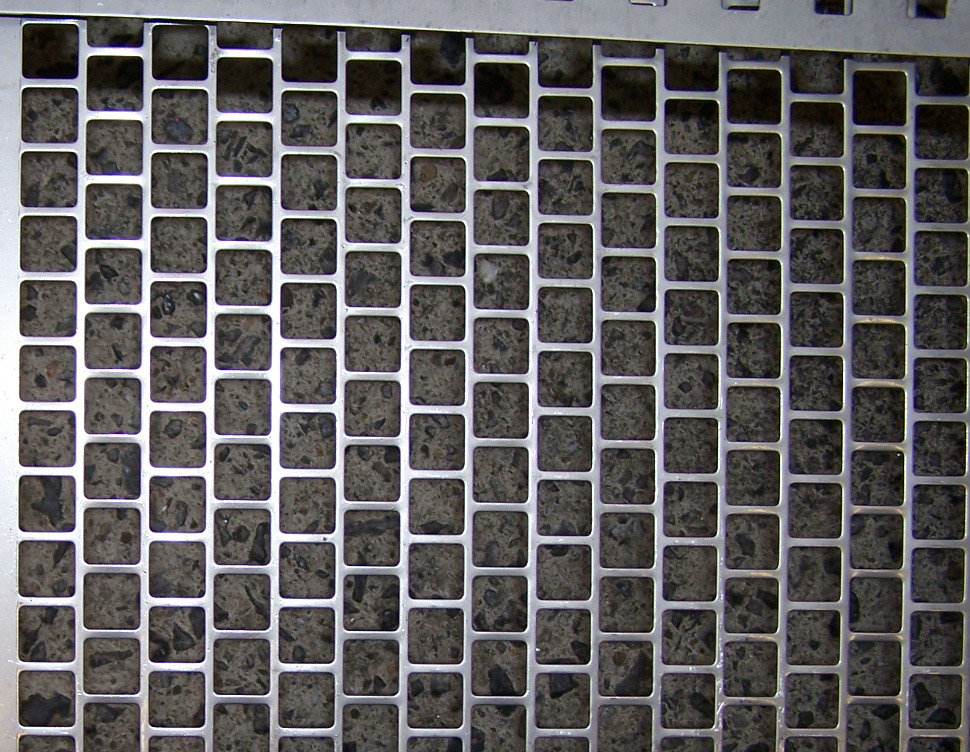

Hole Shape: Rectangular hole, square hole, diamond hole, round hole, hexagon hole, etc.



Thickness: 0.3-12.0mm



Mesh size: 1220*2440mm,1200*2400mm,1000*2000mm or customized



Surface treatment: Powder coated, Fluorocarbon spraying, Polishing




HOLE

CENTRES

GAUGE / PLATE

THICK.

OPEN AREA

.020" RD

.045" Stag

26

18%

1/32" RD

1/16" Stag

22

23%

3/64" RD

5/64" Stag

24

33%

3/64" RD

3/32" Stag

22 thru 18

23%

1/16" RD

3/32"Stag

22 thru 16

40%

1/16" RD

7/64" Stag

20 thru 16

30%

1/16" RD

1/8" Stag

26 thru 16

23%

5/64" RD

1/8" Stag

22 thru 14

35%

3/32" RD

5/32" Stag

24 thru 14

33%

3/32" RD

3/16" Stag

24

23%

.117 RD

5/32" Stag

18

51%

1/8" RD

3/16" Stag

24 thru 11

40%

1/8" RD

7/32" Stag

14 thru 12

30%

1/8" RD

1/4" Stag

14, 13

23%

9/64" RD

3/16" Stag

18

51%

5/32" RD

3/16" Stag

22 thru 16

63%

5/32" RD

1/4" Stag

20 thru 10

35%

3/16" RD

7/32" Stag

22 thru 16

67%

3/16" RD

1/4" Stag

24 thru 12

51%

3/16" RD

5/16" Stag

10, 3/16"

33%

3/16" RD

3/8" Stag

14 thru 10

23%

1/4" RD

5/16" Stag

20 thru 16

58%

1/4" RD

3/8" Stag

26 thru 1/4"

40%

17/64" RD

5/16" Stag

20

66%

5/16"RD

7/16" Stag

20 thru 1/4"

46%

3/8" RD

9/16" Stag

20 thru 1/4"

40%

1/2" RD

11/16" Stag

20 thru 1/4"

48%

1/2" RD

3/4" Stag

16

40%

5/8" RD

7/8" Stag

10 thru 1/4"

46%

3/4" RD

1" Stag

16 thru 1/4"

51%

1" RD

1-3/8" Stag

10 thru 1/4"

48%

1-1/4" RD

1-5/8" Stag

1/4"

54%

1-1/2" RD

2" Stag

1/4"

51%

2" RD

2-1/2" Stag

1/4"

58%

2-1/2" RD

3" Stag

3/16"

63%

3" RD

3-1/2" Stag

3/16"

67%

4" RD

4-1/2" Stag

10

72%


Feature:


Easy to process and shape

Can be painted or polished

Easy to install

Beautiful appearance

Plates of various thicknesses

Multiple choices of aperture and arrangement

Good sound absorption

Light weight

Long service life

Accurate dimensions

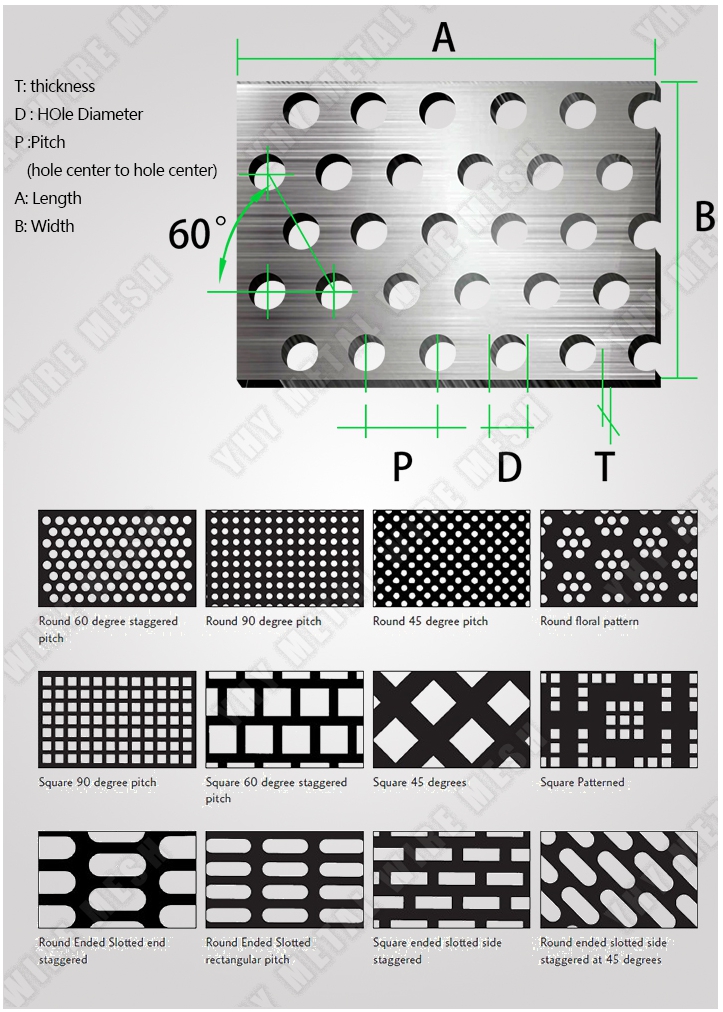

Knowledge

Different hole shape perforated metal sheetDifferent hole shape perforated metal sheet

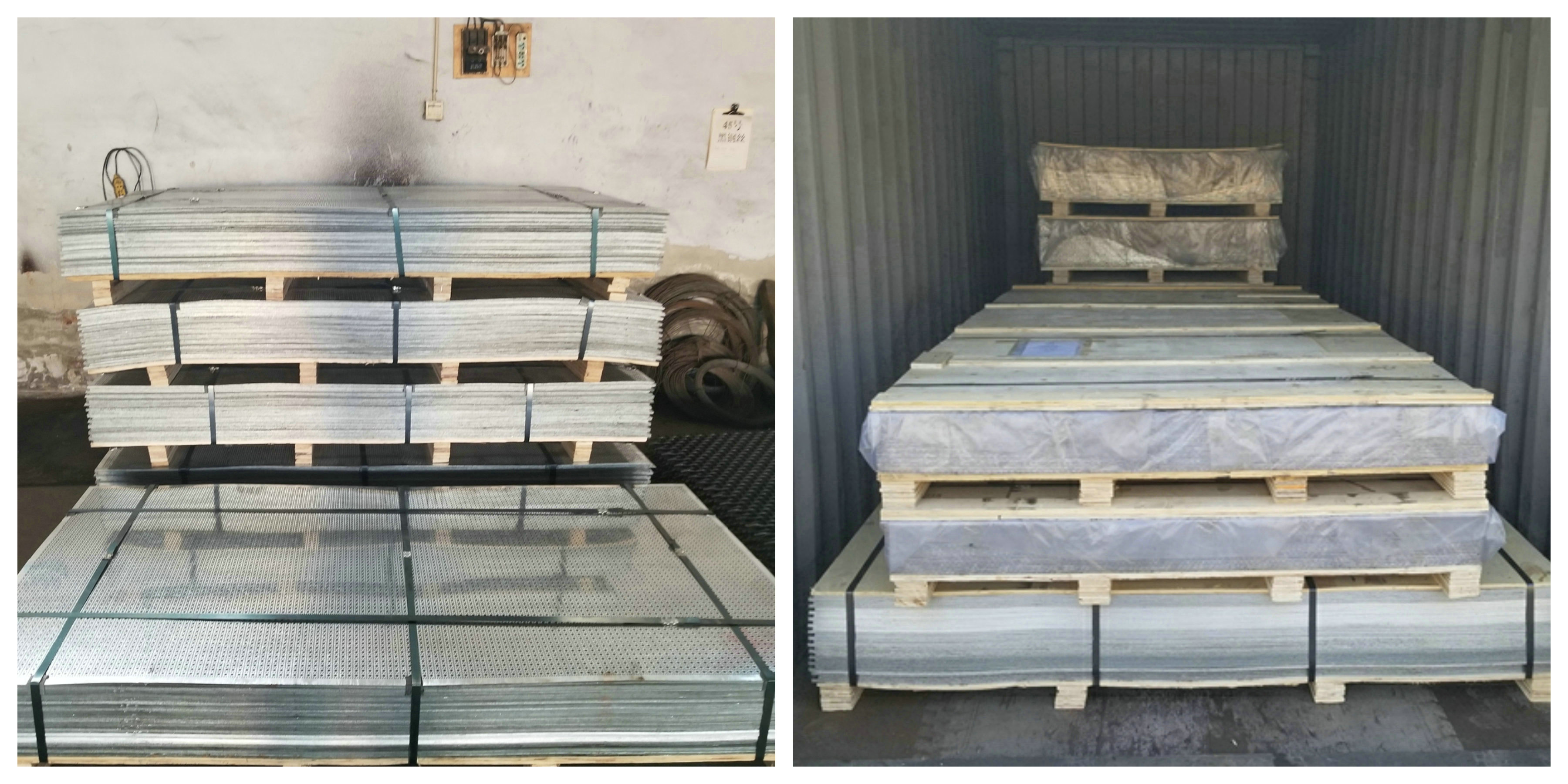

Packaging

Different hole shape perforated metal sheet

Application

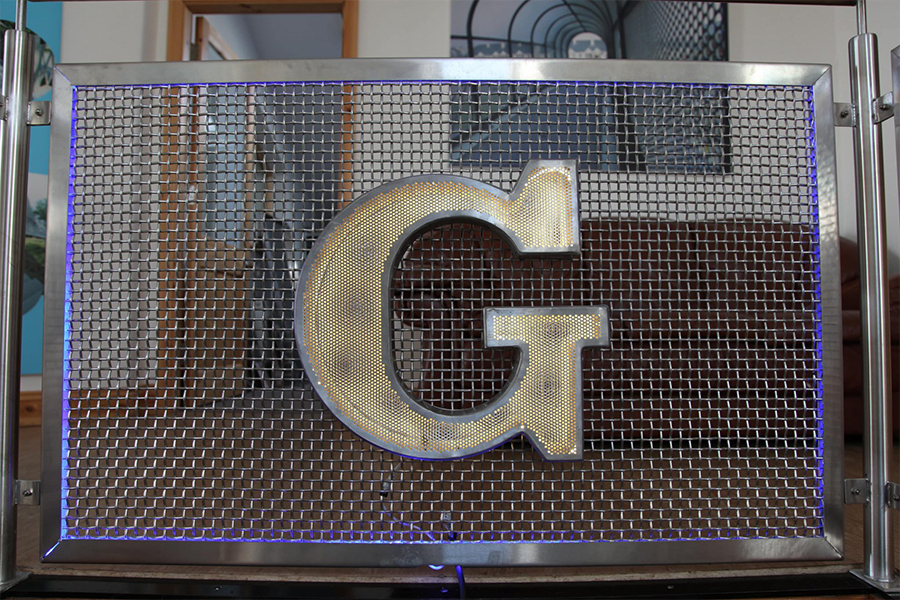

  • Perforated Outdoor Branding

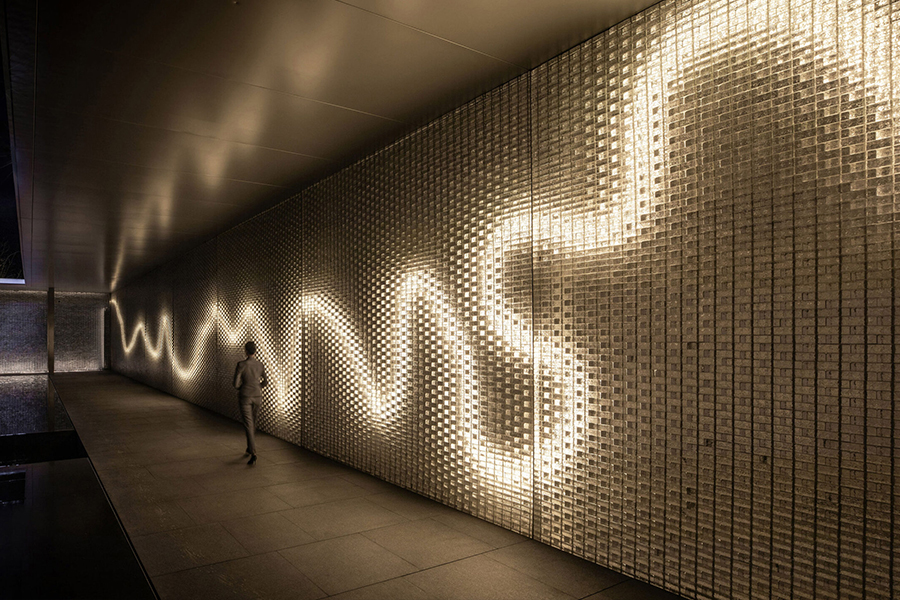

  • perforated Public Artwork

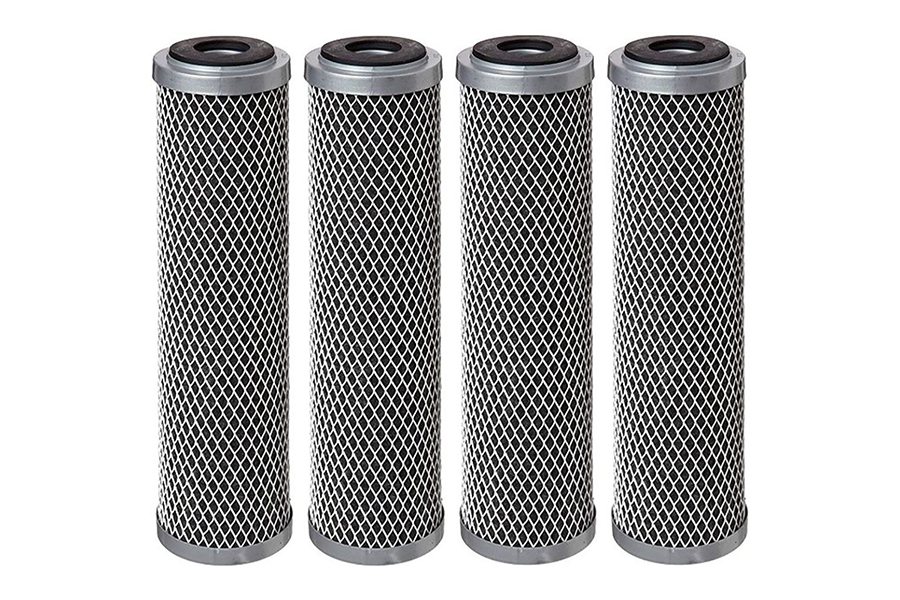

  • perforated tube filter

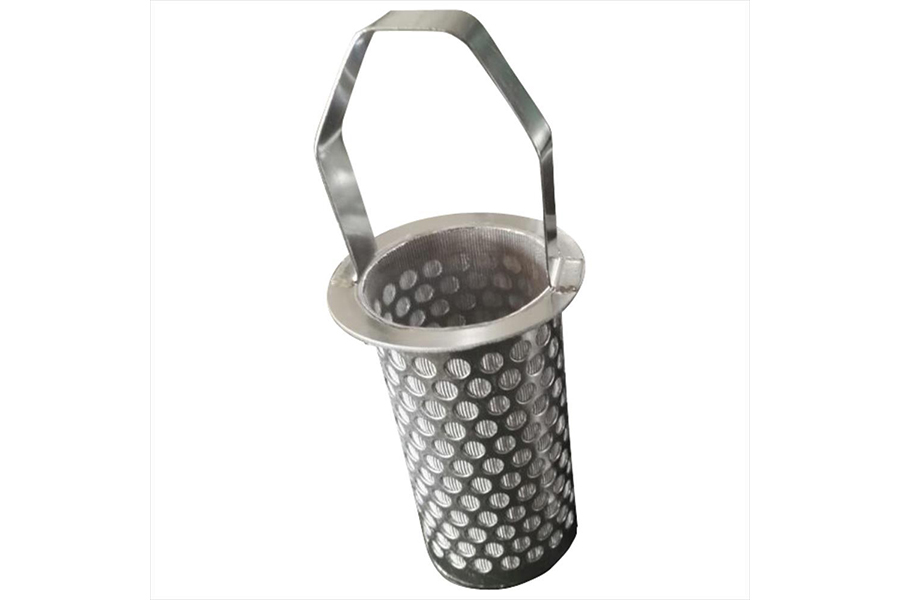

  • Stainless Steel Sintered Perforated Mesh Filter Basket
