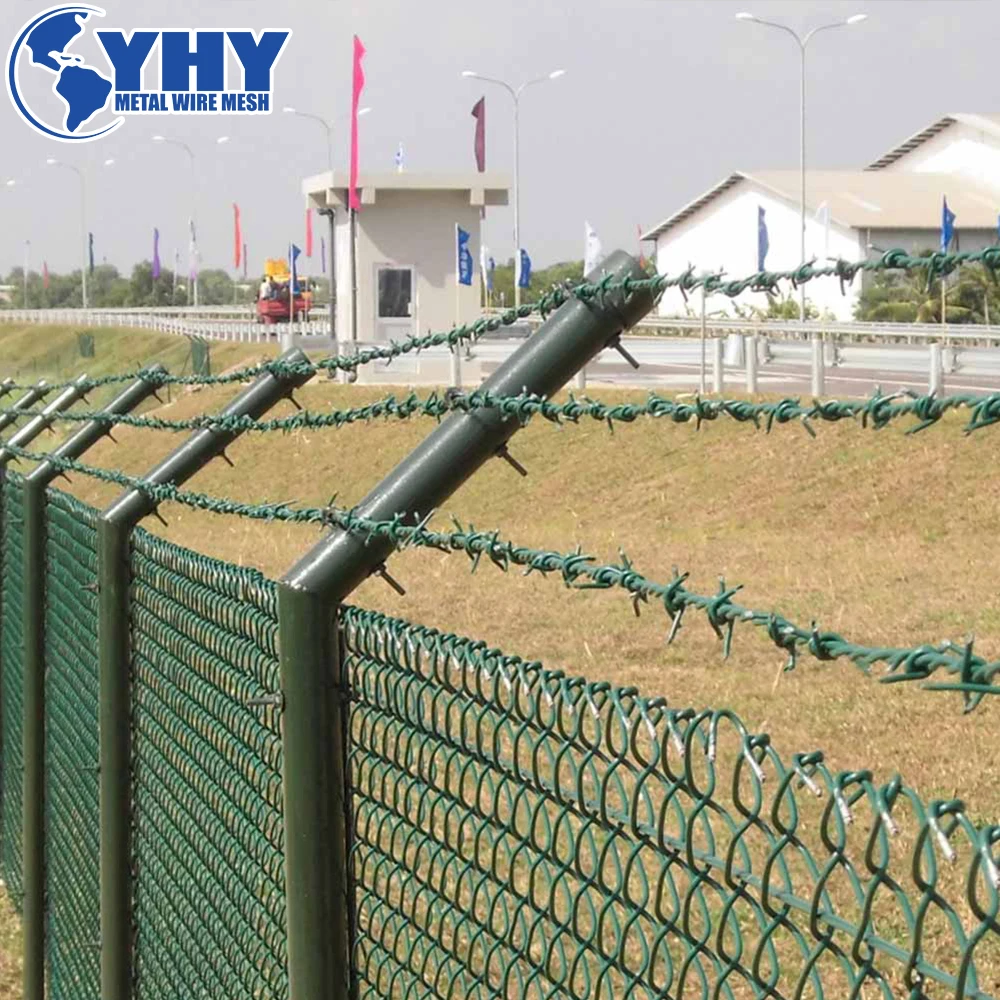

Electric Galvanized Barbed Wire for Airport Prison Security Fence

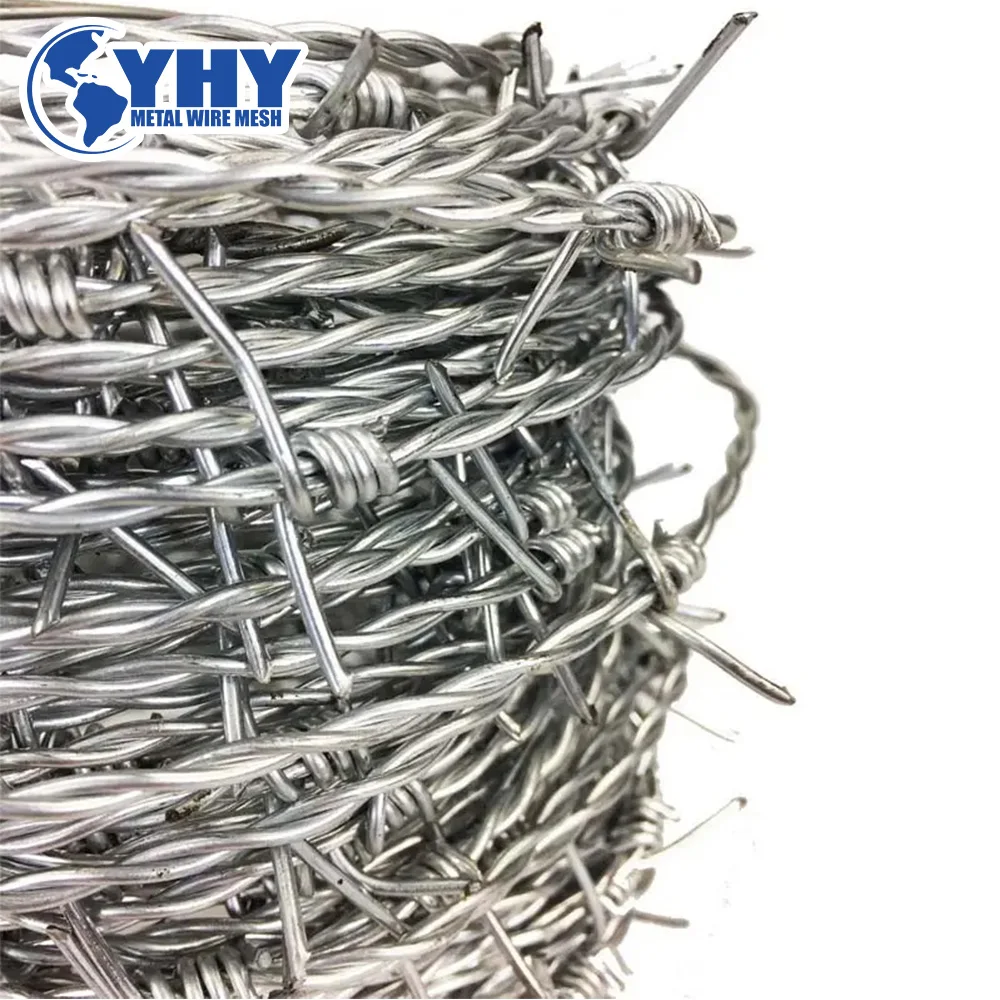

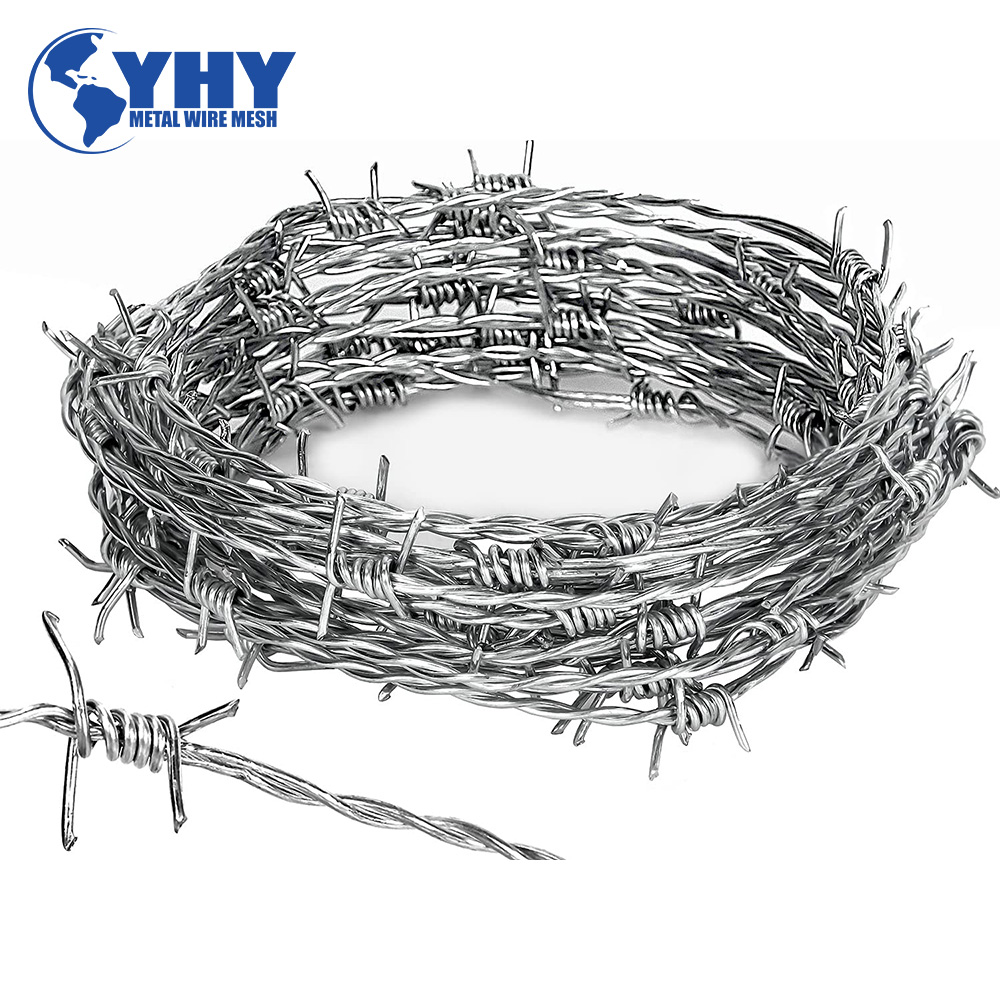

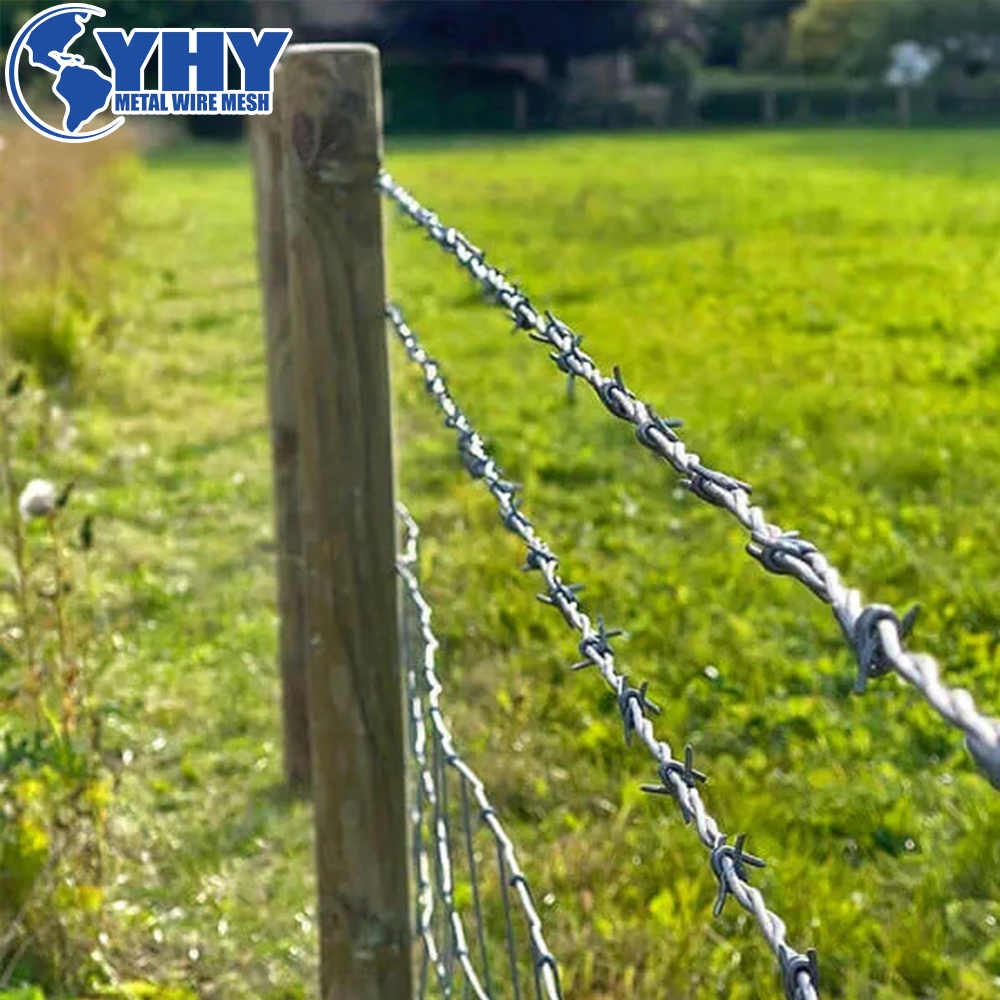

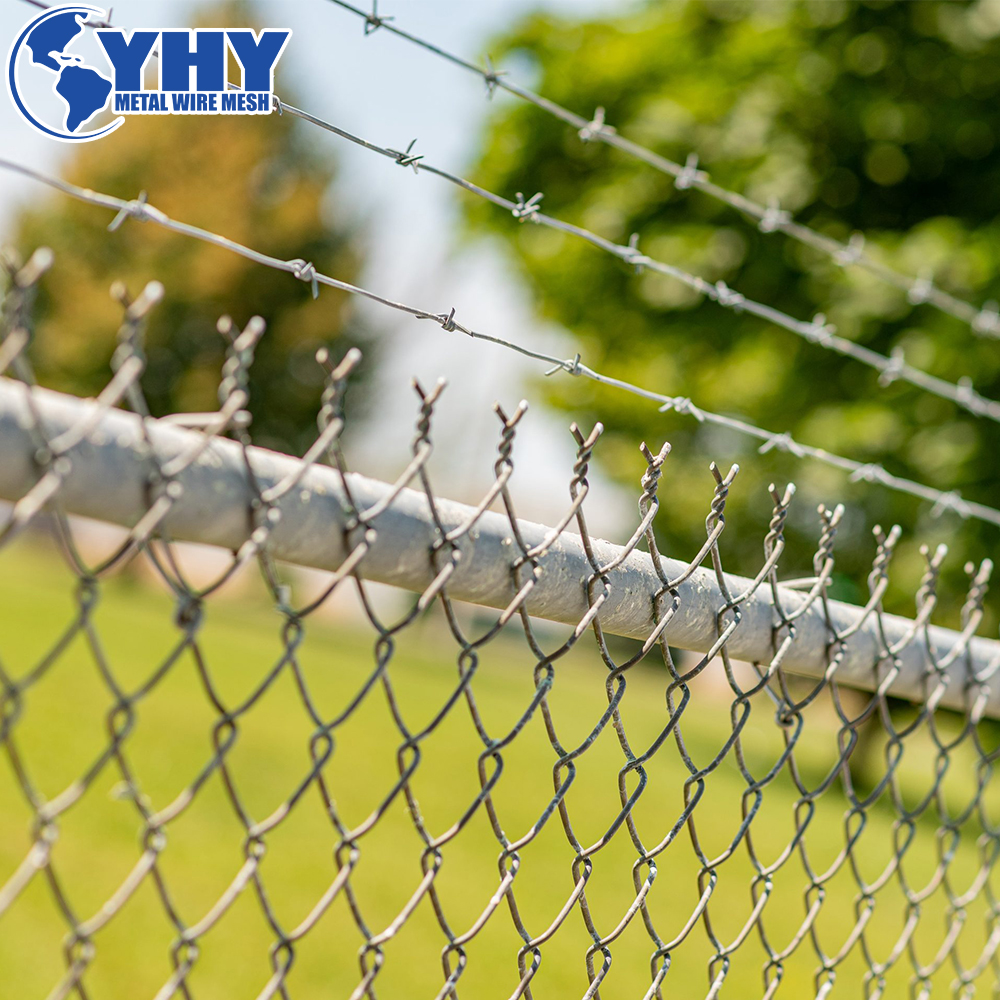

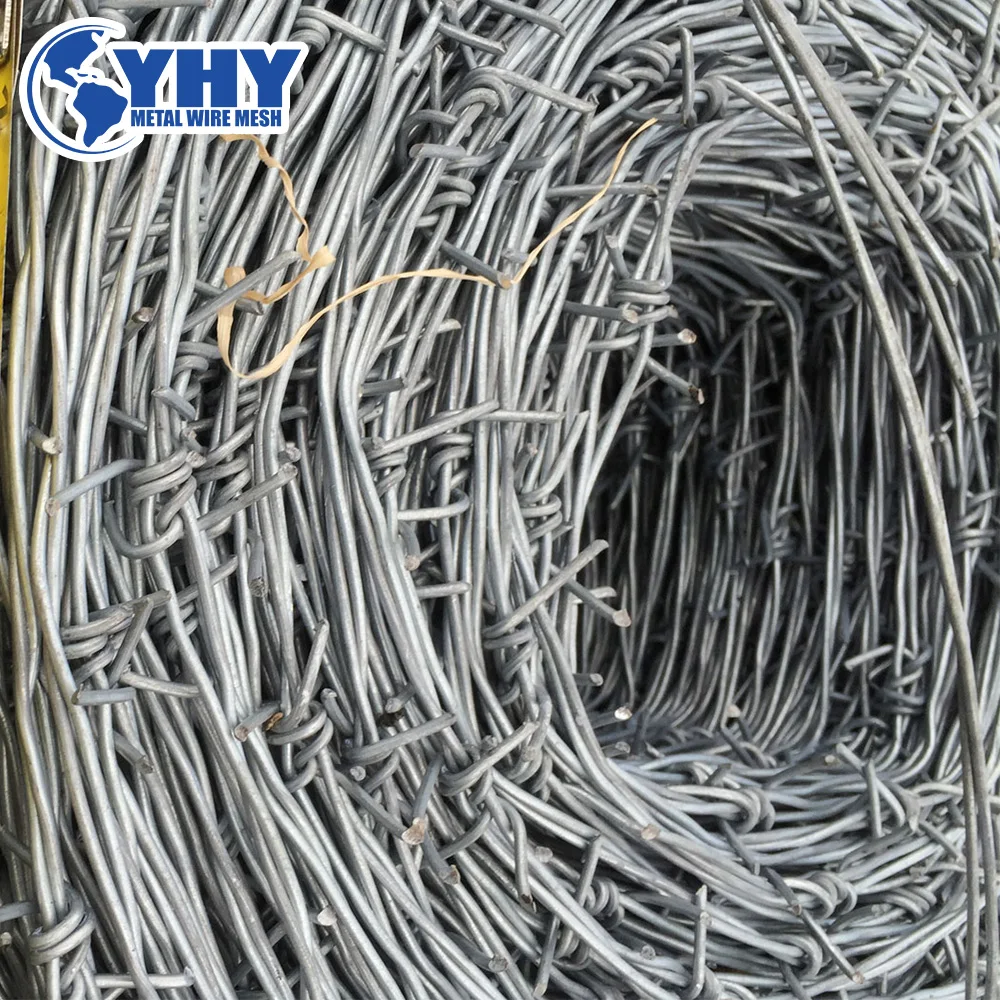

Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. To prevent corrosion, barbed wire has a zinc coating. The barbed wire consists of barb wire and line wire. The wire diameter of line wire is larger. The line wire can have one wire or two wires. The barb wires are braided with a system of constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharpened spikes are protective elements of barbed wire.

Hot dipped galvanized barbed wire specification:

·        Zinc surface density: (the more zinc, the corrosion resistance is stronger.)

·        Horizontal line wire/barb wire (g/m²): 80/60, 114/85, 175/147, 260/240.

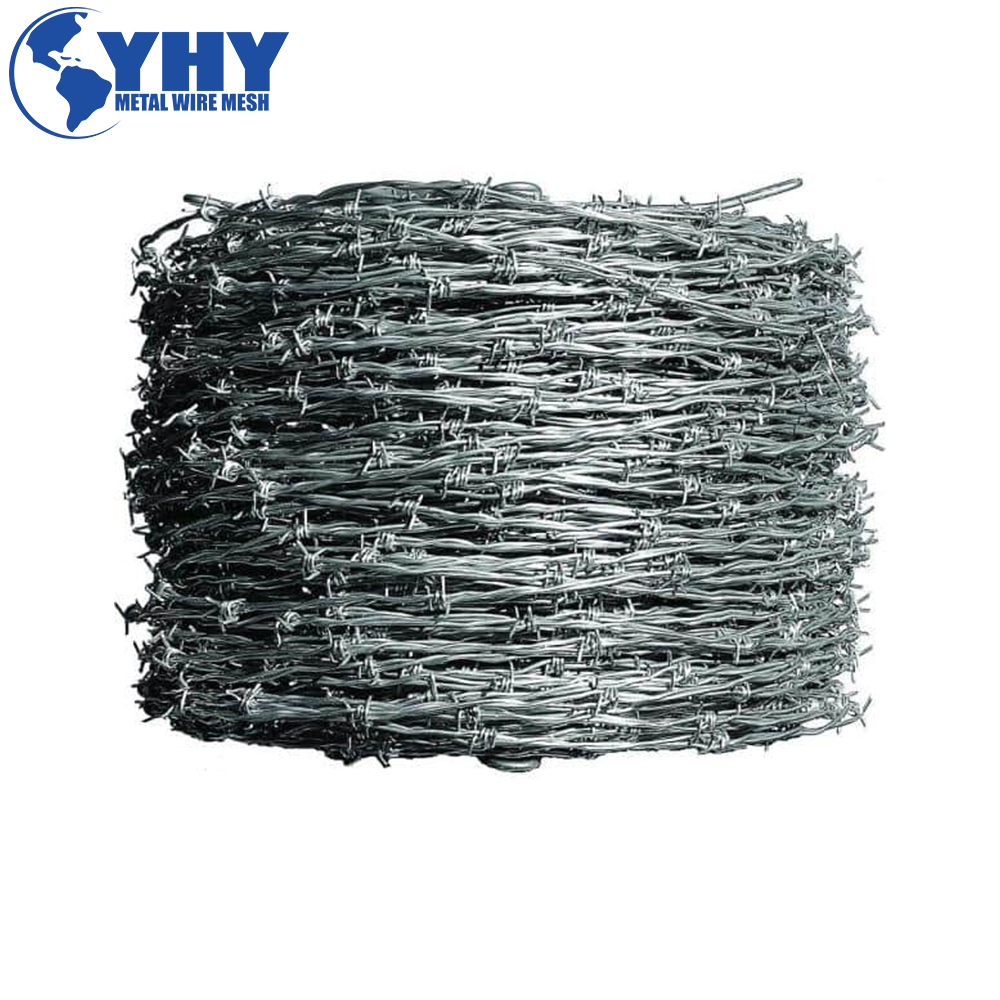

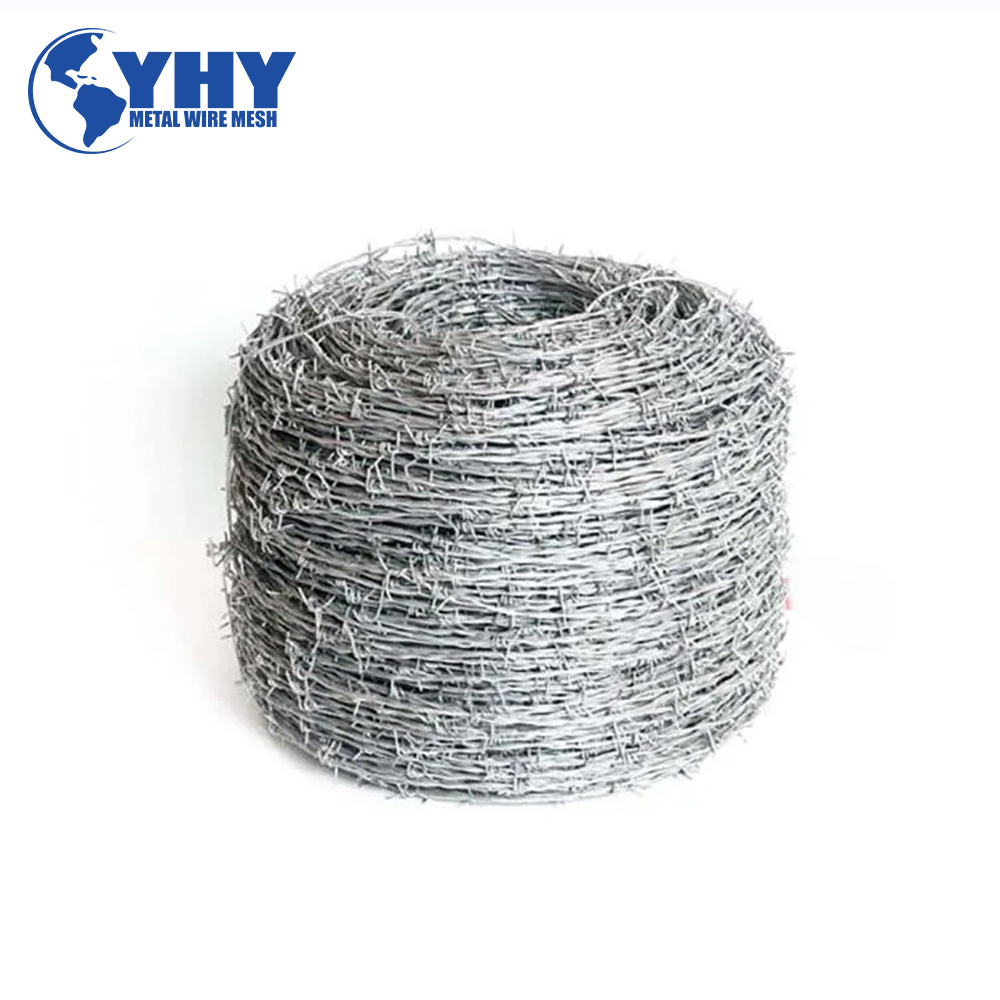

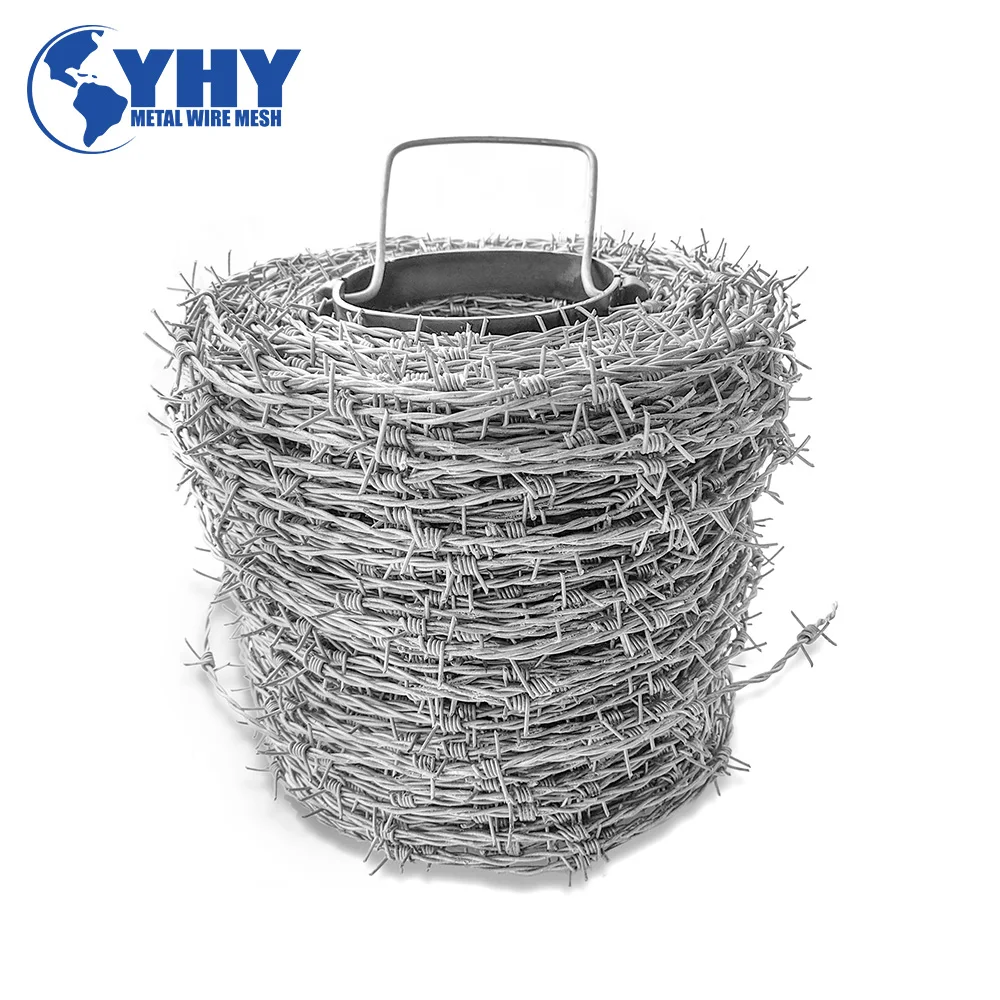

Galvanized single strand barbed wire size:

·        Made of l line wire with 4 spikes, spaced at a distance of 70 mm - 120 mm.

·        Horizontal line wire diameter 2.8 mm.

·        Barb wire diameter 2.0 mm.

·        Number of spikes 4.

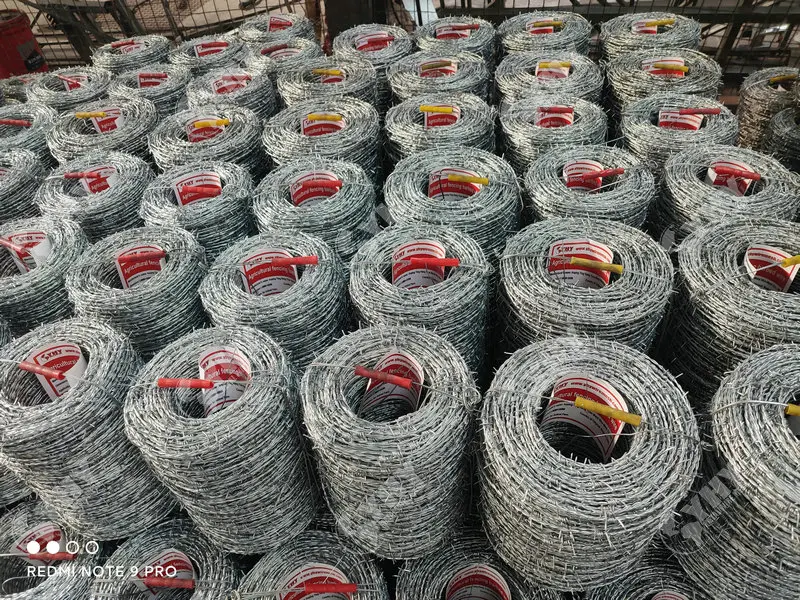

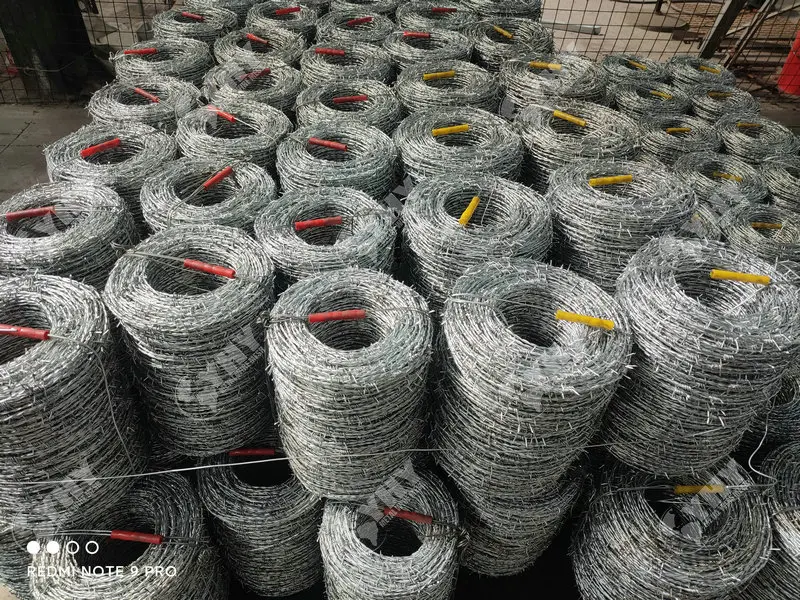

·        Packed in coils: 25-45 kg/coil, or 100 m, 500 m/coil.

Galvanized barbed wire with double strand size:

·        Made of 2 twisted line wires with 4 spikes, spikes spaced at a distance of 75 mm - 100 mm.

·        Horizontal wire barbed wire diameter 2.5 mm/1.70 mm.

·        Spikes wire diameter 2.0 mm/1.50 mm.

·        Strength of horizontal line wire: min. 1150 N/mm² .

·        Strength of barb wire: 700/900 N/mm².

·        Stranded wire breaking load: min. 4230 N.

·        Packed in coils: 20-50 kg/coil or 50 m - 400 m/coil.

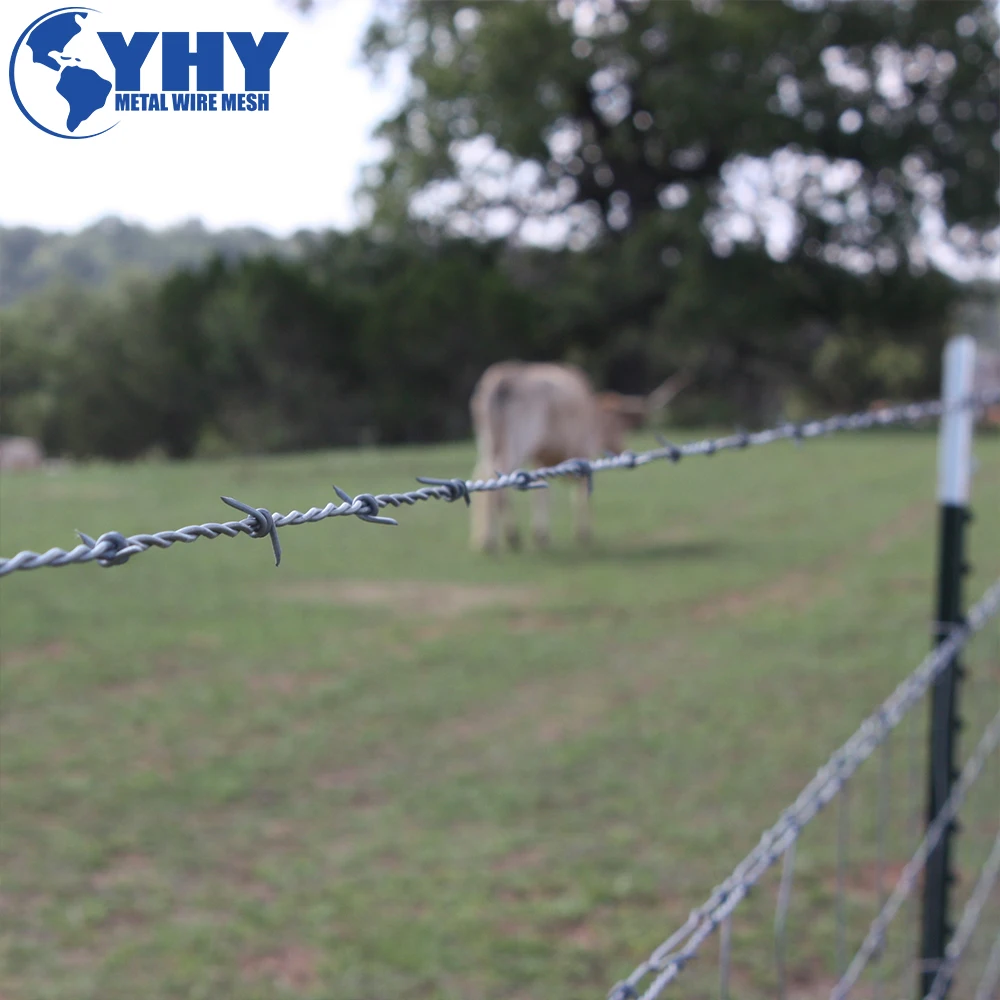

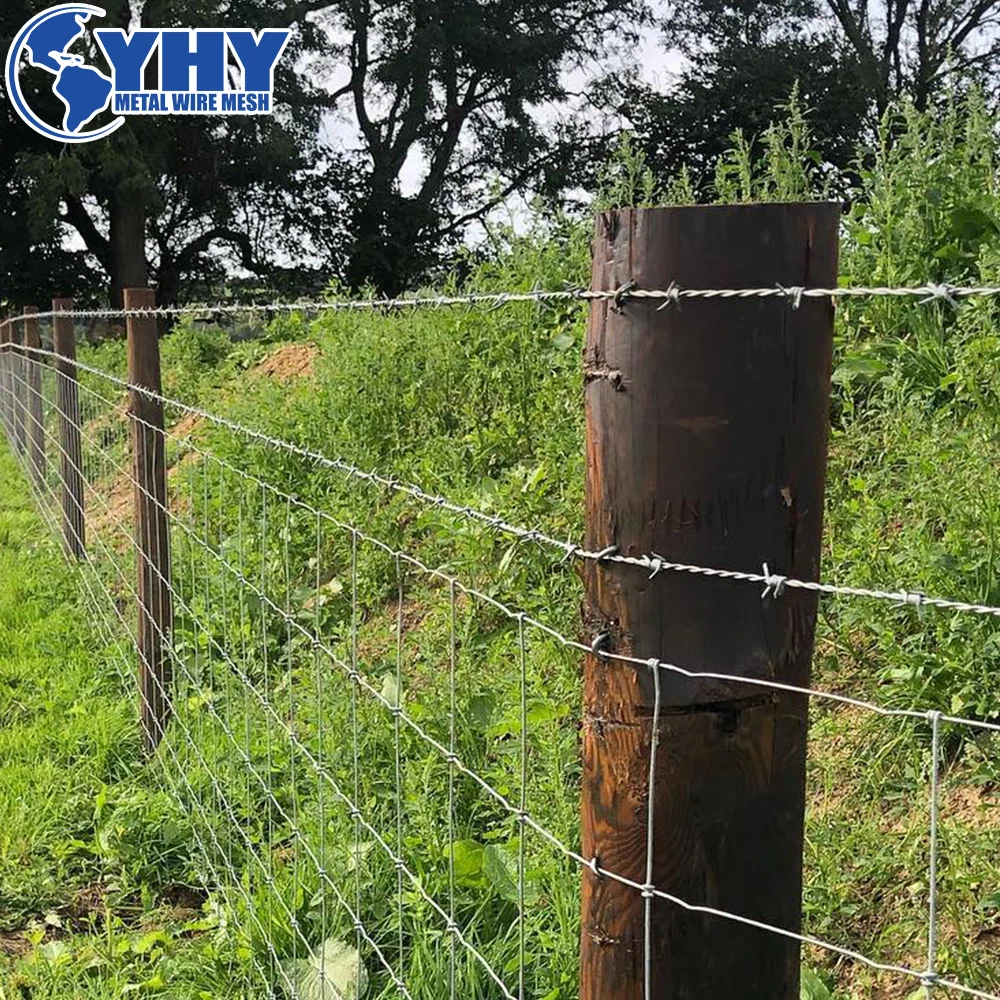

Widely used in Agriculture,Animal husbandry, Dwelling house,Plantation,Fencing and so on.

Package:

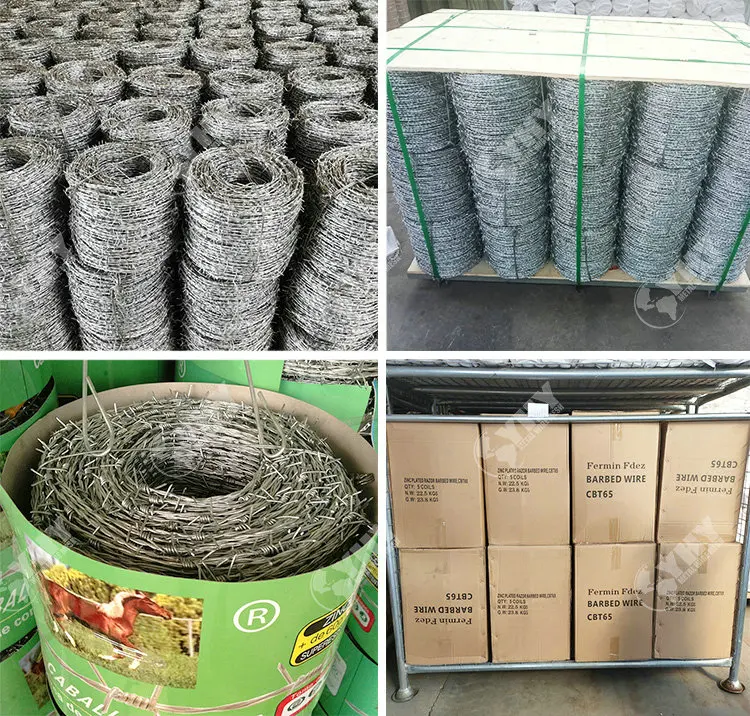

Standard packing is 27 reel on a square wooden pallet. Each pallet is wrapped with HDPE sheet all over and securely fastened with steel hoops. Each bag has a reel showing description, quantity, and country of origin, sizes and shipping marks.

Shipping:

1.The nearest sea port is Tianjin Xingang, and the distance from our factory to the seaport is about
250km, and only 3 hours’ drive.
2. There are many cooperating freight forwarding companies, which can provide customers with
preferential sea freight, land transport, and booking space.

1) Honest: we will strictly adhere to the contract, you will get the exact quality and quantity from us.

2) Competitive price with shipment in time.

3) More than 14 years experience in the export.

4) We assure you that we will be responsible to the end once our service starts.
