High Strength Ladder Conveyor Belt

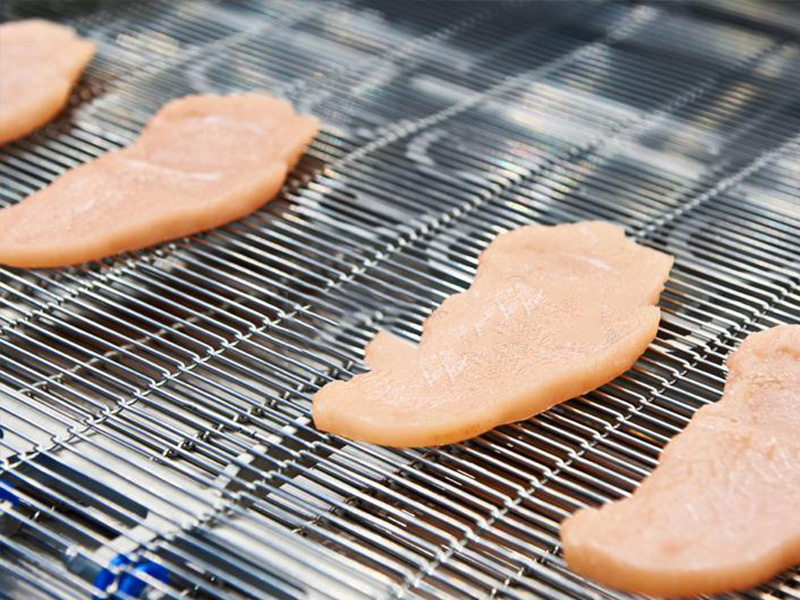

Ladder conveyor belts mainly include common ladder conveyor belt and flat flex conveyor belt in YHY, it is the simplest type of structure for all types of metal conveyor belts, just simply combine the rods and links with various edges. Ladder conveyor belt is made of stainless steel, carbon steel and galvanized steel, and the intensity of the material is very high, so it can be applied to many occasions. In addition, the opening area ratio of 86% enables greater air flow to increase the efficiency of cooling, heating, drainage and drying performance.

Features：

1. High tensile strength.

2. High open structure, high proportion of opening area up to 86%, good air circulation.

3. High temperature resistance, non-slip, anti-corrosion and anti-rust.

4. Side guards can be added to prevent products from falling down the ground.

5. Easy to clean and save maintenance cost.

6. Easy to install and remove, durable with longer lifespan.

Material:Carbon steel, stainless steel, galvanized steel.

Type:

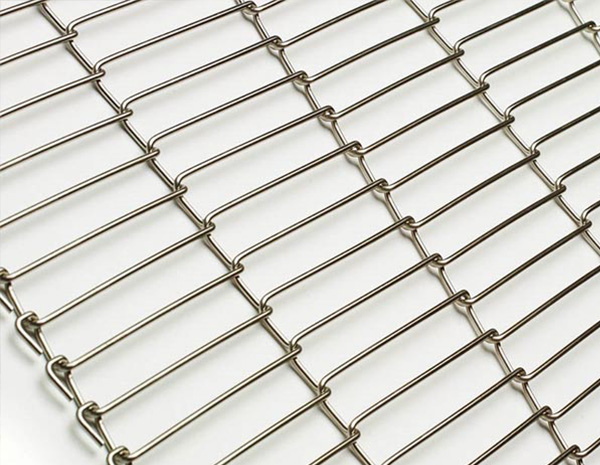

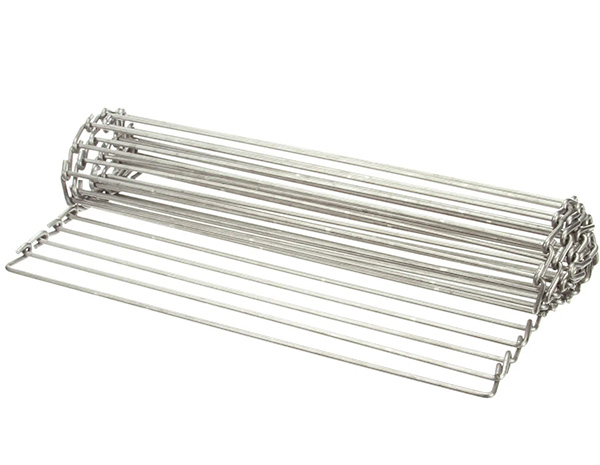

1.Ladder conveyor belt: standard, curved

• Speed: from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt).

• Temperature range: -100 °C to 300 °C.

• Edge type: S-hook edge, chain link edge, U-shaped link edge.

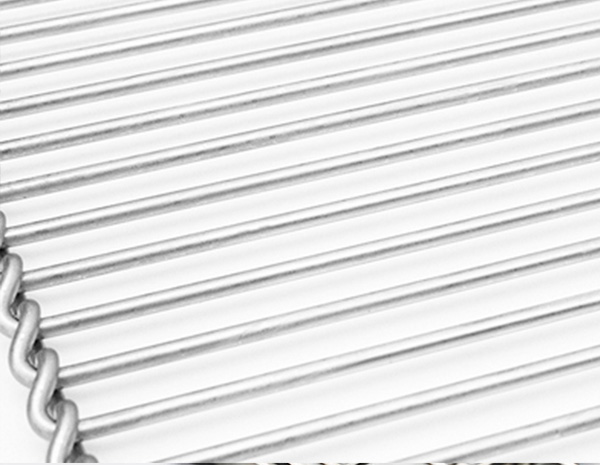

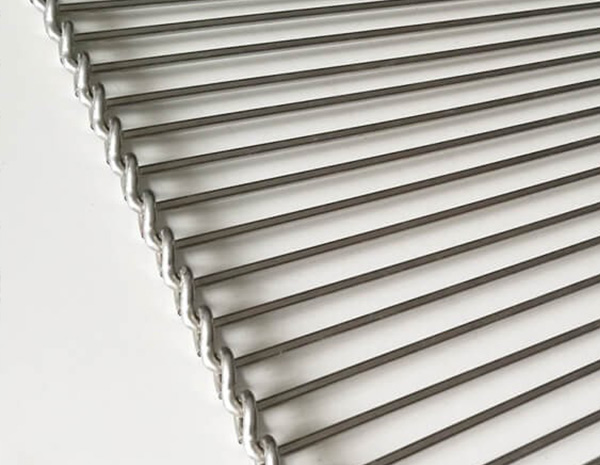

2.Flat flex conveyor belt: straight, curved, convex, concave.

• Opening area: 67.5% to 86%.

• Wire diameter: 0.9–2.35 mm.

• Pitch: 4.24–20.32 mm. Other pitches can be customized.

• Belt width: 76.2 mm to 4267.2 mm or custom width as your request.

• Edge type: single loop edge, double loop edge, C-shaped loop edge.

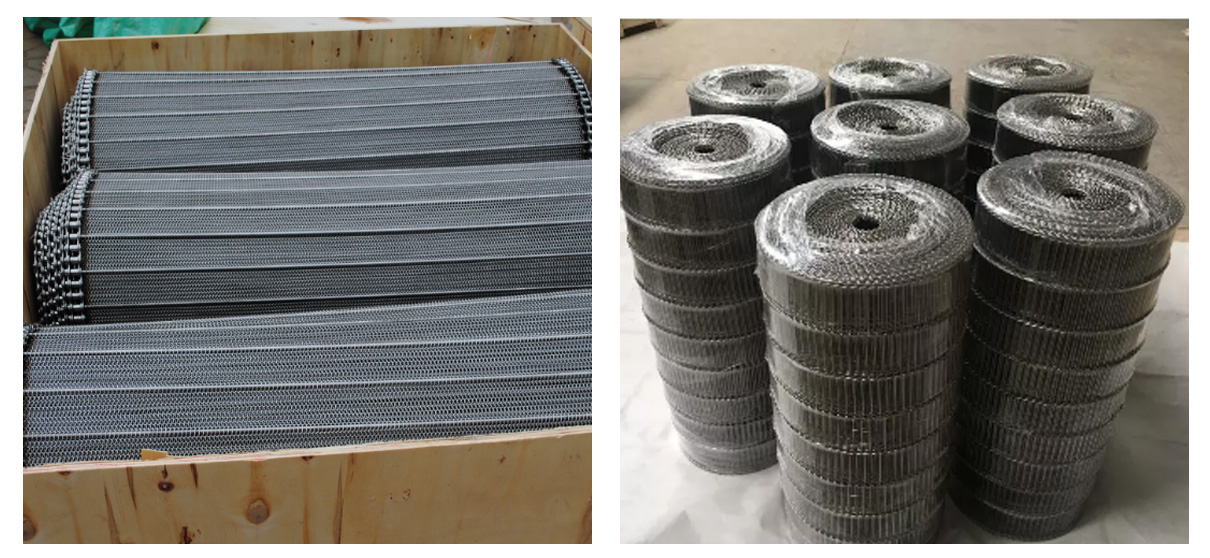

According to customer requirements, provide different packaging.

1. Standard packing---Bulk. Save space, packaging costs, and shipping costs without using pallets.

2. Customized packing. The cost is high, but the loading and unloading is convenient, saving labor costs.

3. Custom labels.

Warehousing: Our factory has a large warehouse, which is clean and dry. A short-term storage screen service is available.
