Welded Wire Mesh

Material: Galvanized iron wire, low carbon steel wire, PVC coated wire, Stainless steel wire. Applications: Welded wire mesh is used in industry, agriculture, building, transportation, mining, fishing,poultry, egg baskets, runway enclosures, draining rack, fruit drying screen, fence etc.

Share:
Detail description

Material: Galvanized iron wire, low carbon steel wire, PVC coated wire, Stainless steel wire.

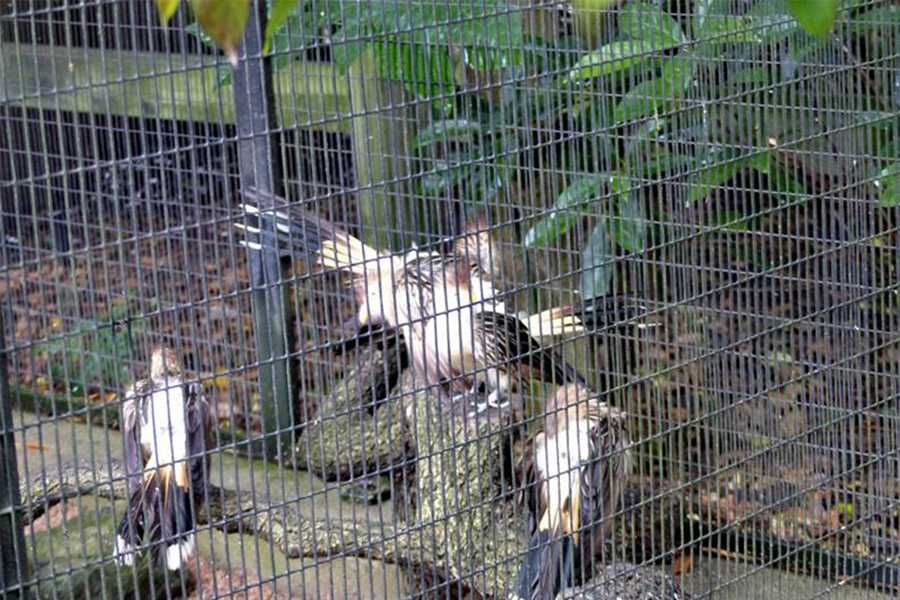

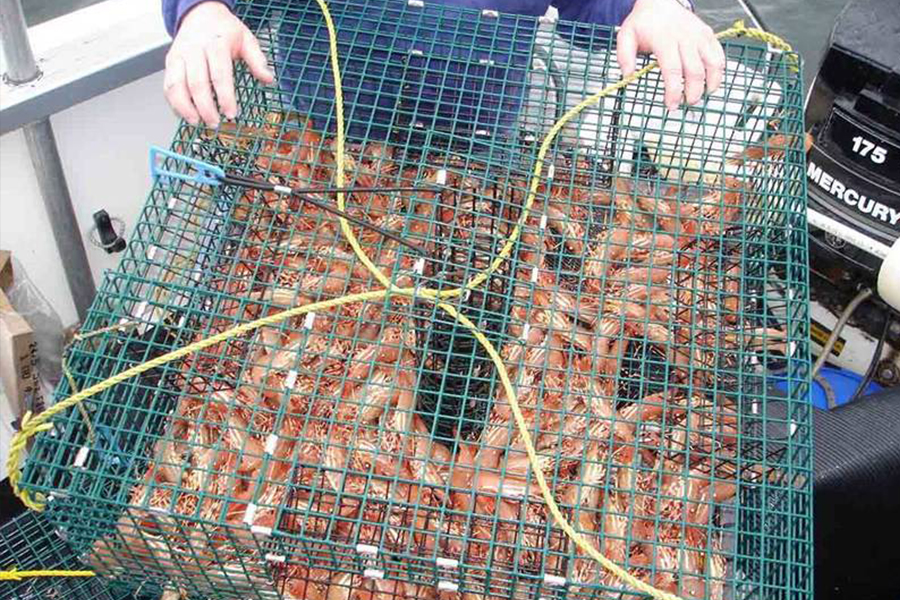

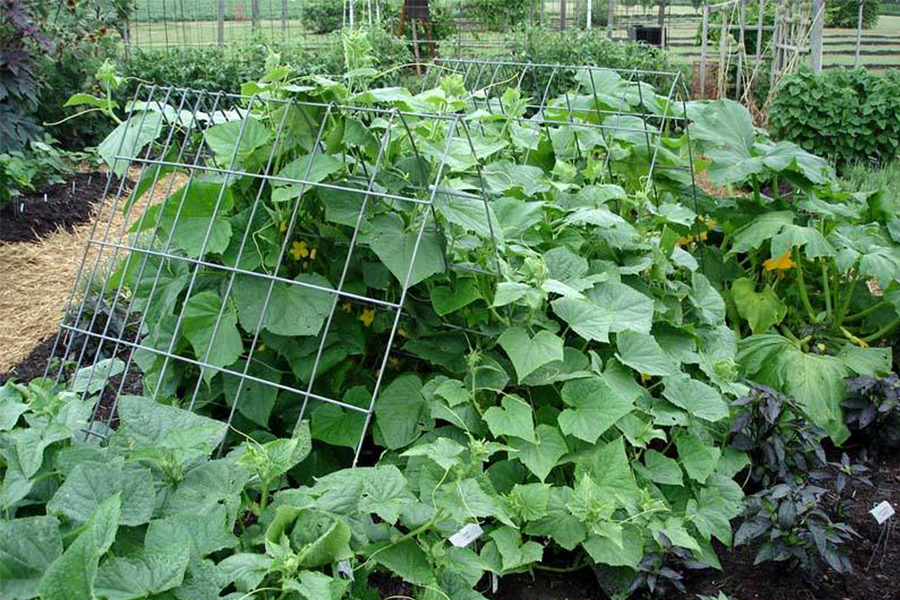

Applications: Welded wire mesh is used in industry, agriculture, building, transportation, mining, fishing,poultry, egg baskets, runway enclosures, draining rack, fruit drying screen, fence etc.

Roll Width: 24 inch, 36 inch, 1 Metre, 48 inch, 72 inch or 84 inch.

Roll Length: 100 feet or 150 feet.

Note: other roll width or roll length can be made according to request.

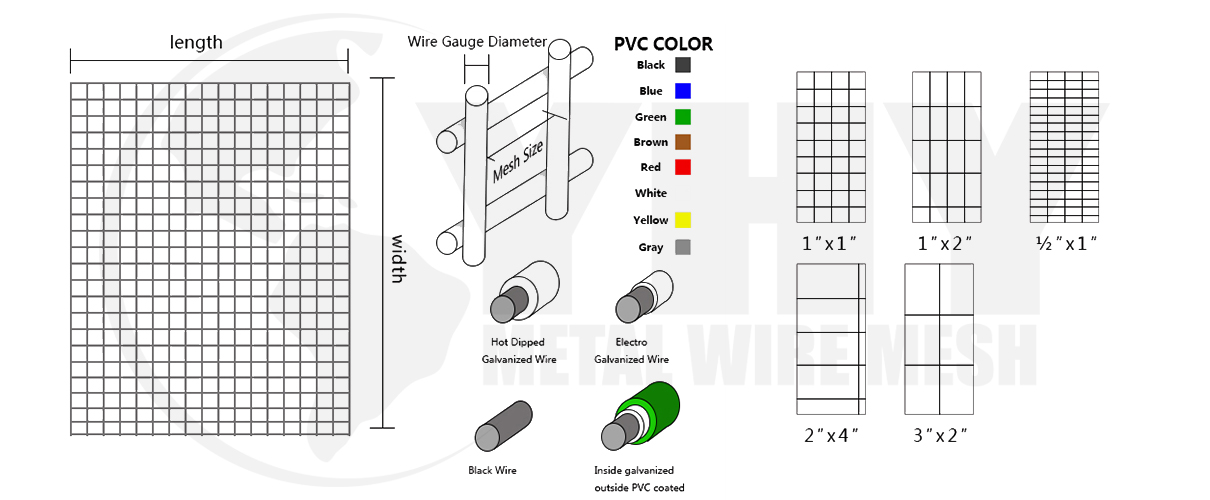

Mesh SizeWire Gauge Diameter
In MMIn InchBWG No.MM
6.4mm1/4InchBWG24-220.56mm- 0.71mm
9.5mm3/8InchBWG23-190.64mm - 1.07mm
12.7mm1/2InchBWG22-160.71mm - 1.65mm
15.9mm5/8InchBWG21-160.81mm - 1.65mm
19.1mm3/4InchBWG21-160.81mm - 1.65mm
25.4x 12.7mm1 x 1/2InchBWG21-160.81mm - 1.65mm
25.4mm1InchBWG21-140.81mm - 2.11mm
38.1mm1 1/2InchBWG19-141.07mm - 2.11mm
25.4x 50.8mm1 x 2InchBWG17-141.47mm - 2.11mm
50.8mm2InchBWG16-121.65mm - 2.77mm
50.8mm to 305mm2 to 12InchAt Request

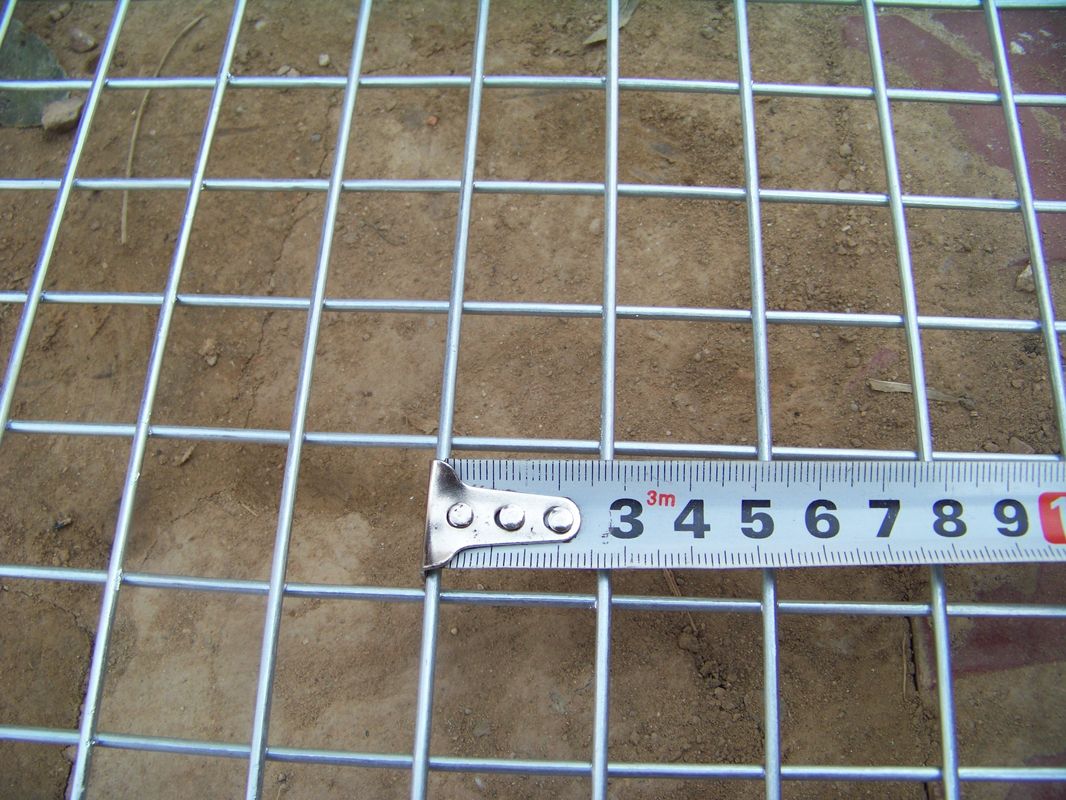

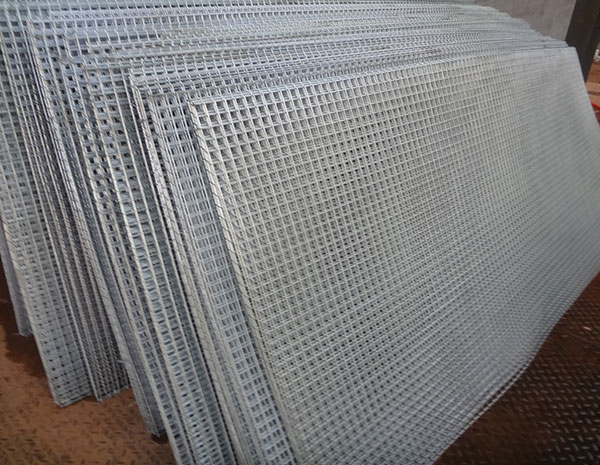

GALVANIZED WELDED WIRE MESH


Welded Wire Mesh

Knowledge

Feature:The surface coated by zinc, it can be rusty-resistance, make it longer use life.

You can choose as the following treatment:

A: Electro galvanized wire welded directly (single layer zinc coated for wire)

B: Hot dipped galvanized wire welded directly (double layer zinc coated for wire)

C: Electro galvanized after welded mesh (single layer zinc coated for mesh)

D: Hot dipped galvanized after welded mesh (double layer zinc coated for mesh)

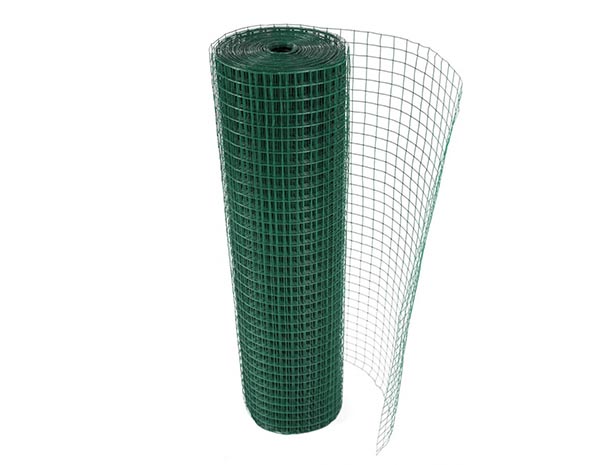

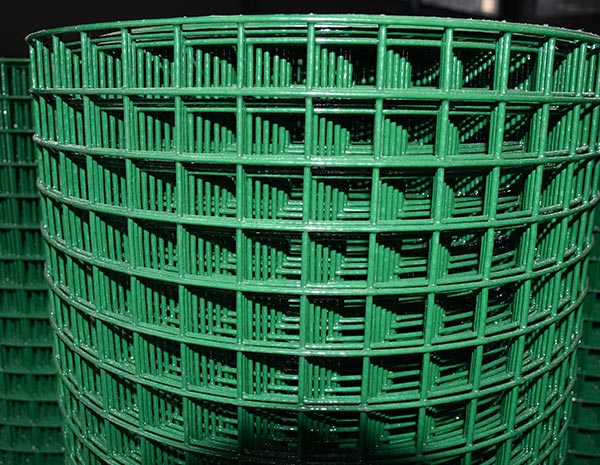

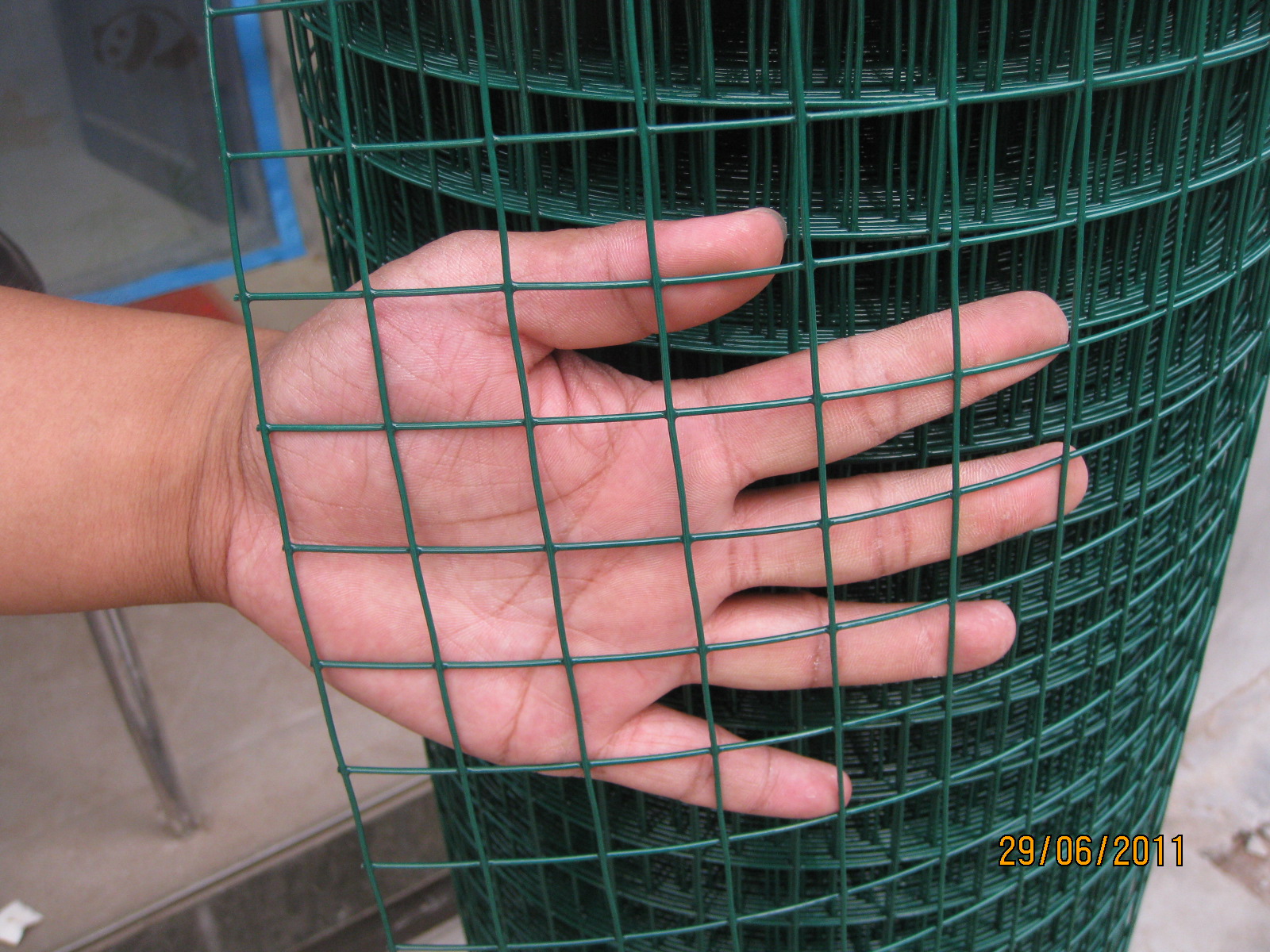

PVC Coated welded wire mesh

Feature: PVC coated can protect the inside wire well, the surface looks more beautiful.

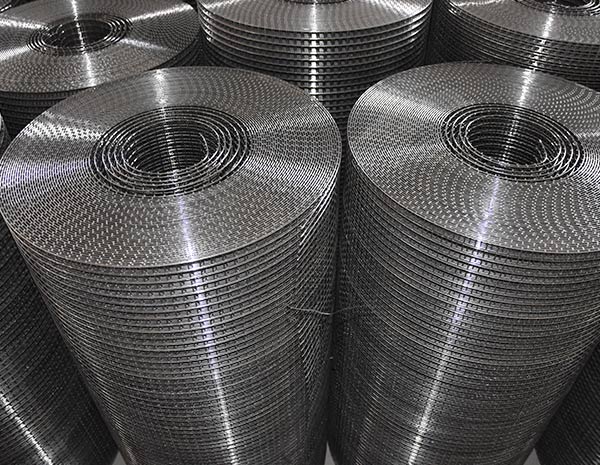

Stainless Steel welded wire mes

Feature: The stainless steel welded mesh has a strong anti-corrosion anti-oxidation properties, strong solder joints, high tension, and brightness surface.

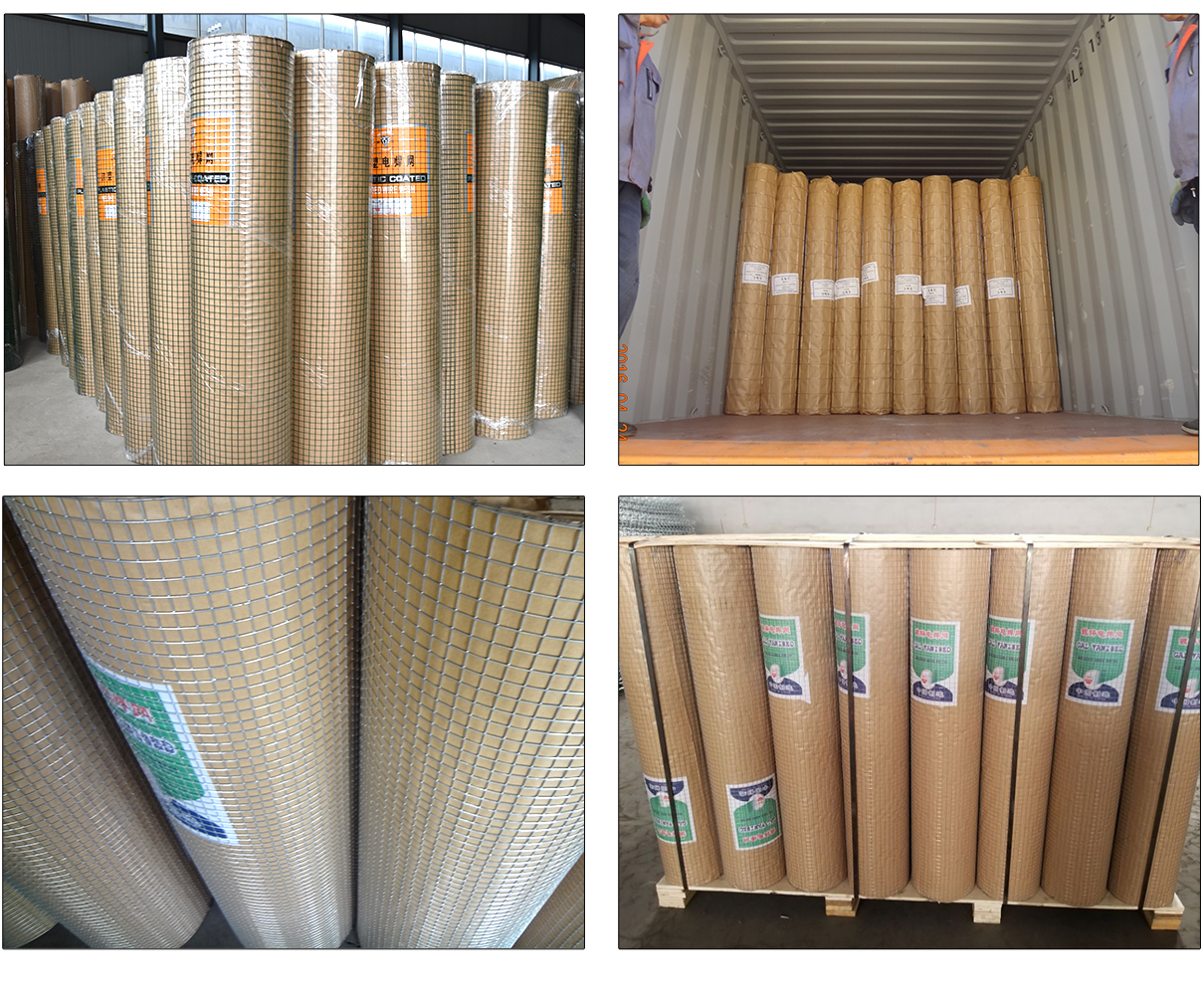

Packaging

Welded Wire Mesh   Welded Wire Mesh
