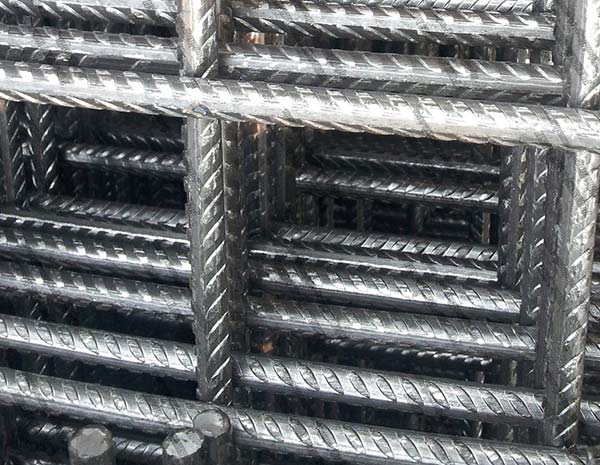

SL92 150x150mm 6000X2400mm Square Opening Welded Reinforcement Wire Mesh

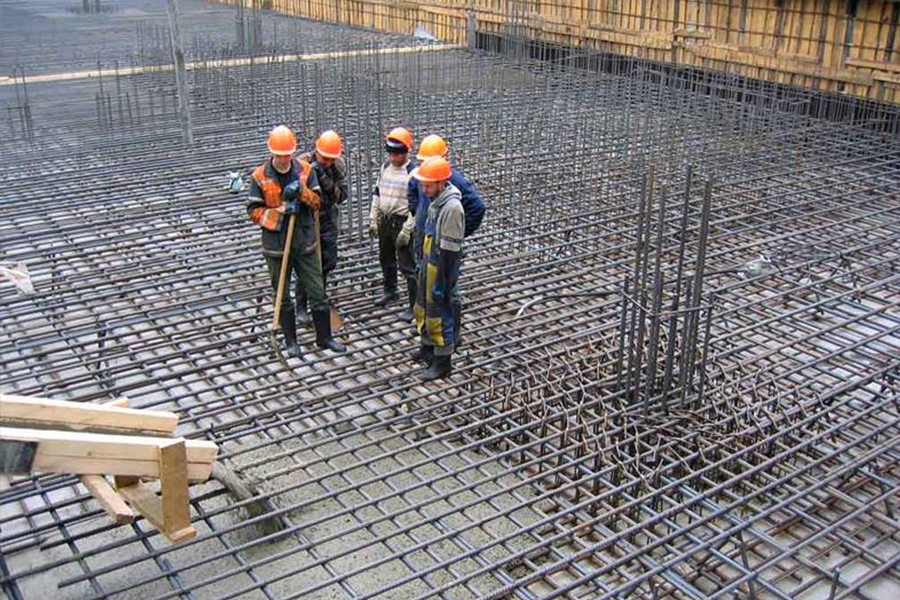

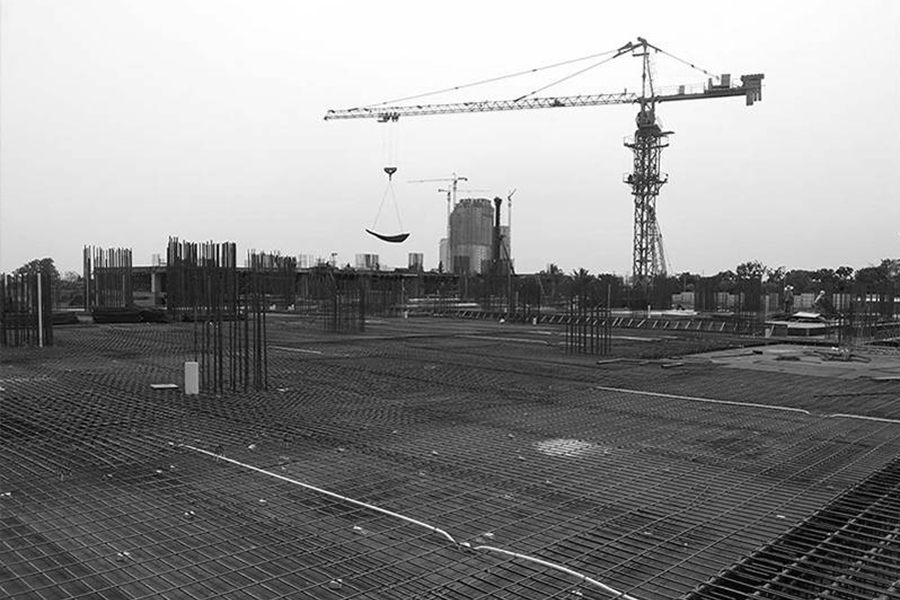

Min order quantity: 300 pieces Price: 15.99$/piece Sample: Free Sample Application: It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof and walls, etc.

Share:
Detail description


Welded Reinforcement  Wire Mesh / Welded reinforcing mesh


Welded reinforcing mesh also known as welded wire reinforcement, is a kind of mesh reinforcement. Reinforcing mesh is a highly efficient, economical and flexible for concrete reinforcement, greatly save the construction time and reducing the labor force. It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof, and walls, etc.


Features of our concrete reinforcing mesh


· The welded wire fabric makes them easier to work on.


· There are different diameters of steel reinforcing mesh each suited for a particular application.


There are different designs of steel reinforcing mesh from bent and rolls to flat sheets.


· As per BS 4482 standards and codes, the stainless steel wire used in the manufacture of the steel reinforcing mesh has a 510MPa tensile strength and 485MPa minimum proof stress.


· The steel reinforcing mesh is rigid making it possible for you to control concrete cover during construction.


· Manufacturers produce steel reinforcing mesh under SANS1024 Standard Specifications.


· The steel bars stay intact whenever immersed in concrete because they are carefully welded in mats.


· You don't have to apply additional surface treatment to the steel reinforcing mesh before use.


· Less field labor needed when making reinforced concrete slabs using this mesh thus drastically speeding up the construction process.


· The mesh is easy to load and unload, and easy to handle at the working site.

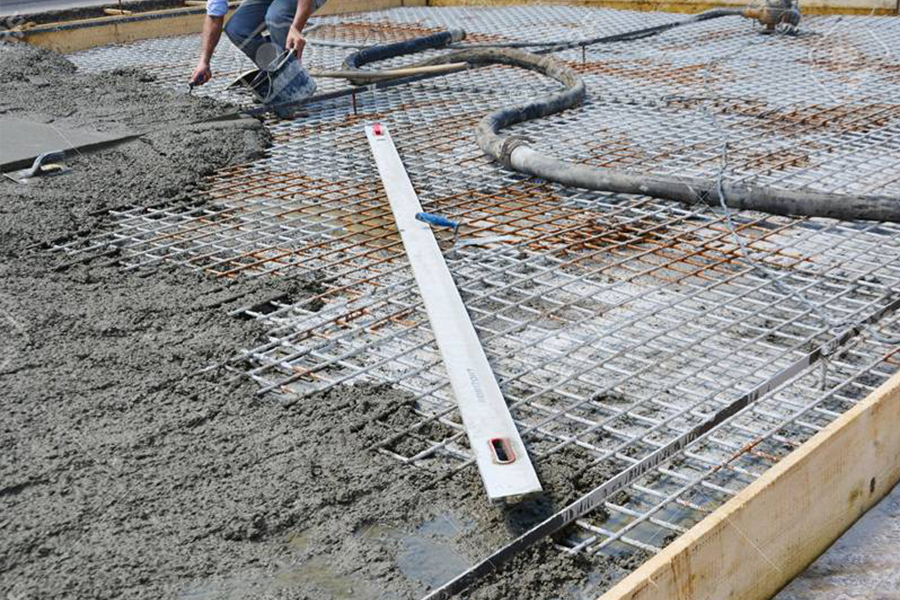

· Properly mixed concrete is poured into the mesh and then given time to dry out. The concrete, as it continues to dry out, it grips the steel bars tightly creating a bond stress between these two materials. This bond stress is essential because it reduces bending and makes reinforced concrete slabs stronger.



Types of steel reinforcing mesh


Below are different categories of steel reinforced mesh you can purchase for your

construction work.

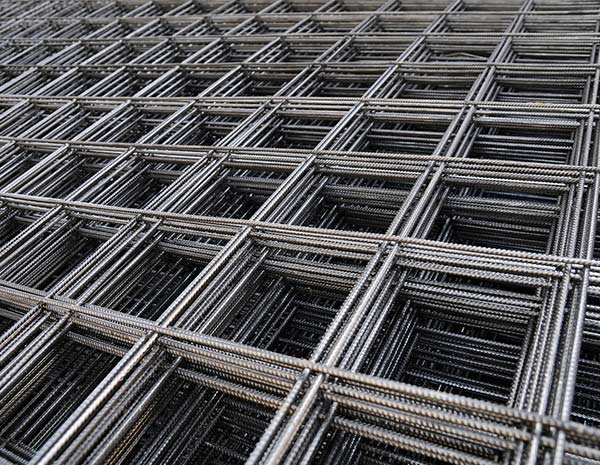

· Square opening steel reinforced mesh: This mesh has stainless wires that run vertically and horizontally supporting each other while forming small squares.


· Rectangular steel reinforced mesh: This mesh has stainless wires that run vertically and horizontally supporting each other while forming smaller rectangular shapes.


· Welded steel reinforced mesh for building vertical walls.


· Customized types, also known as special steel reinforced mesh.



1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)

Ref No.Std UnitLongitudinal Wires(mm)Cross Wires(mm)Pitch of wire(mm)Mass(Kg)Mass(Kg/m2)
Q131Sheet55150 x 15022.4762.091
Q188Sheet66150 x 15032.4013.014
Q221Sheet6.5/5.06.5150 x 15033.7073.136
Q295Sheet7.5/5.57.5150 x 15044.2454.116
Q378Sheet8.5/68.5150 x 15066.6595.157


2.Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)

Ref No.Std UnitLongitudinal Wires(mm)Edge Wires(mm)Cross Wires(mm)Mass(Kg)
SL81 (F81)Sheet7.6 @ 1007.60 @ 1007.60 @ 100105
SL102 (F102)Sheet9.5  @ 2006.75 @ 1009.50 @ 20080
SL92 (F92)Sheet8.6  @ 2006     @ 1008.60 @ 20066
SL82 (F82)Sheet7.6  @ 2005.37 @ 1007.60 @ 20052
SL72 (F72)Sheet6.75@ 2004.77 @ 1006.75 @ 20041
SL62 (F62)Sheet 6    @ 2004.77 @ 1006    @ 20033
SL52 (F52)Sheet4.77 @ 2004.77 @ 1004.77 @ 20021


3.BRITISH STANDARD BS4483


Ref No.Std UnitLongitudinal Wires(mm)Cross Wires(mm)Pitch of wire(mm)No. of sheet per tonMass(Kg/m2)
A393Sheet1010200 x 200156.16
A252Sheet88200 x 200223.95
A193Sheet77200 x 200293.02
A142Sheet66200 x 200402.22
A98Sheet55200 x 200571.54




Production Processing Photo and Video...


Knowledge

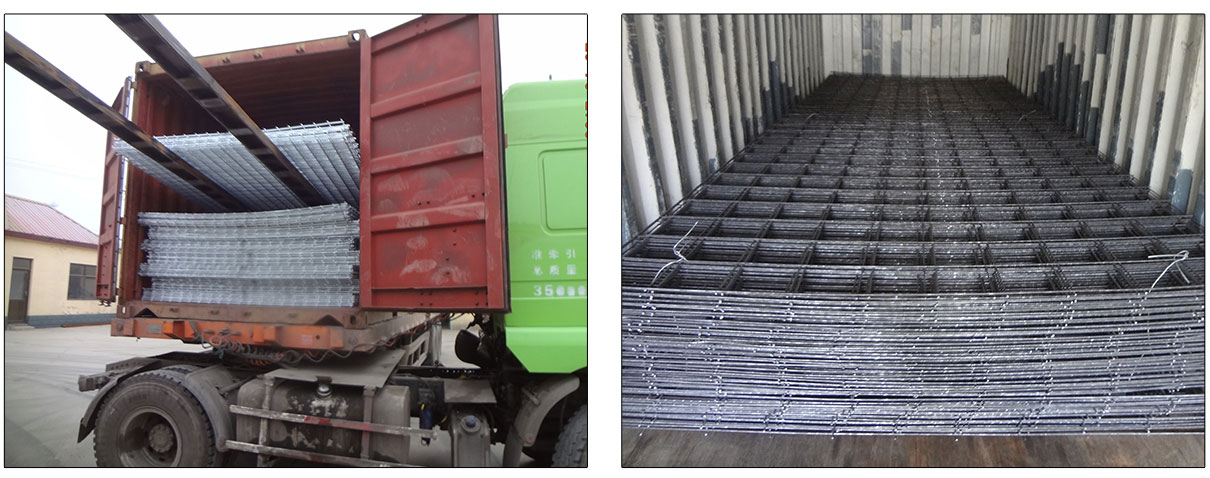

Packaging
