3feet Height Galvanized 20cm Vertical Wire Distance 100m long Field Fence

Min Order Quantity: 50 rolls Price: USD 36.66/roll Sample: Free Application:Field fence can be used with stakes, wood timber and other post. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

Share:
Detail description


Field Fence/Page Wire

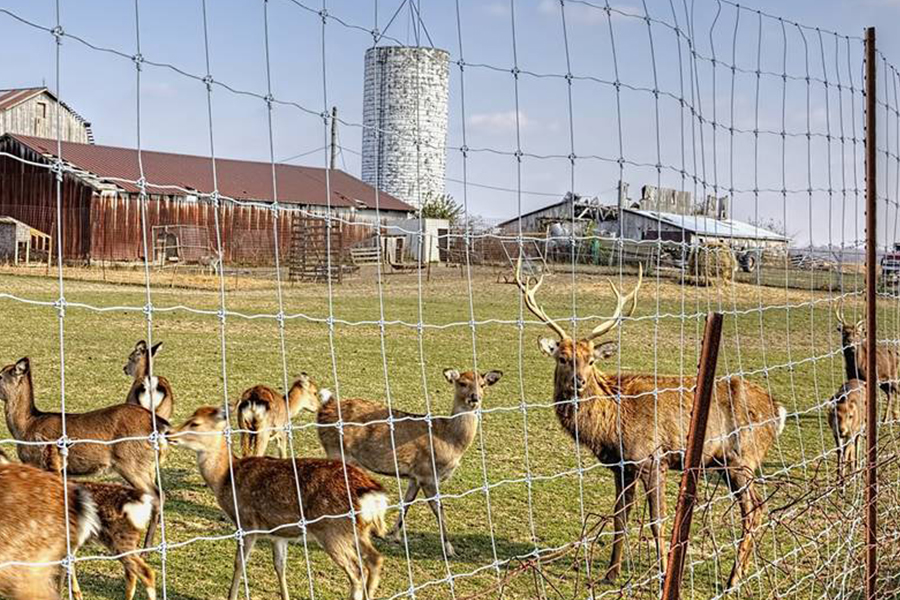

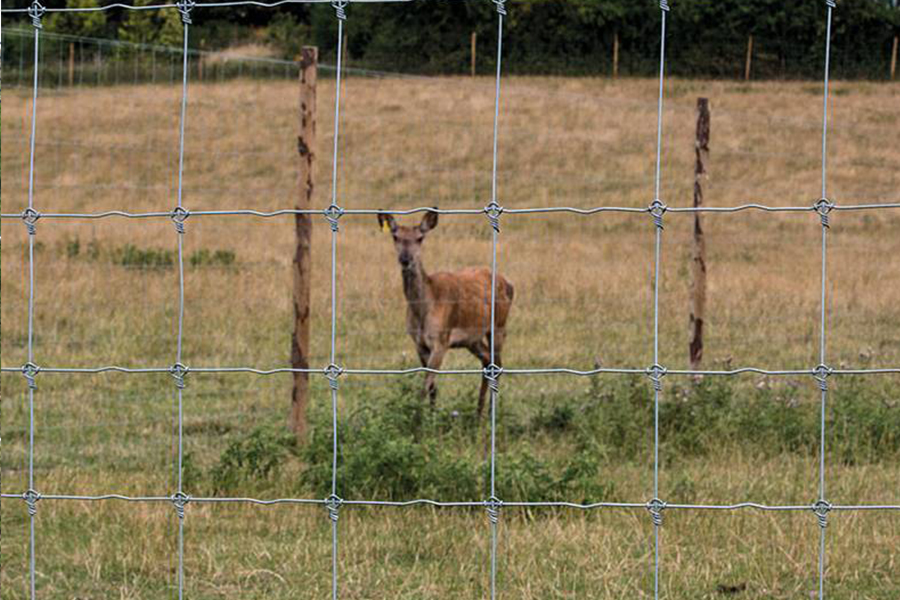

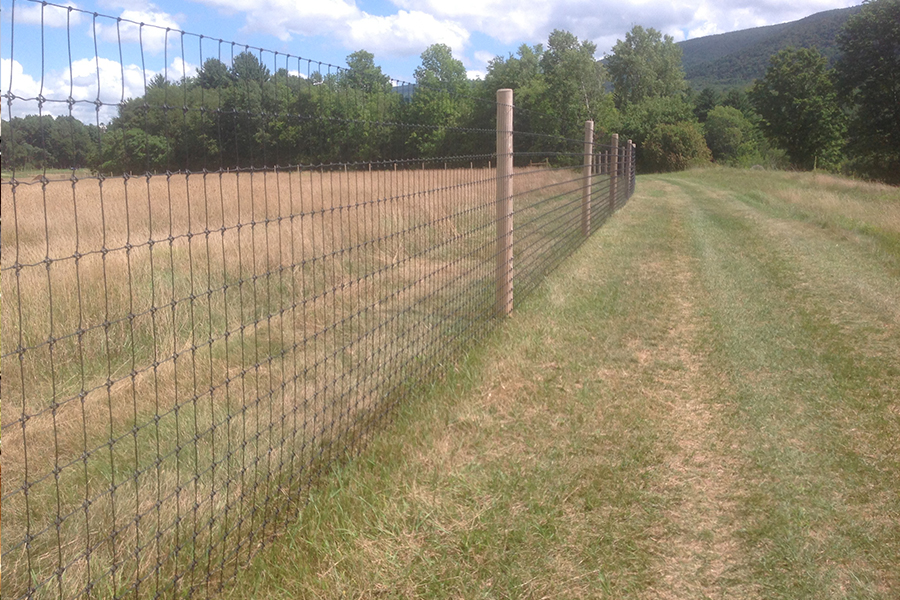

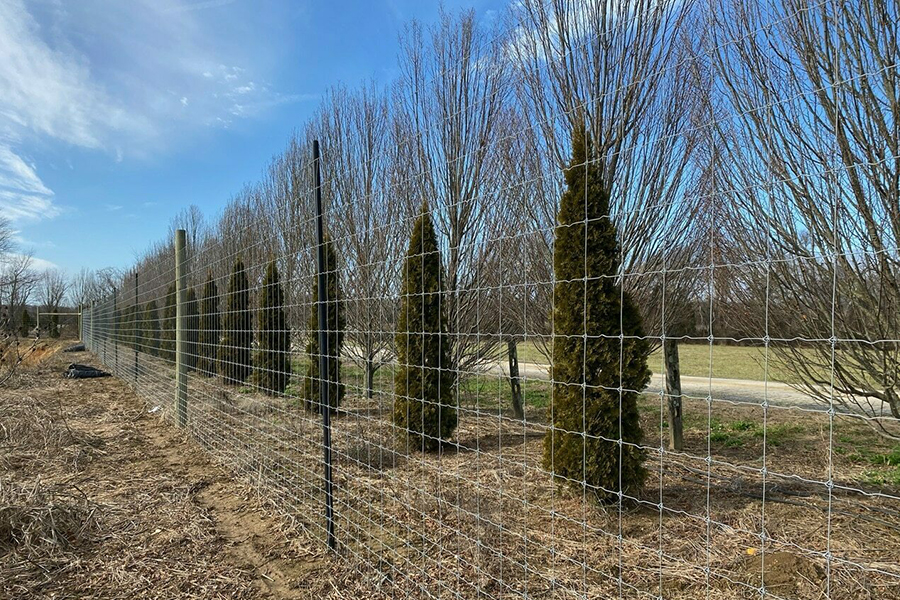

Field fence can be used with stakes, wood timber and other post. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

● Material: High quality high carbon steel wire, low carbon steel wire.

●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m and 1.8m.

● Knot type: Hinge joint type, tight lock knot type.

● Surface treatment: hot dipped galvanized, electro galvanized.

● Main market: Malaysia, Australia, Peru, North America and Africa.


Specifications Chart:

No.ItemSpecificationThe top and bottom wires diameterThe middle wires diameterRoll diameter
1.7/150/813/50102+114+127+140+152+1782.52.0280
2.8/150/813/5089(75)+89+102+114+127+140+1522.52.0280
3.8/150/902/5089+102+114+127+140+152+1782.52.0280
4.8/150/1016/50102+114+127+140+152+178+2032.52.0280
5.8/150/1143/50114+127+140+152+178+203+2292.52.0280
6.9/150/991/5089(75)+89+102+114+127+140+152+1782.52.0280
7.9/150/1245/50102+114+127+140+152+178+203+2292.52.0280
8.10/150/1194/5089(75)+89+102+114+127+140+152+178+2032.52.0280
9.10/150/1334/5089+102+114+127+140+152+178+203+2292.52.0280
10.11/150/1422/5089(75)+89+102+114+127+140+152+178+203+2292.52.0280
Note: the item numbers: the first number means the number of wire of width; the second number means distance of horizontal wires (mm); the third number means the height of mesh(mm);the fourth number means length of mesh(m). we can also produce the mesh according to the customers special requirements.



Knot types:


Hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.


Tight lock design feature ensures that the load of any impact will spread and dissipate of the full height of the fence and for some distance of either side.

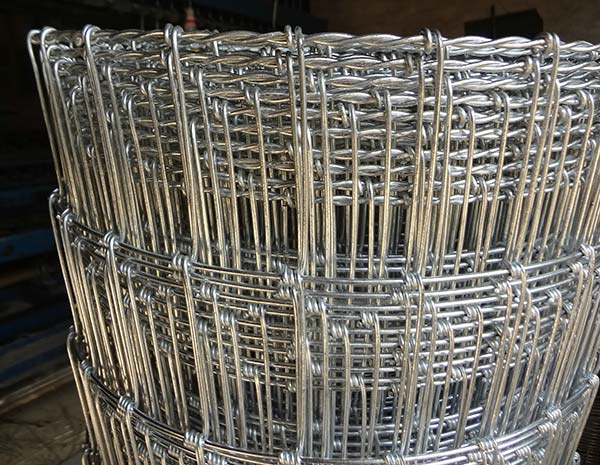

Twisted edge wire makes the fence to be more tension strength

The addition of tension curves to line wires allow any impact load on the fence to spread along the line and stay wire.

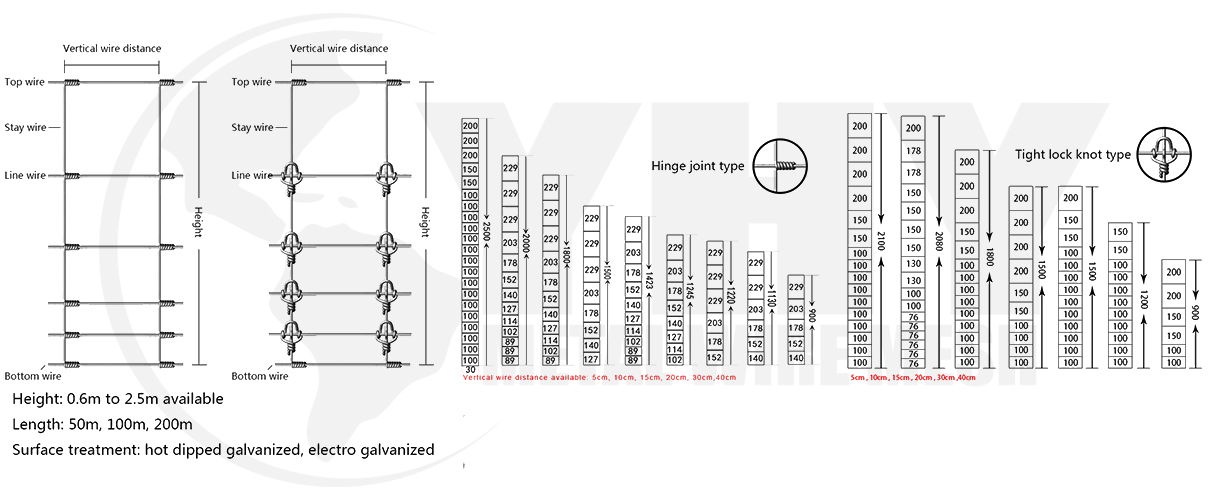

Specifications Drawing:

Field Fence


Production Processing Photo and Video...




Knowledge

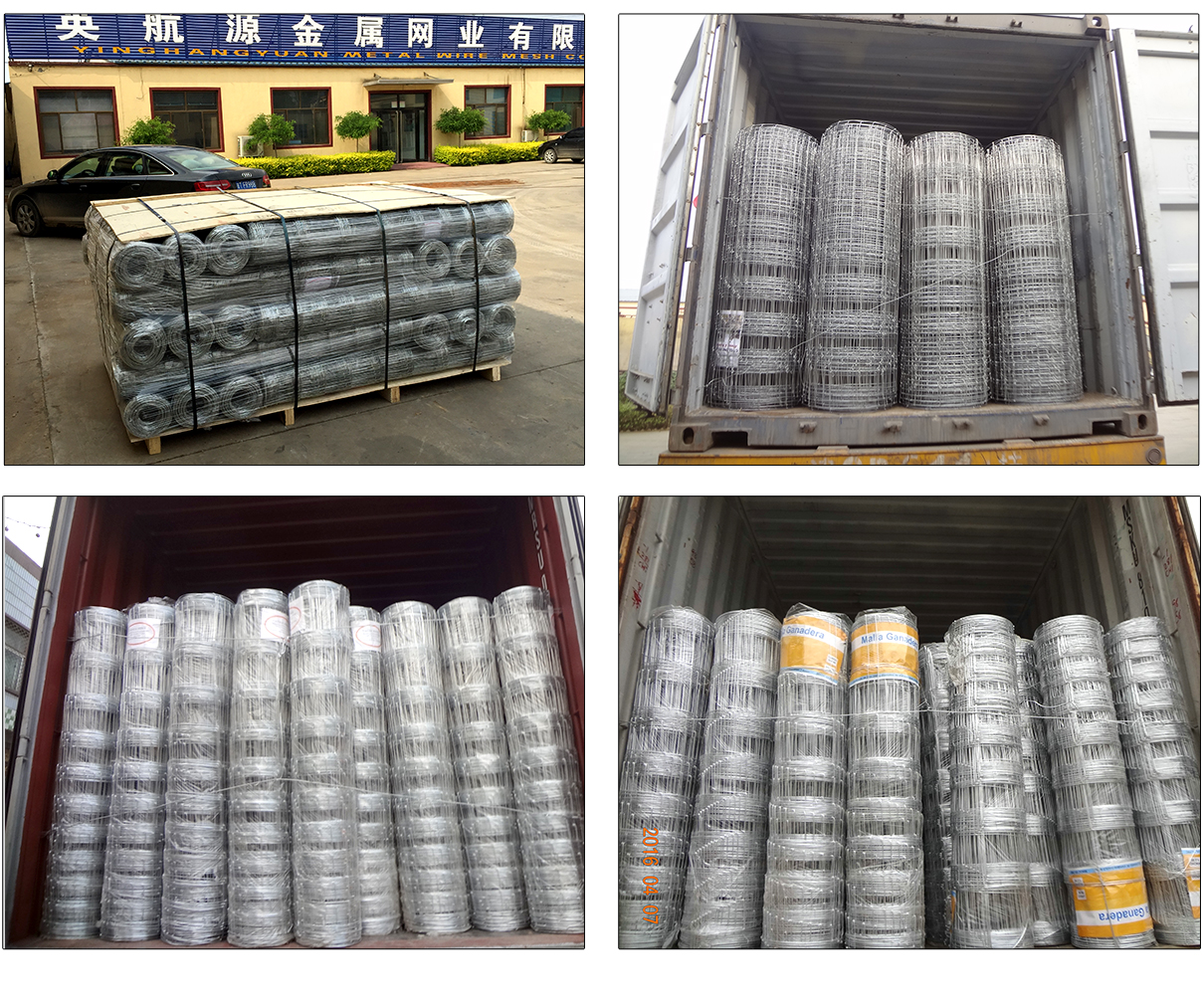

Packaging

Field Fence
