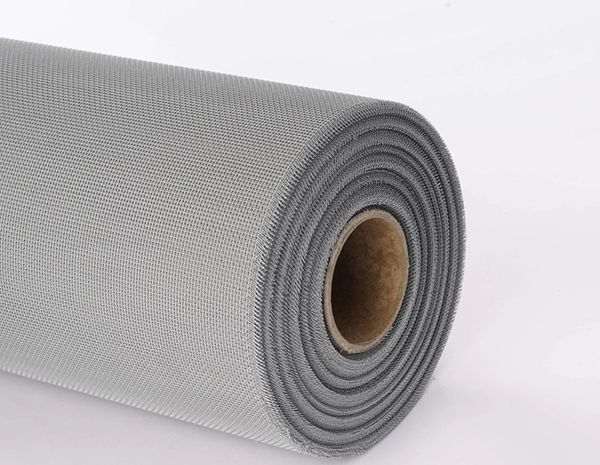

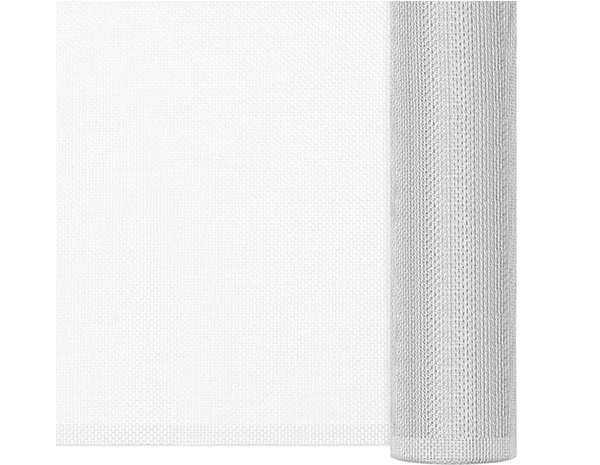

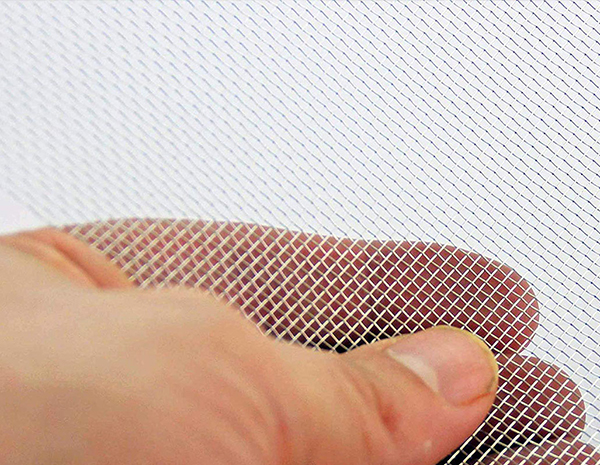

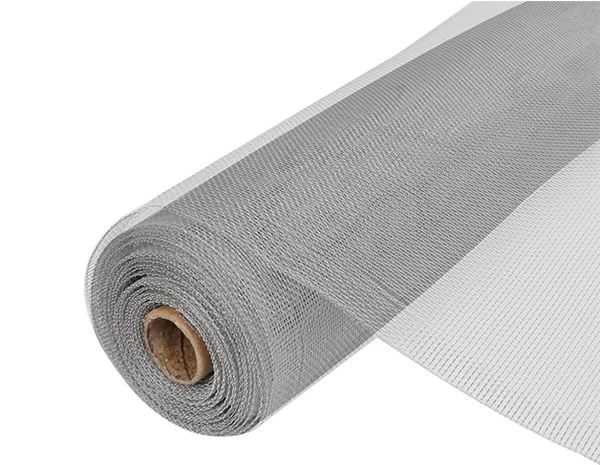

Aluminum Window Fly Screen Mesh

Aluminum window screen with powder coated layer offers good anti-corrosion property.

Inquire Now Next Product

Aluminum window screen with powder coated layer offers good anti-corrosion property. It has lighter weight, higher strength and longer service life than ordinary nylon screen. Typical mesh size is 18 mesh × 16 mesh, 0.23 mm diameter. Because of the features of never rust, great ventilation and good sealing, sound insulation effect, it's suitable for most window and door applications in everyday life to prevent mosquitoes and eliminate noises. And we supply aluminum window screen products in rolls or cut pieces.

Feature：

High strength and light weight.
Corrosion resistant, never rust.
Great ventilation and sound insulation effect.
Anti mosquitoes and flies.
Anti-dust, effectively isolate flying dust.
Durable and easy to install and clean.

Knowledge

Materia	Aluminum wire.
Surface treatment	Powder coated.
Color	Black, white, gray, silver, and other colors also available as your request.
Weave type	Plain weave.
Typical mesh size	18 mesh × 16 mesh, 0.25 mm diameter.
Supplied form	Rolls or pieces
Cleaning	Use a vacuum cleaner or a soft brush to wipe.
Guarantee	2 years.

Table 1: Common Specifications of Aluminum Window Screen

Item	Size (mesh)	Wire Diameter (mm)	Width (m)	Length (m)
AWS-01	12 × 12	0.28	0.6 to 1.5	30
AWS-02	14 × 14	0.25	0.6 to 1.5	30
AWS-03	16 × 14	0.25	0.6 to 1.5	30
AWS-04	16 × 16	0.25	0.6 to 1.5	30
AWS-05	18 × 16	0.25	0.6 to 1.5	30
AWS-06	18 × 16	0.23	0.6 to 1.5	30
AWS-07	18 × 16	0.22	0.6 to 1.5	30
AWS-08	18 × 16	0.21	0.6 to 1.5	30
AWS-09	18 × 18	0.25	0.6 to 1.5	30
AWS-10	18 × 18	0.23	0.6 to 1.5	30
AWS-11	18 × 18	0.22	0.6 to 1.5	100
Note: 20 × 20, 22 × 22, 30 × 30 mesh size (mesh), 0.15–0.475 mm wire diameter, and other screen sizes can be produced as your request.

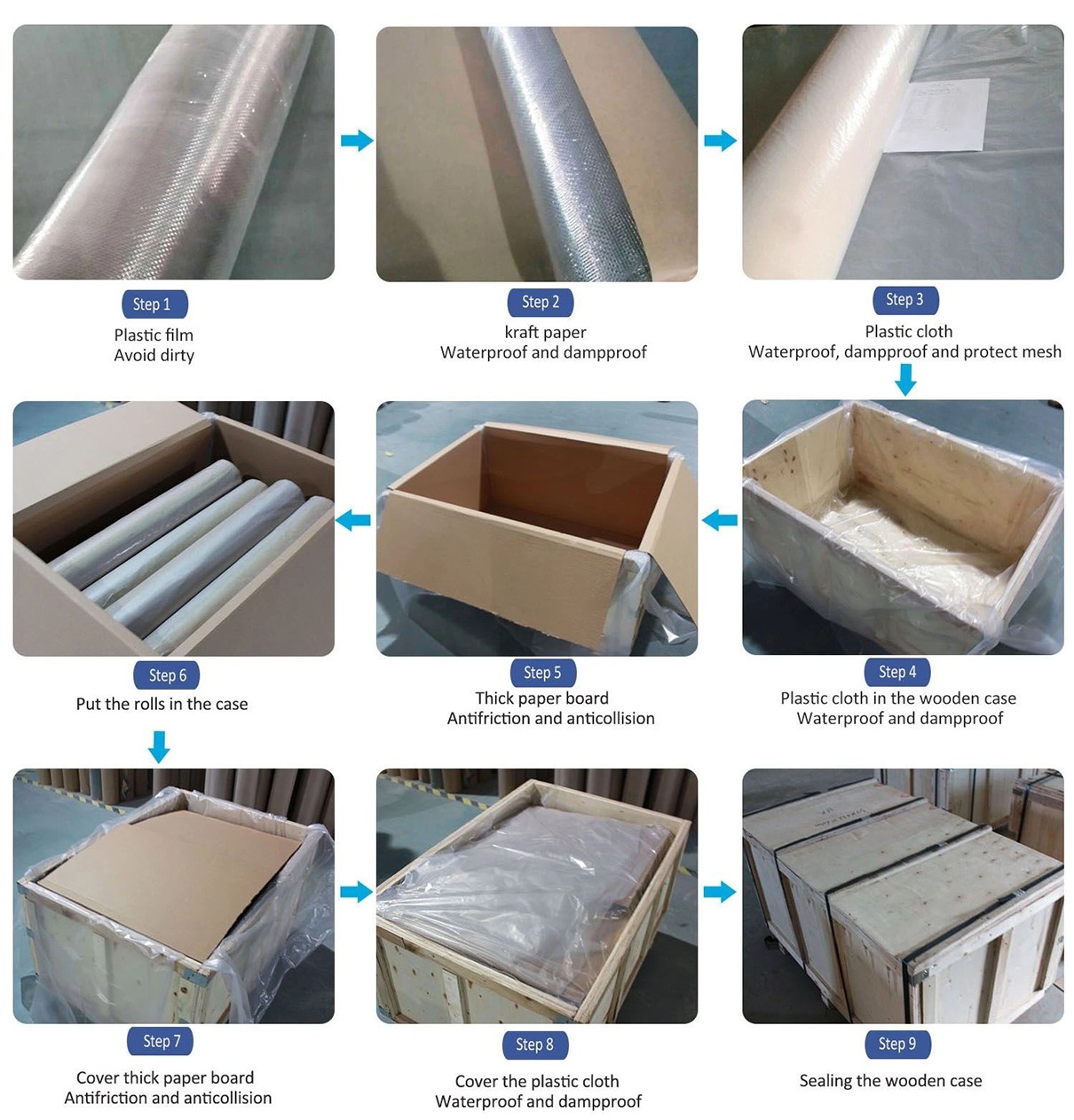

Packaging

Aluminum Window Fly Screen Mesh

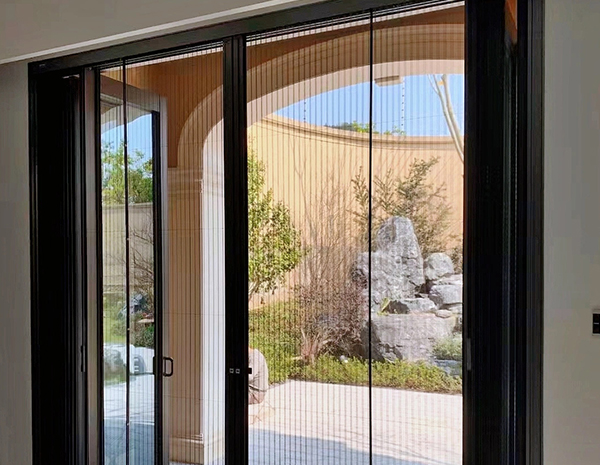

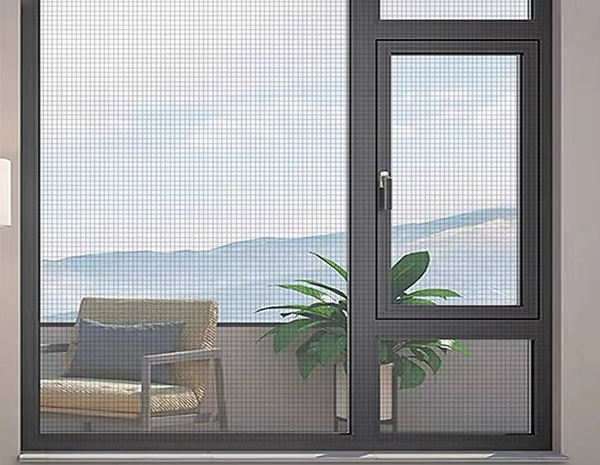

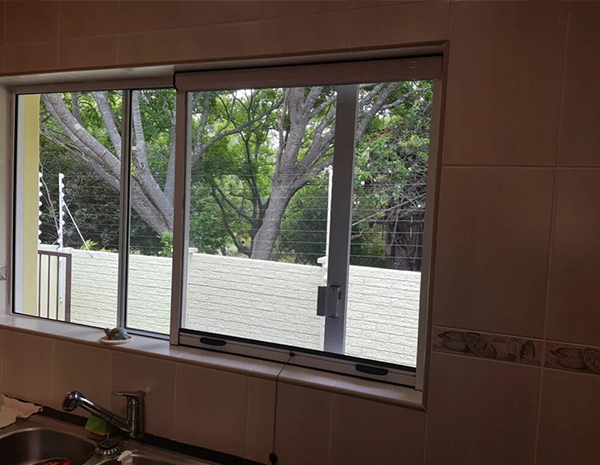

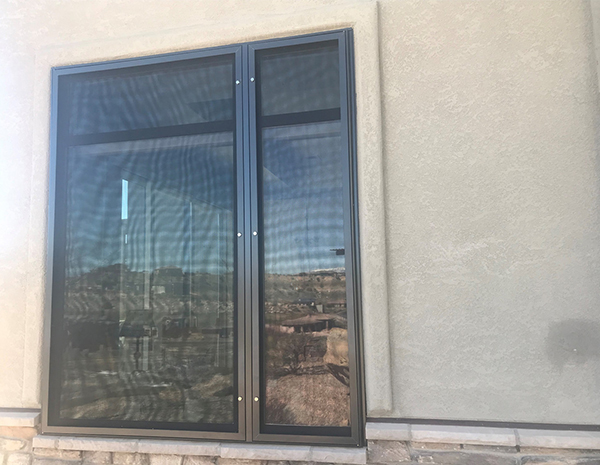

Application
