Excellent Flexibility Stainless Steel Rope Mesh for Zoo

Stainless Steel Rope Mesh – Resilient Fabric with Aesthetic Appeal

• Light weight, good softness and high flexibility.   • High strength, resistant to fatigue and impact. • Excellent rust-resistance, recyclable and durable. • Outstanding perspective and grand appearance.  • Maintenance-free and environmentally friendly.

Architectural rope Mesh, also called rope wire mesh, similar to architectural expanded mesh and architectural ring mesh, is one type of decorative wire mesh. Stainless steel architectural cable mesh for tensile architectural projects that combines protection and aesthetic design.

Generally, the architectural rope mesh is made of stainless steel but aluminum is also available. It is a product made of high-quality raw material and weaved, stretched and stamped through a special process. Stainless steel rope mesh has unique characteristics that allow design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful and is a perfect combination of modern science and art.

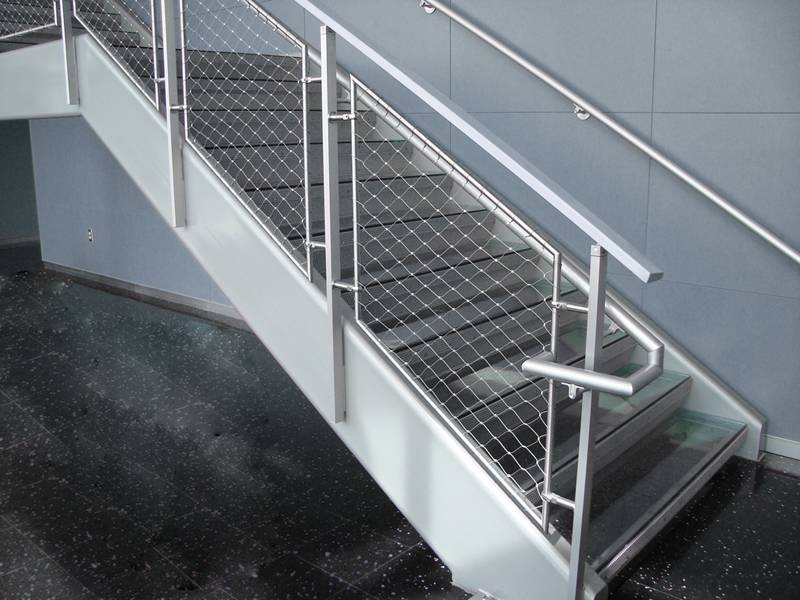

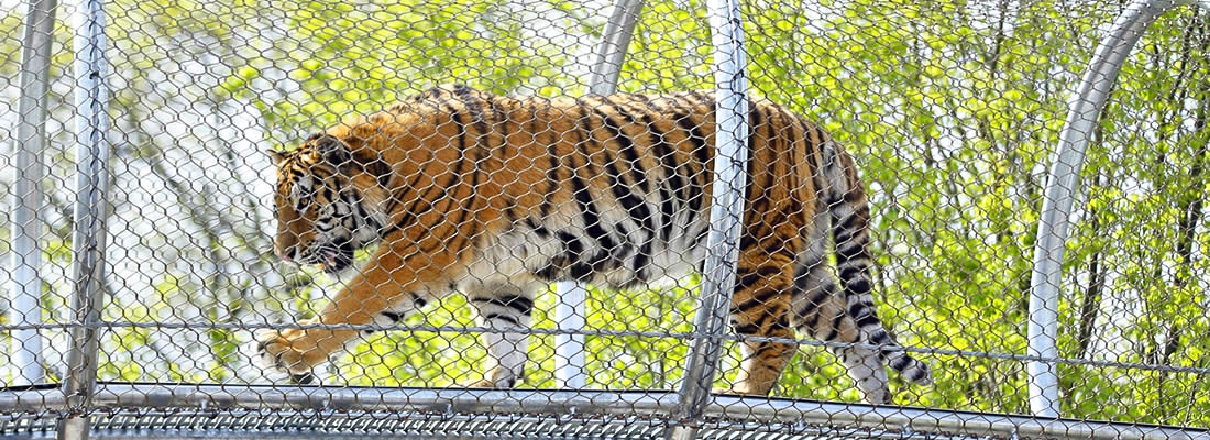

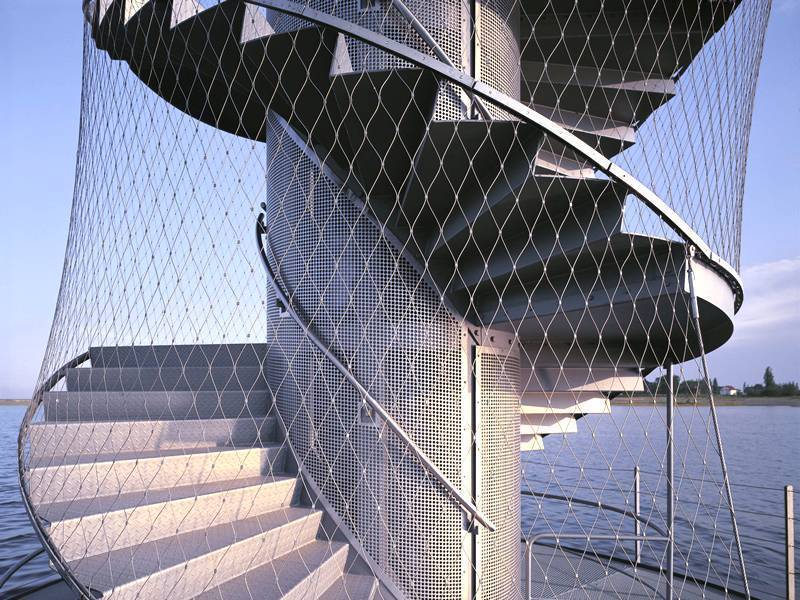

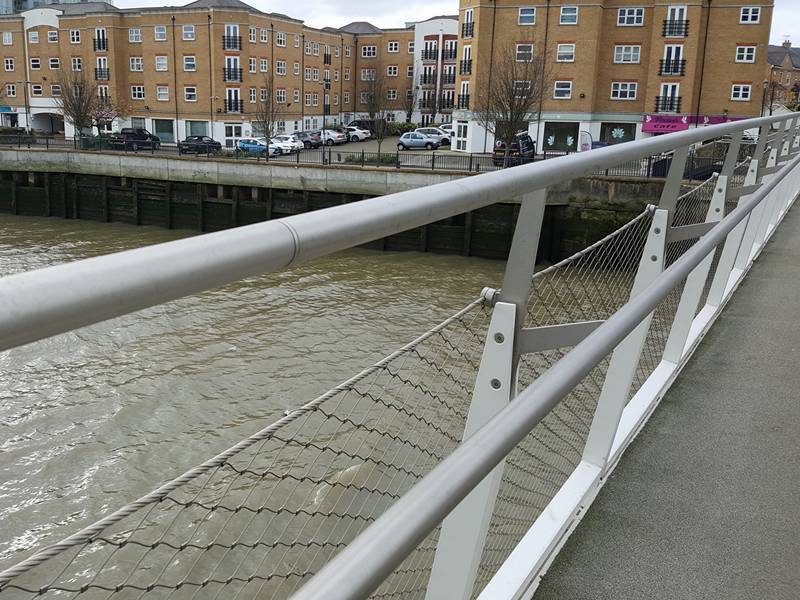

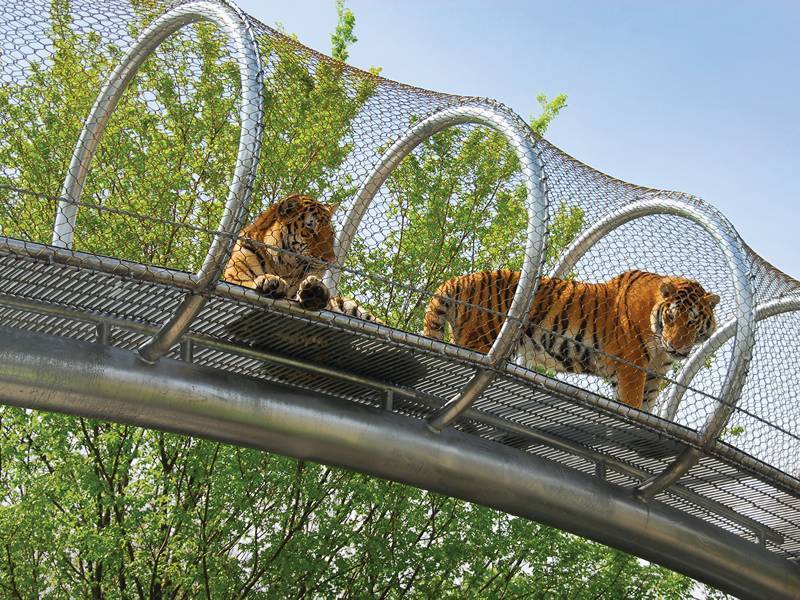

Stainless steel rope mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill systems, zoo enclosures, tensile facade, safety netting and green wall systems.

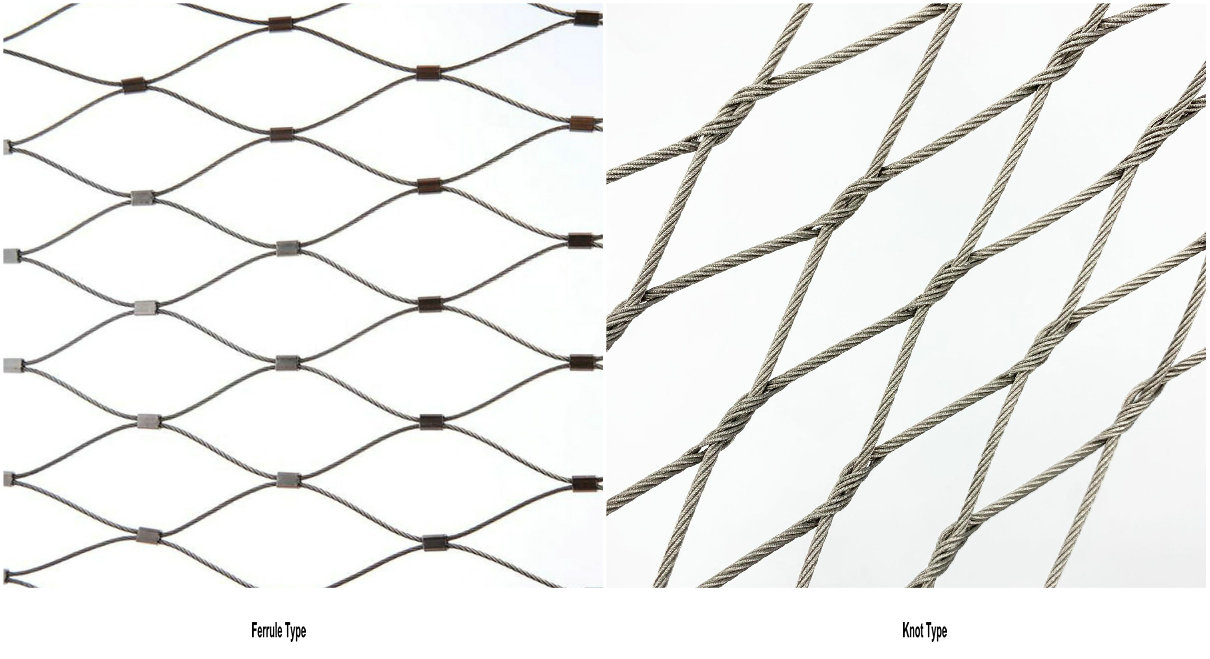

Stainless steel rope mesh woven types:

Specification:

Material: Stainless steel wire.

Steel grade: 304, 304L, 316, 316L.

Surface treatment: silver or black oxide finish.

Structures of wire cable: 7 × 7 and 7 × 19.

Cable diameter: 1.0-5.0 mm.

Aperture size: 20-200 mm, generally 2" x 2", 3" x 3" and 4" x 4".

Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.

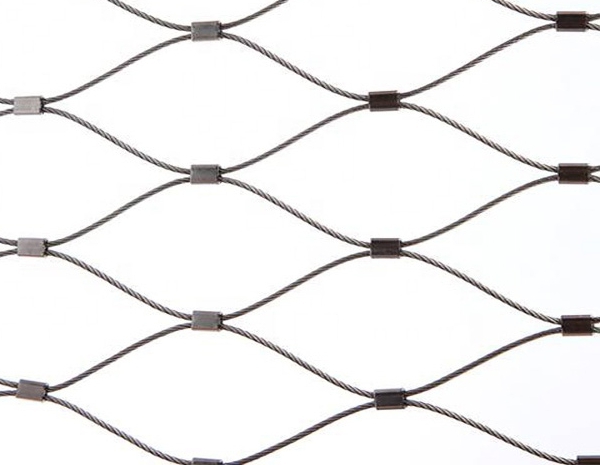

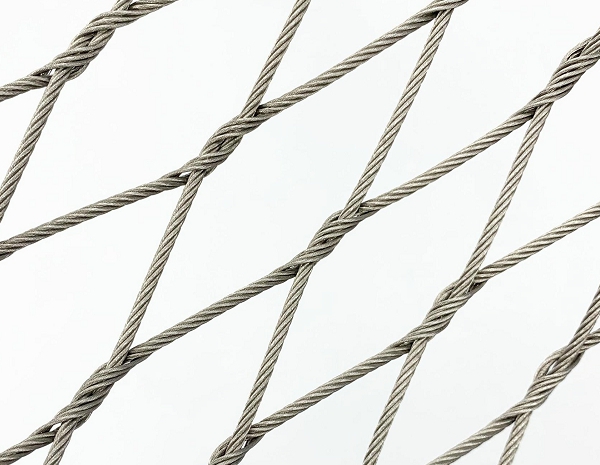

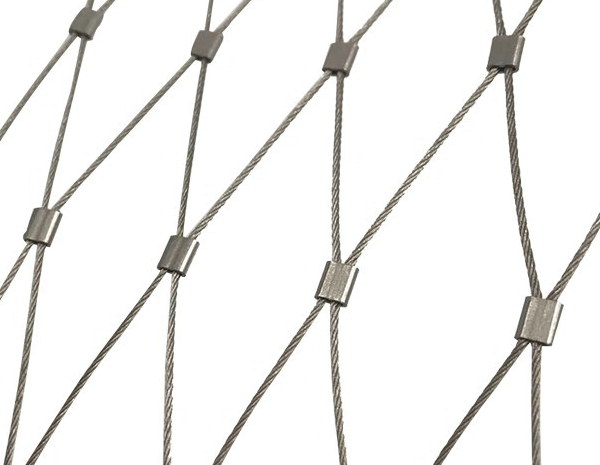

Connection type: knot type, ferrule type.

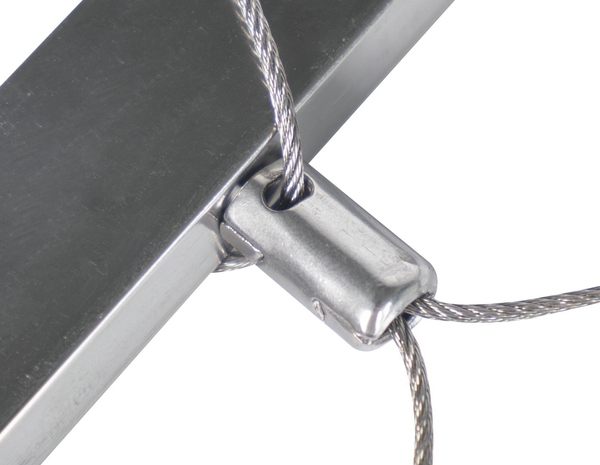

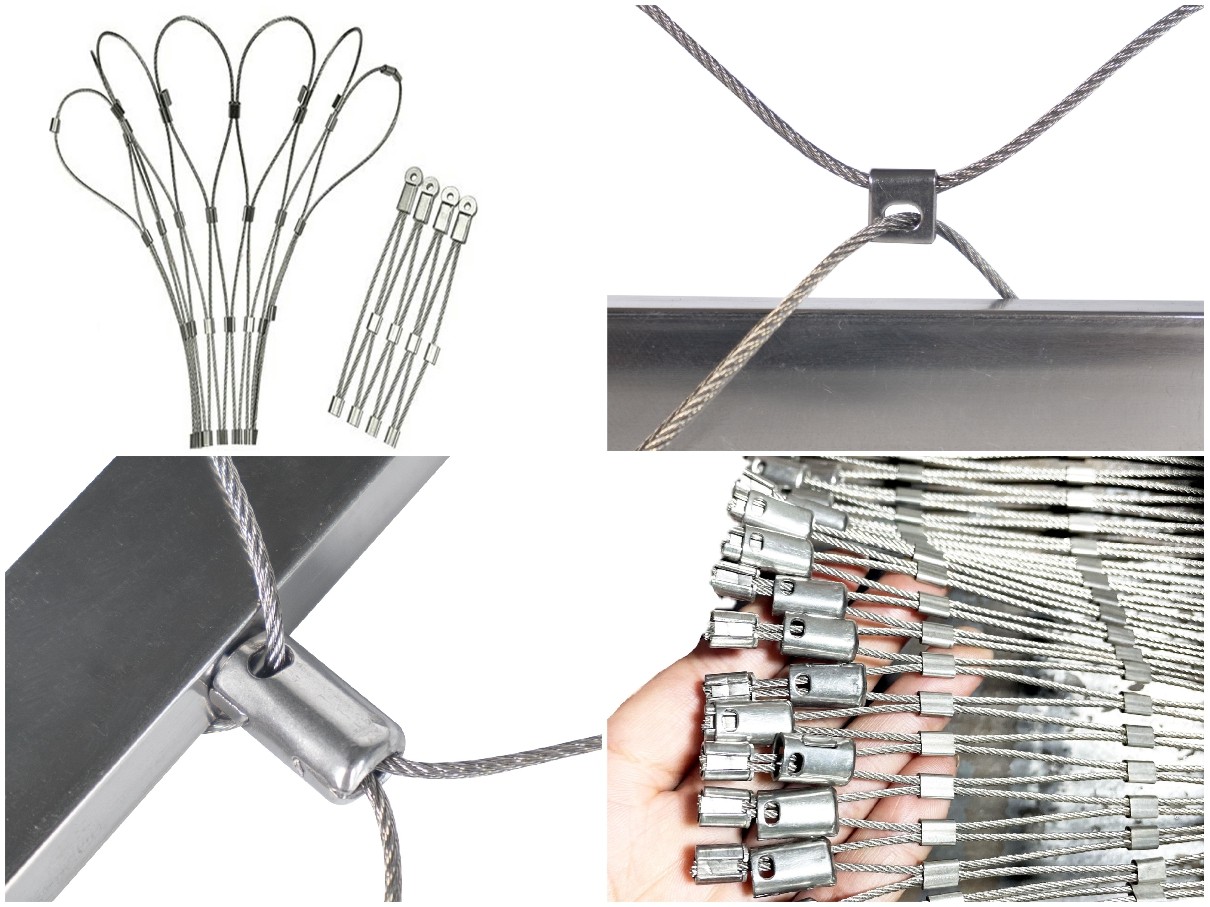

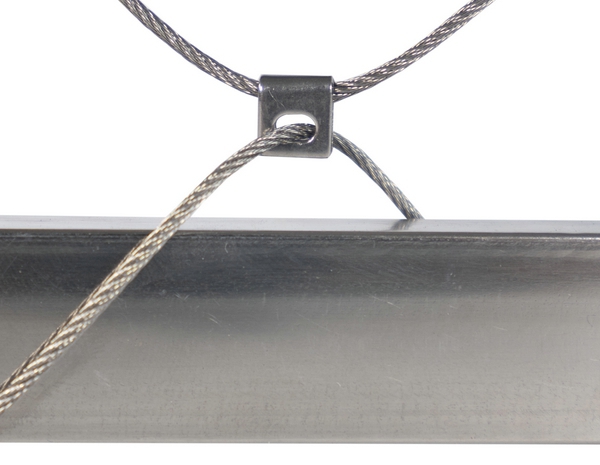

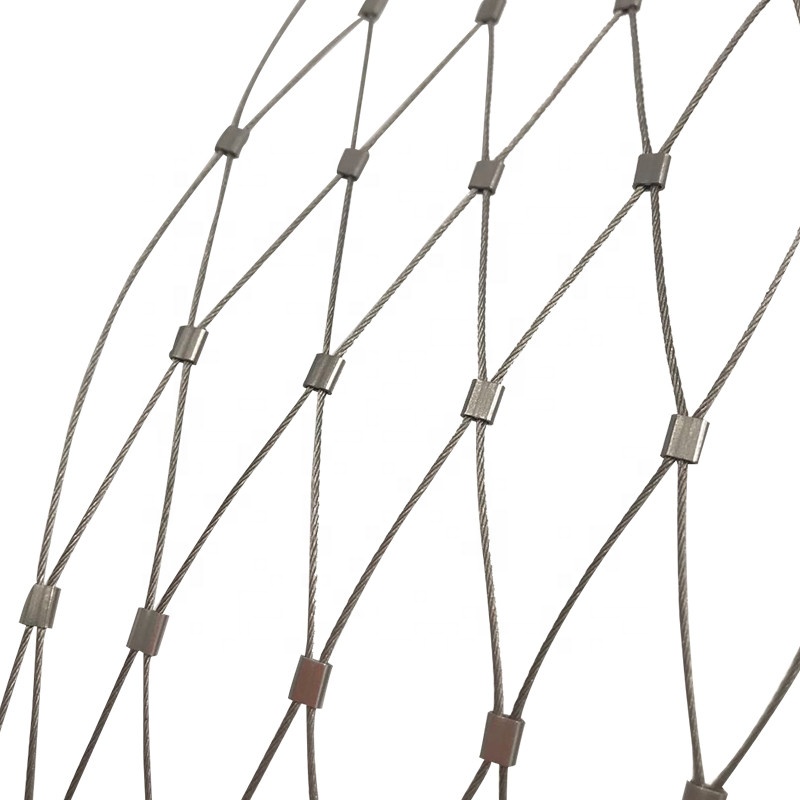

Detail photo:

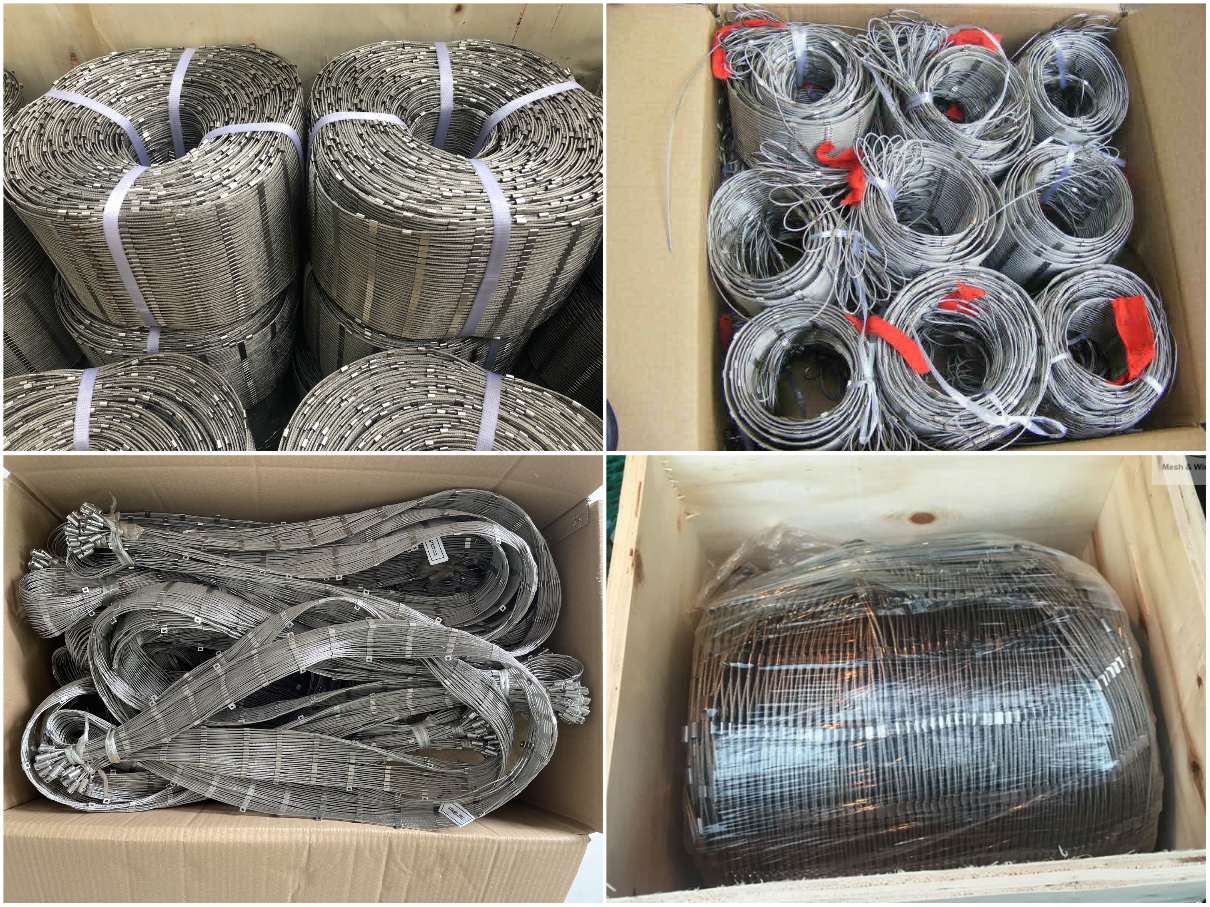

The inner packing is water-proof cloth and the outer packing is wooden cases.

Fixed stainless steel rope mesh into a bundle with strings.

Packed according to customers' requirements.

The Transportation available:

1. Ship by sea, load the cargo into the container.

2. Ship by air,  the cargo packaged by wooden case.
