How to select the appropriate screen for different materials

In the mining, quarrying, sand and gravel processing, coal, metallurgy, and building materials industries, screens are key components affecting screening efficiency and production stability. Vibrating screens separate materials of different particle sizes, bringing the raw materials to the specifications required for subsequent processing or sales. However, in actual production, many users find that the same screen performs significantly differently with different materials. Some screens operate stably for extended periods, while others are prone to wear, clogging, or even breakage.

The main reason for this difference lies in the different physical properties of different materials. The hardness, particle size, shape, moisture content, and abrasiveness of the material directly affect the screen's lifespan and screening efficiency. Therefore, selecting the appropriate screen is not simply a matter of determining a mesh size, but requires a comprehensive assessment based on the specific material characteristics and the production environment.

Selecting a screen with suitable wear resistance based on material hardness

Material hardness is one of the important factors affecting screen lifespan. In the mining industry, many materials, after crushing, exhibit strong impact and abrasiveness, such as granite, basalt, iron ore, and various hard ores. During the operation of a vibrating screen, these materials constantly impact and rub against the screen surface. If the screen material is not strong enough, wire wear, breakage, and enlarged screen openings can easily occur.

For high-hardness, highly abrasive materials, screens with high wear resistance are typically required. For example, high-carbon steel wire mesh and 65Mn steel screen mesh are widely used in mining screening. These materials have high tensile strength and wear resistance, capable of withstanding long-term, high-intensity material impacts, making them more suitable for screening crushed stone, ore, and building aggregates.

In contrast, for materials with lower hardness, such as limestone, coal, or ordinary sand, the requirements for screen wear resistance are relatively lower, and a more economical screen solution can be selected based on screening accuracy and production costs.

Choose a screen with better anti-clogging performance based on material moisture content

Besides hardness, the moisture content of the material is also a crucial factor affecting screening efficiency. Many problems in the screening process are not due to insufficient screen strength, but rather to material adhering to the screen openings and causing blockage.

For example, materials such as wet sand, clay, wet coal, and muddy ore easily adhere to each other during the operation of a vibrating screen, gradually clogging the screen openings. When the effective screening area decreases, the equipment's processing capacity drops significantly, and the frequency of manual cleaning increases.

For these materials, ordinary woven screens may not achieve ideal results; therefore, screens with self-cleaning capabilities are usually required. For example, self-cleaning screens use a special structural design that allows the screen wires to elastically change during vibration, reducing the possibility of material getting stuck in the screen openings. In addition, polyurethane screens are widely used for screening wet materials due to their good elasticity and wear resistance.

Match the screen opening size appropriately according to the material particle size

Screen opening size is one of the core parameters determining screening effectiveness. Different materials and different production stages require different screen mesh sizes.

In the coarse crushing and primary screening stages, material particles are typically larger, requiring screens with high load-bearing capacity. Therefore, larger screen mesh sizes and thicker wire structures are usually chosen to ensure smooth material passage while withstanding greater impact forces.

In the fine screening stage, however, greater emphasis is placed on screening accuracy. More precise mesh sizes need to be selected based on the final product requirements. If the mesh size is too small, while it may improve screening accuracy, it may reduce material throughput and increase the risk of clogging; if the mesh size is too large, the desired grading effect cannot be achieved.

Therefore, in practical applications, the mesh size needs to be considered in conjunction with the material particle size, equipment vibration frequency, and production requirements, rather than simply pursuing smaller mesh sizes.

Different materials require different screen mesh materials.

The screen mesh material also determines the product's performance. Currently, common industrial screen meshes mainly include metal woven mesh, polyurethane mesh, and special structure screens.

For the mining and aggregate industries, high-carbon steel screens and 65Mn steel screens are the most widely used choices. These screens offer good wear resistance and impact resistance, meeting the screening needs of most ores and aggregates.

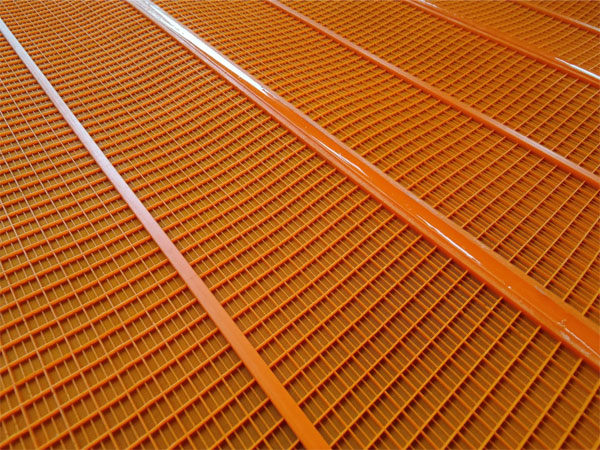

For applications requiring reduced noise, less clogging, and extended service life, polyurethane screens are increasingly becoming an important option. They offer good elasticity, reducing material adhesion during screening and lowering equipment operating noise.

For industries with high corrosion resistance requirements, such as food processing, chemical filtration, and specialized industrial screening, stainless steel screens offer even greater advantages.

Choosing the right screen structure based on the production environment:

Besides the material itself, the equipment operating environment also influences screen selection. For example, when screening stone, if the equipment has a large throughput and strong vibration, the screen needs higher structural strength; if the production line needs to operate continuously for extended periods, the screen's wear life should be prioritized.

Furthermore, the screen's installation method, tensioning structure, and equipment model must also be matched with the screen. A well-designed screen not only improves screening efficiency but also reduces equipment downtime and maintenance, lowering long-term operating costs.

Choosing the right screen requires comprehensive consideration of material characteristics, production requirements, and equipment conditions. High-hardness materials necessitate attention to wear resistance, while wet materials require anti-clogging capabilities. Different particle size requirements necessitate a proper match between screen aperture size and screen structure.

No single screen is suitable for all materials. Only by selecting one based on the actual application environment can the screen's performance advantages be fully realized, improving screening efficiency and extending its service life.

As a professional screen manufacturer, we offer a variety of solutions tailored to different customer screening needs, including high-carbon steel screens, 65Mn screens, crimped wire mesh screens, polyurethane screens, and self-cleaning screens, helping customers choose the screening product best suited to their production conditions.
