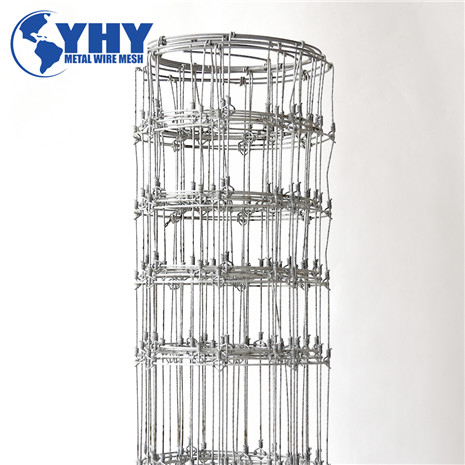

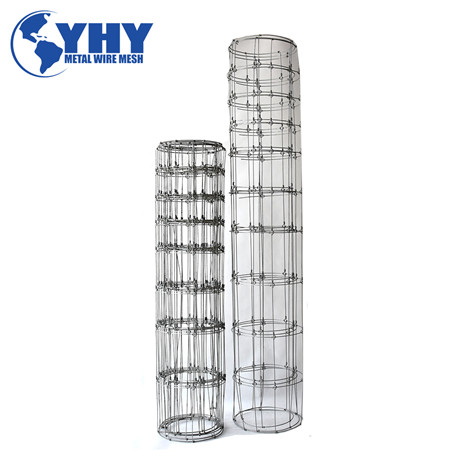

1.55m Height Galvanized 15cm Vertical Wire Distance 100m long fixed knot field fence

Min Order Quantity: 50 rolls Sample: Free Application: Fixed-knot field fence, mainly made of high carbon steel wire, is also called the game fence, deer fence. It is featured by the solid knot, which combines the hinge joint knot structure. the fixed knot fence options suitable for virtually any application on the farm or ranch.

Share:
Detail Description

Field Fence/Page Wire


Field fence can be used with stakes, wood timber, and another post. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

● Material: High-quality high carbon steel wire, low carbon steel wire.

●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m, and 1.8m.

● Knot type: Hinge joint type, tight lock knot type.

● Surface treatment: hot-dipped galvanized, electro-galvanized.

● Main market: Malaysia, Australia, Peru, North America, and Africa.


Specifications Chart:

No. Item Specification The top and bottom wires diameter The middle wires diameter Roll diameter
1. 7/150/813/50 102+114+127+140+152+178 2.5 2.0 280
2. 8/150/813/50 89(75)+89+102+114+127+140+152 2.5 2.0 280
3. 8/150/902/50 89+102+114+127+140+152+178 2.5 2.0 280
4. 8/150/1016/50 102+114+127+140+152+178+203 2.5 2.0 280
5. 8/150/1143/50 114+127+140+152+178+203+229 2.5 2.0 280
6. 9/150/991/50 89(75)+89+102+114+127+140+152+178 2.5 2.0 280
7. 9/150/1245/50 102+114+127+140+152+178+203+229 2.5 2.0 280
8. 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 2.5 2.0 280
9. 10/150/1334/50 89+102+114+127+140+152+178+203+229 2.5 2.0 280
10. 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 2.5 2.0 280
Note the item numbers: the first number means the number of wire of width; the second number means the distance of horizontal wires (mm); the third number means the height of mesh(mm); the fourth number means the length of mesh(m). we can also produce the mesh according to the customers' special requirements.

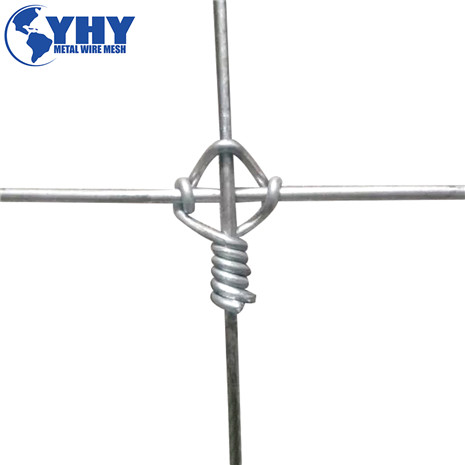

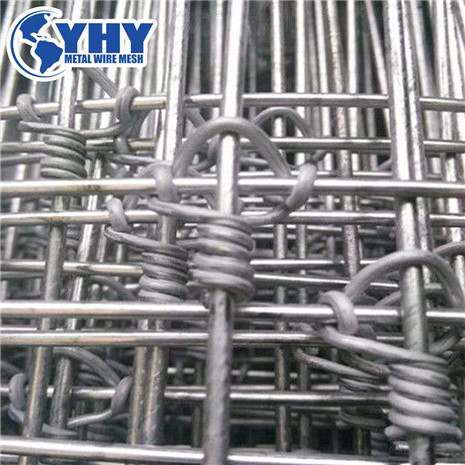

Knot types:


The hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.


The tight lock design feature ensures that a load of any impact will spread and dissipate of the full height of the fence and for some distance of either side.

Twisted edge wire makes the fence to be more tension strength

The addition of tension curves to line wires allow any impact load on the fence to spread along the line and stay wire.


Specifications Drawing:

Field Fence


Production Processing Photo and Video...





Knowledge

1.55m Height Galvanized 15cm Vertical Wire Distance 100m long fixed knot field  fence1.55m Height Galvanized 15cm Vertical Wire Distance 100m long fixed knot field  fence

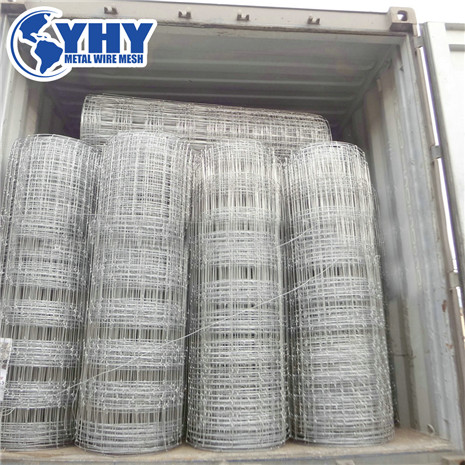

Packaging

Field Fence


Application
