  • Galvanized Welded Mesh Roll Simple Fence
  • Galvanized Welded Mesh Roll Simple Fence
  • Galvanized Welded Mesh Roll Simple Fence
  • Galvanized Welded Mesh Roll Simple Fence

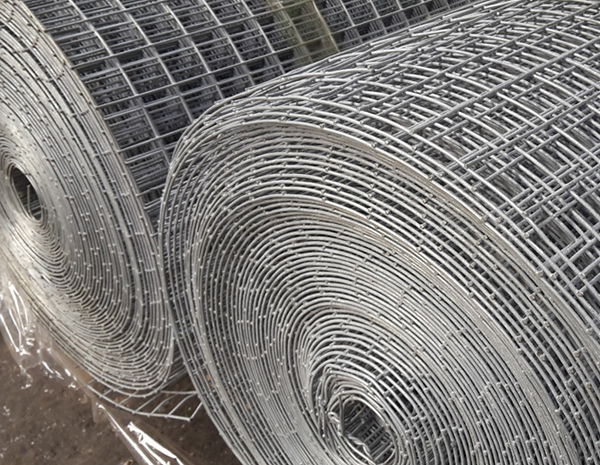

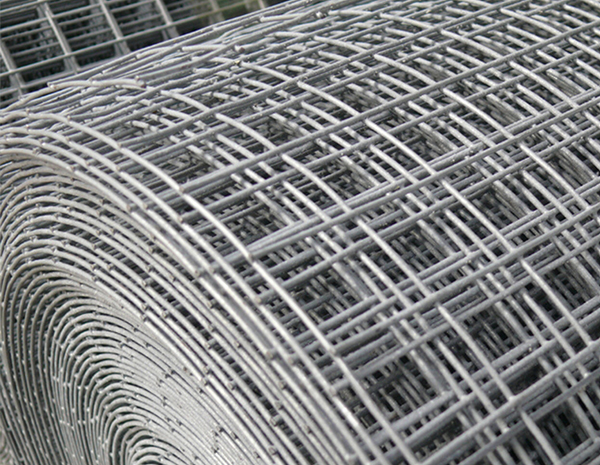

Galvanized Welded Mesh Roll Simple Fence

The welded wire mesh coil is made of high-quality low-carbon steel wire (hot-dip galvanized wire, cold-galvanized wire, cold-drawn wire, modified wire) through precise automatic mechanical welding.

Share:
Detail Description

The welded wire mesh coil is made of high-quality low-carbon steel wire (hot-dip galvanized wire, cold-galvanized wire, cold-drawn wire, modified wire) through precise automatic mechanical welding.

Feature:

1.The surface coated by zinc, it can be rusty-resistance, make it longer use life.

2.Strong welding and high shear resistance.

Knowledge

Material: Galvanized iron wire, low carbon steel wire, PVC coated wire, Stainless steel wire.

Roll Width: 24 inch, 36 inch, 1 Metre, 48 inch, 72 inch or 84 inch

Roll Length: 100 feet or 150 feet

Note: other roll width or roll length can be made according to request.

Mesh SizeWire Gauge Diameter
In MMIn InchBWG No.MM
6.4mm1/4InchBWG24-220.56mm- 0.71mm
9.5mm3/8InchBWG23-190.64mm - 1.07mm
12.7mm1/2InchBWG22-160.71mm - 1.65mm
15.9mm5/8InchBWG21-160.81mm - 1.65mm
19.1mm3/4InchBWG21-160.81mm - 1.65mm
25.4x 12.7mm1 x 1/2InchBWG21-160.81mm - 1.65mm
25.4mm1InchBWG21-140.81mm - 2.11mm
38.1mm1 1/2InchBWG19-141.07mm - 2.11mm
25.4x 50.8mm1 x 2InchBWG17-141.47mm - 2.11mm
50.8mm2InchBWG16-121.65mm - 2.77mm
50.8mm to 305mm2 to 12InchAt Request

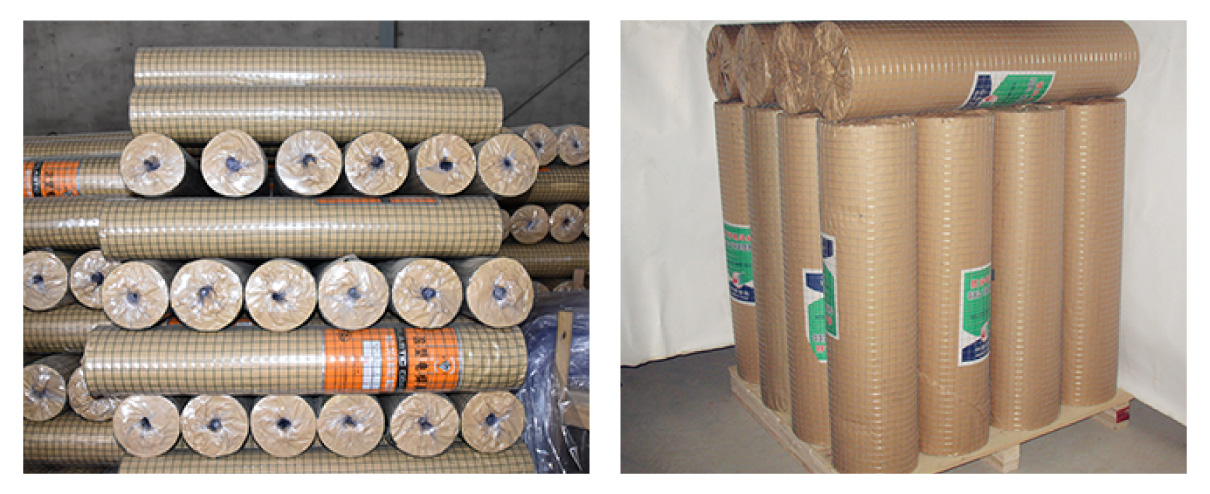

Packaging

According to customer requirements, provide different packaging.

1. Standard Packing---Bulk. The premise of not punching pallets saves space, packaging costs, and freight.

2. Customized packaging---Pallet. The cost is high, but the loading and unloading are convenient, saving labor costs.

3. Custom labels.

Warehousing: Our factory has a large warehouse, which is clean and dry. Can provide short-term storage mesh services.
