100mm Aperture with 5.6 mm Hot Dipped Galvanized Wire Welded Supporting Mesh for Gold Mine Mali Market

Min Order Quantity: 650pcs Price: 33-66 USD per pcs Sample: Free Application: Gold mine supporing mesh

Share:
Detail Description

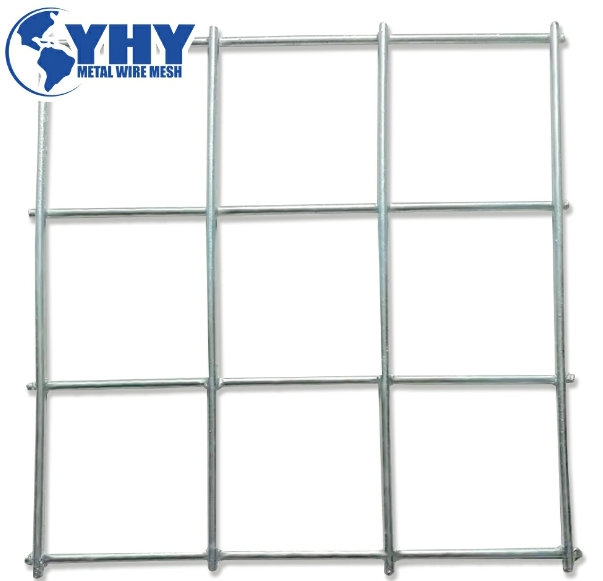

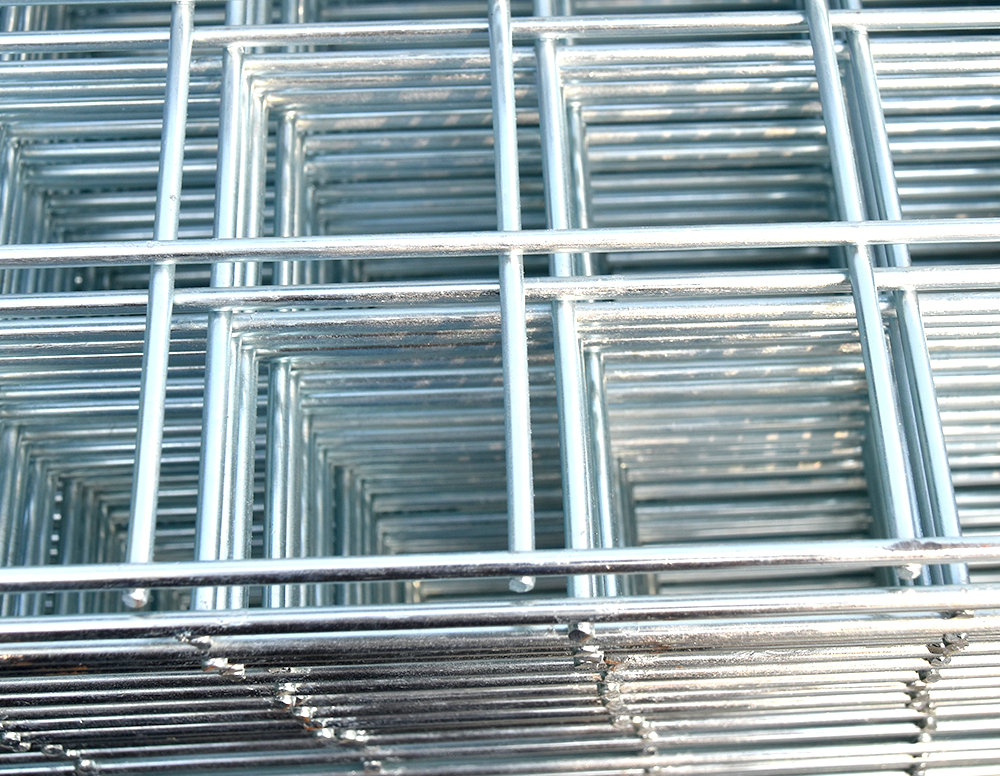

100mm 5.6 mm hot dipped galvanized welded gold mesh for Mali market

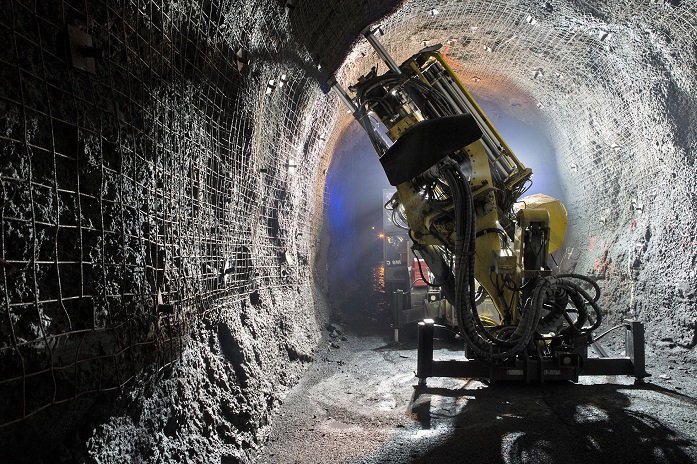

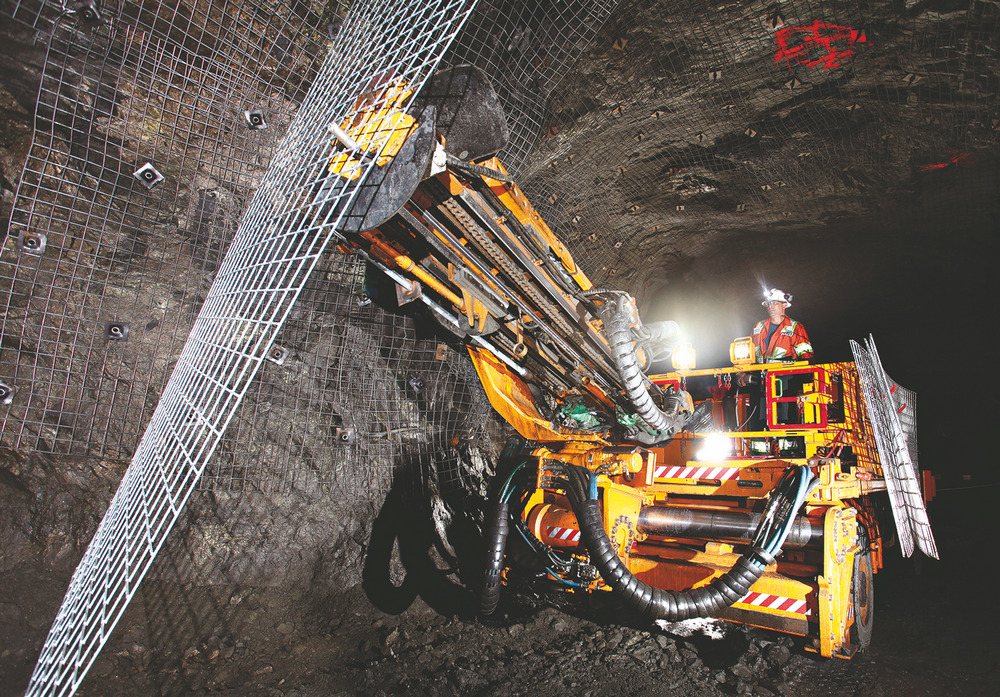

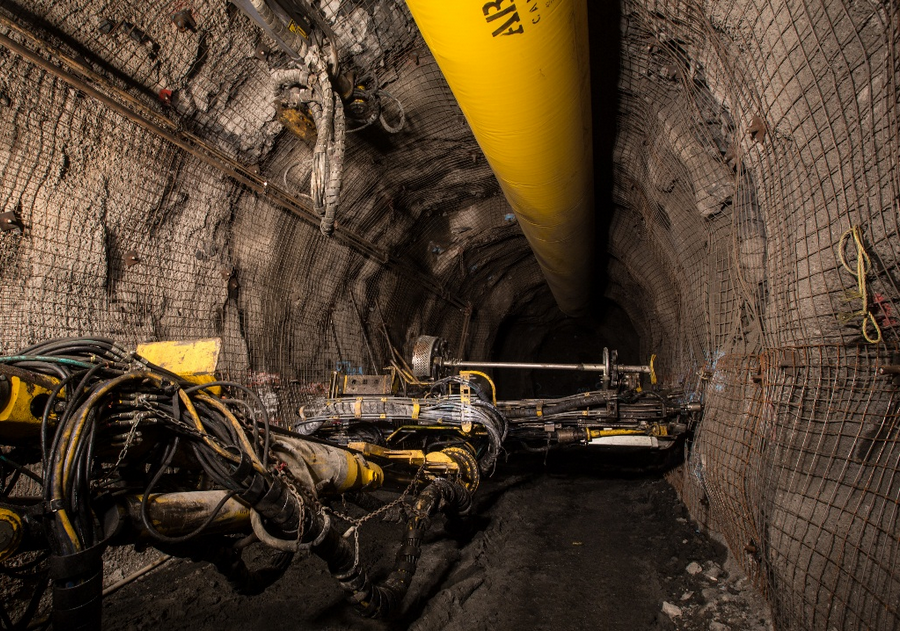

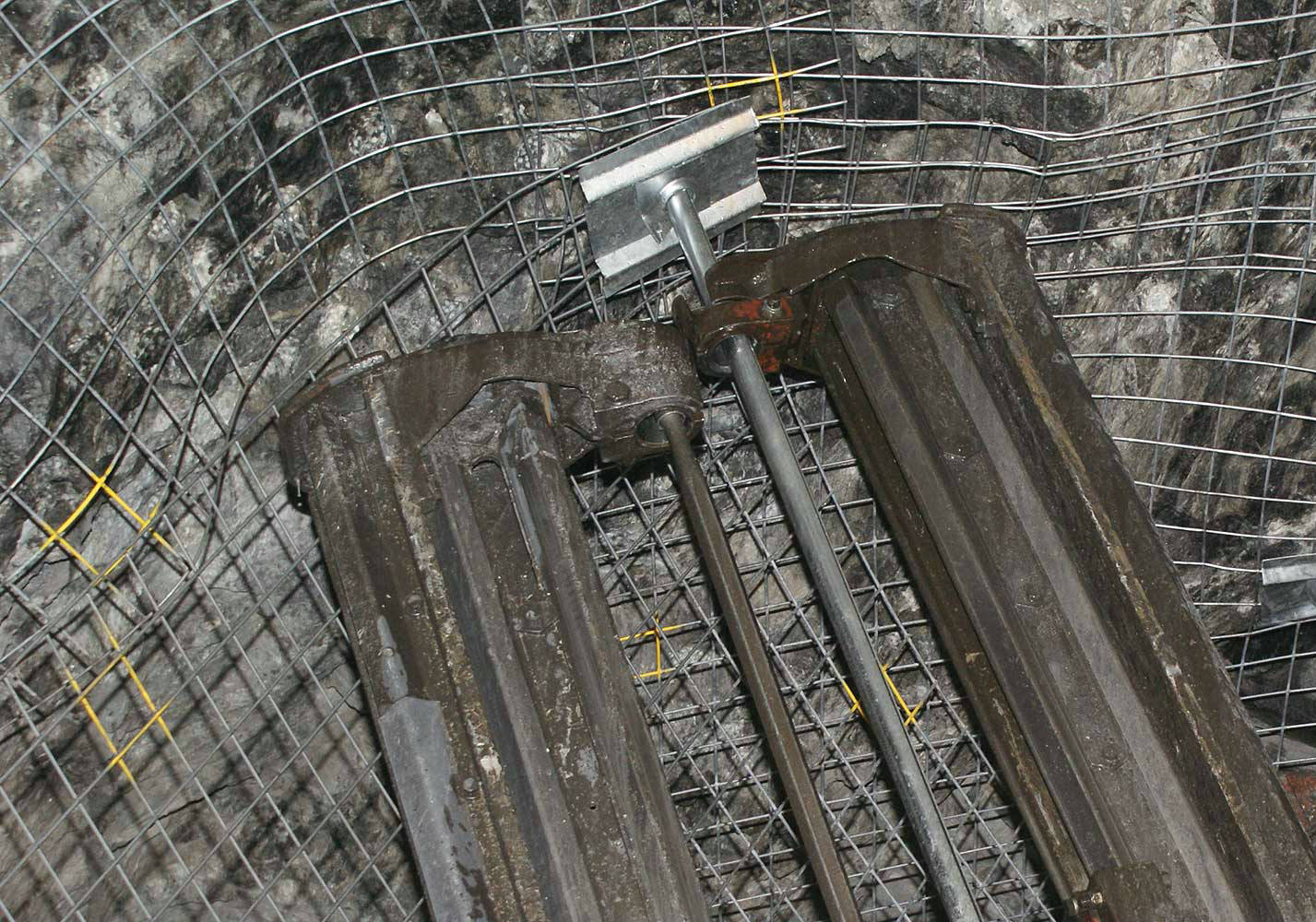

YHY supplies Welded Mesh which can be used for permanent areal coverage in any excavation in mines. The mesh can be fitted between rock bolts, or other support, to further consolidate the excavation and prevent the fallout of smaller rocks between support. This further improves safety underground for mining crews and also provides protection to machinery.

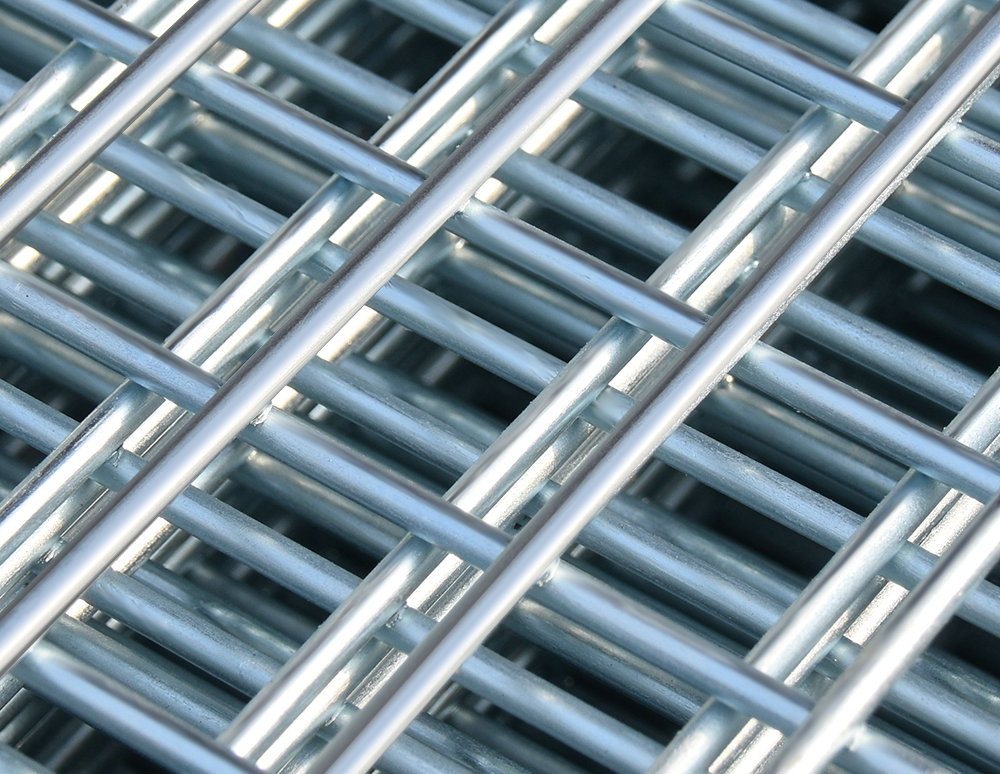

Welded mesh is provided in either Ø4.0mm wire, Ø5.6mm wire, or for a combination of the two diameters, also can make a much thicker wire diameter.

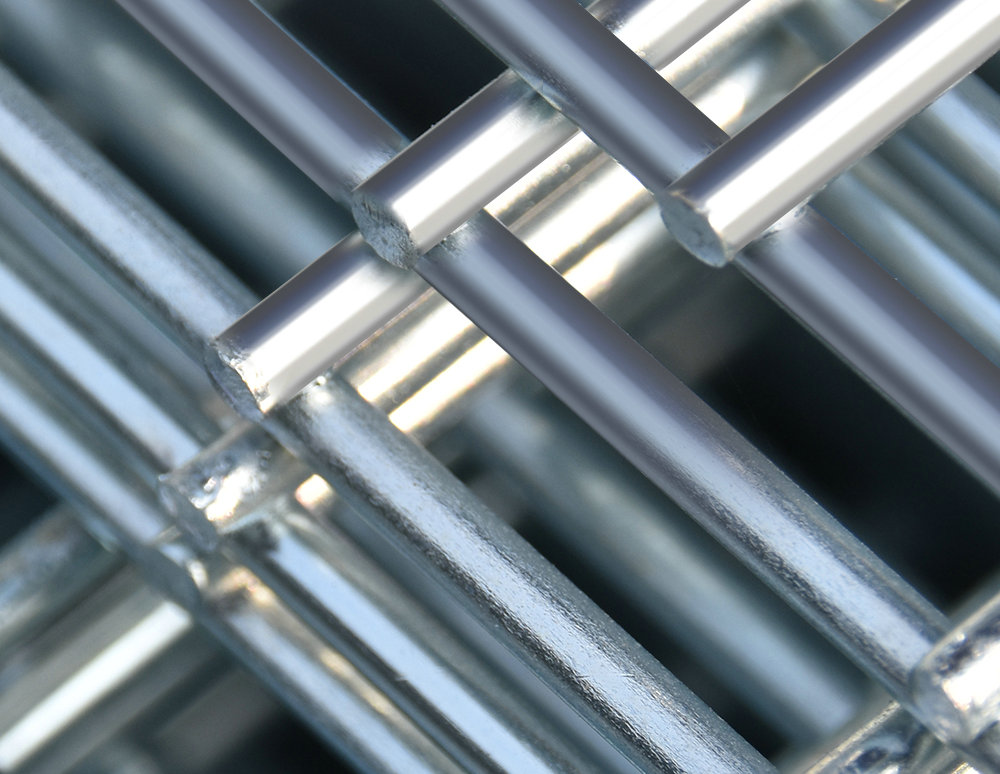

All mesh manufactured by YHY is produced according to strict quality standards to ensure the product meets industry safety requirements. Stringent testing of the weld integrity is performed to maximize the strength of the final product and all sheets are flush-cut smooth to reduce any risk of injury to operators during handling.


Knowledge

100mm 5.6 mm hot dipped galvanized gold mine welded supporting mesh for Mali market

Features

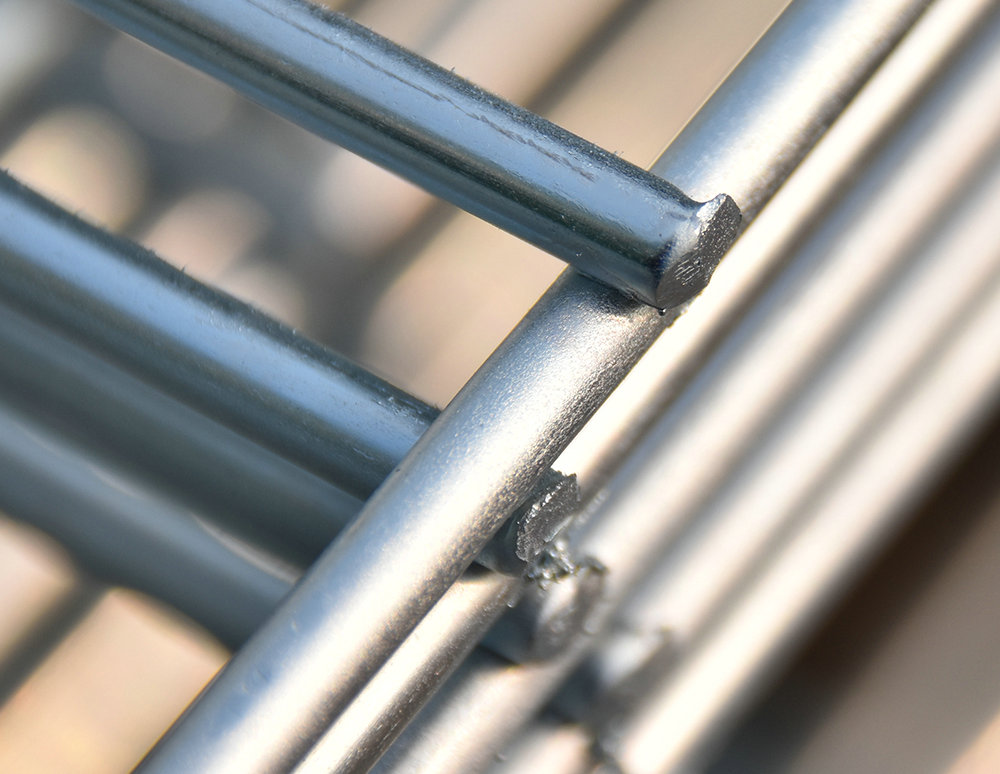

1.Trimmed edges to ensure there limited overhang of wire to cause injury when handling


2.Weld tests completed on all welders over continuous runs


3.Weld strength to be greater than 75% of the wire UTS


4.Wire diameters, spacing, and overall dimensions can be customized to suit particular applications


5.Customized paint lines along the modules to suit roof bolt patterns


6.Available as strap from 4mm to 8mm diameters


7.Custom sheets available with double or additional wires if requested







Specification sheet

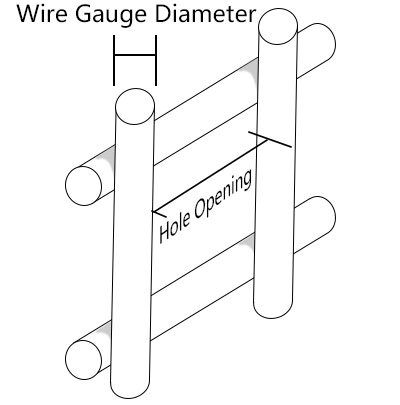

Wire Diameter

4mm

5mm

5.6mm

7mm

8mm

10mm

Weld Strength

4.7kN

7.4kN

9.2kN

14.4kN

18.9kN

29.5kN


Component

Strength

Standard

Wire

Yield = 500 - 750MPa

AS4671:2001 Grade 500L

Galvanizing

-

AS2423:2002 to type   W02Z


Packaging

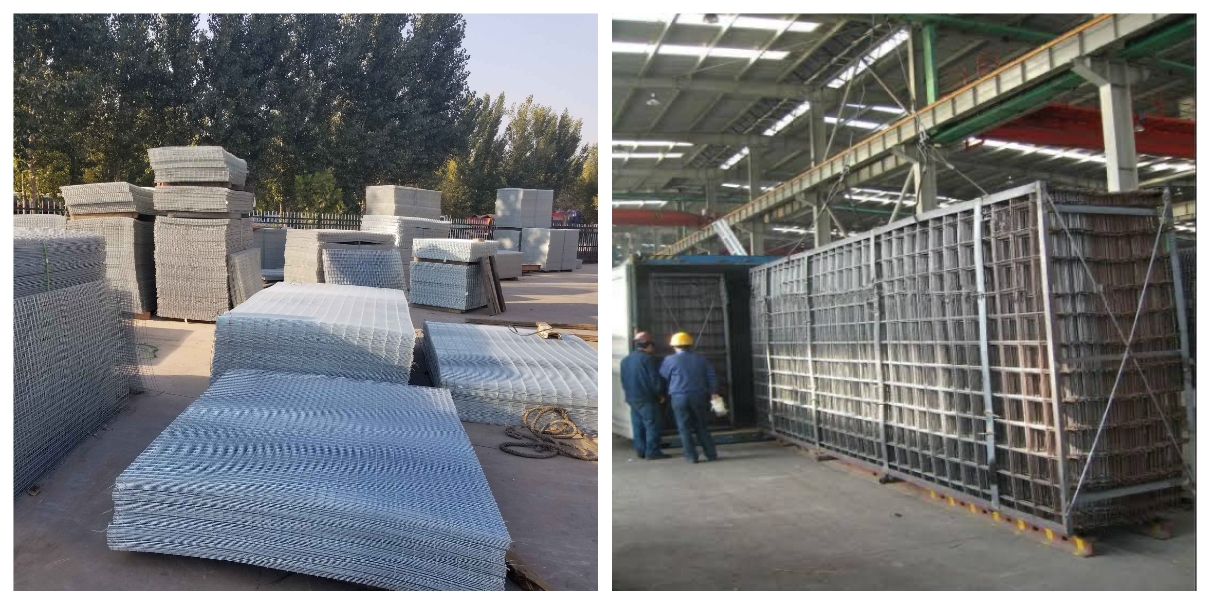

Steel or plastic strapping

Bundle sizes to suit the customer. Generally packs of 30

100mm 5.6 mm hot dipped galvanized welded gold mesh for Mali market

Application
  • Gold mine supporting mesh

  • Coal mine welded mesh sheet

  • Welded supporting mesh

  • iron mine support mesh sheet
