100x100mm hot dipped galvanied undergroung supporting welded mesh

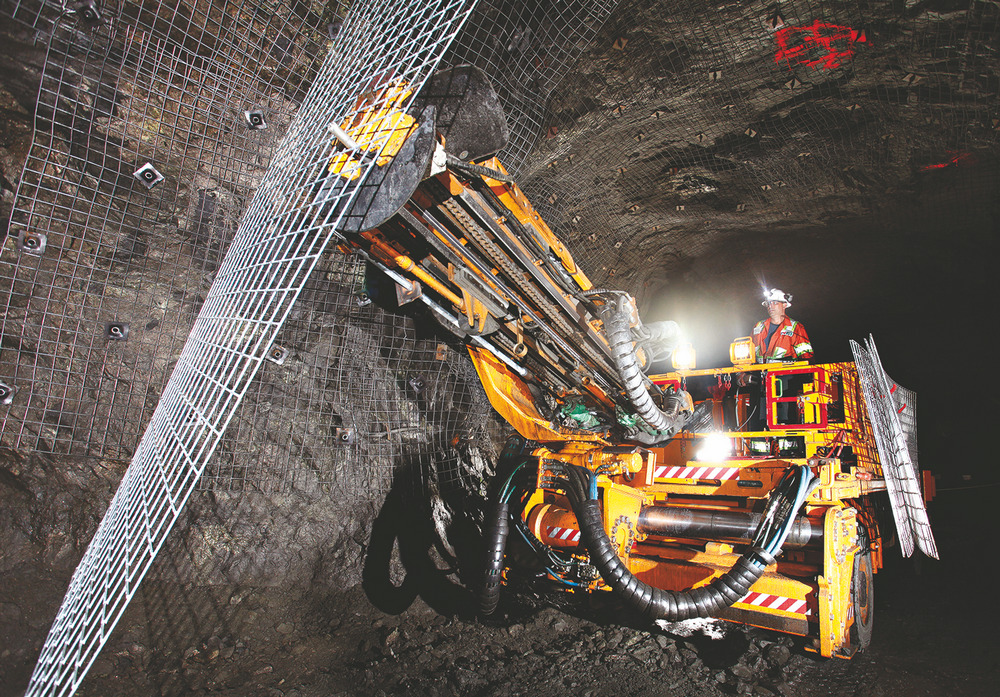

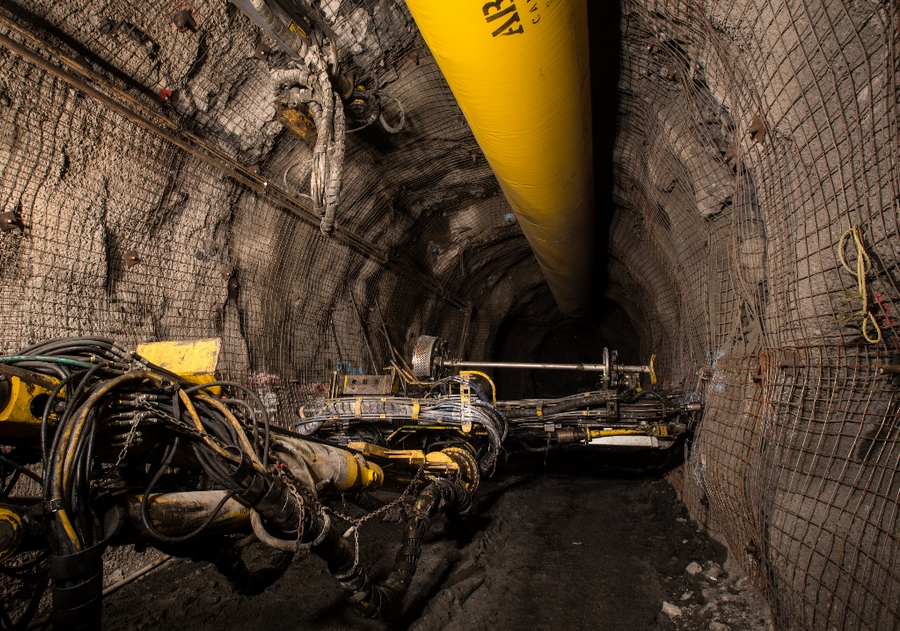

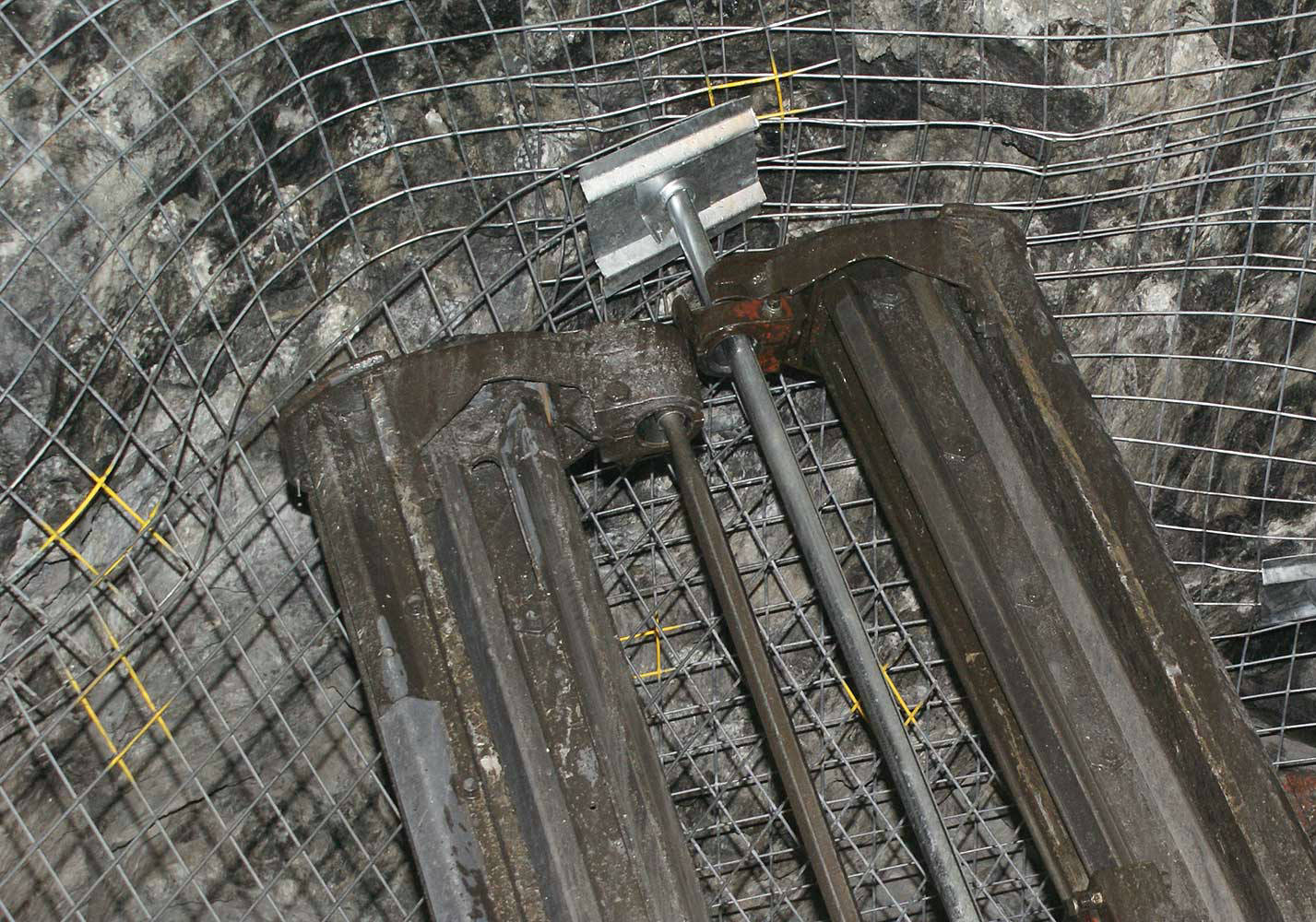

YHY supplies Welded Mesh which can be used for permanent areal coverage in any excavation in mines. The mesh can be fitted between rock bolts, or other support, to further consolidate the excavation and prevent the fallout of smaller rocks between support. This further improves safety underground for mining crews and also provides protection.

Share:
Detail Description

Features

  1. Turned edges for interlocking of modules and to maintain stiffness for ease of handling over the top of a continuous miner

  2. Reinforced areas for lateral linking of roof bolt across the strata

  3. Wire diameters, spacing, and overall dimensions can be customized to suit particular applications

  4. Customized paint lines along the modules to suit roof bolt patterns if required

Packaging
Steel or plastic strapping
Bundles sizes to suit the customer

Wire Diameter4mm5mm5.6mm7mm8mm10mm
Weld Strength4.7kN7.4kN9.2kN14.4kN18.9kN29.5kN



ComponentStrengthStandard
WireYield = 500 -750MPaAS4671:2001 Grade 500L
Galvanizing-AS2423:2002 to type W02Z


Knowledge

100x100mm hot dipped galvanied undergroung supporting welded mesh


Packaging

100x100mm hot dipped galvanied undergroung supporting welded mesh

Application
  • Gold mine supporting mesh

  • Coal mine welded mesh sheet

  • Welded supporting mesh

  • iron mine support mesh sheet
