Security Stainless Steel Mesh

Our factory is specialized in producing security window and doors screens, we have advanced testing equipment, raw materials can be detected, the tensile strength and elongation. The mesh with great precision weaving, uniform color and flat surface, not easy to break and cut, can meet Australian Standards and Laboratory Testing.

Share:
Detail description

Our factory is specialized in producing security window and doors  screens, we have advanced testing equipment, raw materials can be detected, the tensile strength and elongation.
The mesh with great precision weaving, uniform color and flat surface, not easy to break and cut, can meet Australian Standards and Laboratory Testing.


Our Testing Standards

1. Diagonal Deviation, strict controls of +/- 5mm
2. Fine Grinding - The Surface Treatment Of 0.03mm
3. Double Plain Weave High Hardness To Bulletproof
4. Precipitation Of Metal Cons ,Non Magnetic
5. Steel Wire After Micron Grade Precision Machining


Standards

1. Knife Shear Test(AS5039-2008)
2. Anti-Jemmy Test(AS509-2008)
3. Pull Test(AS5039-2008)
4. Durable more than 10 years(AS2331.31-2001)
5. 3006 Hour Salt Spray Tests, 534 hours UV Test
6. Aluminium Frame Tests
7. Stainless Mesh Tests


Material

1). AISI 304 stainless steel wire (normal material)
2). Marine grade 316 stainless steel wire ( advantage products)
3). High tensile marine grade 316 stainless steel wire ( core products)
4). 201 stainless steel wire, galvanized steel wire and low carbon steel wire( lower cost )

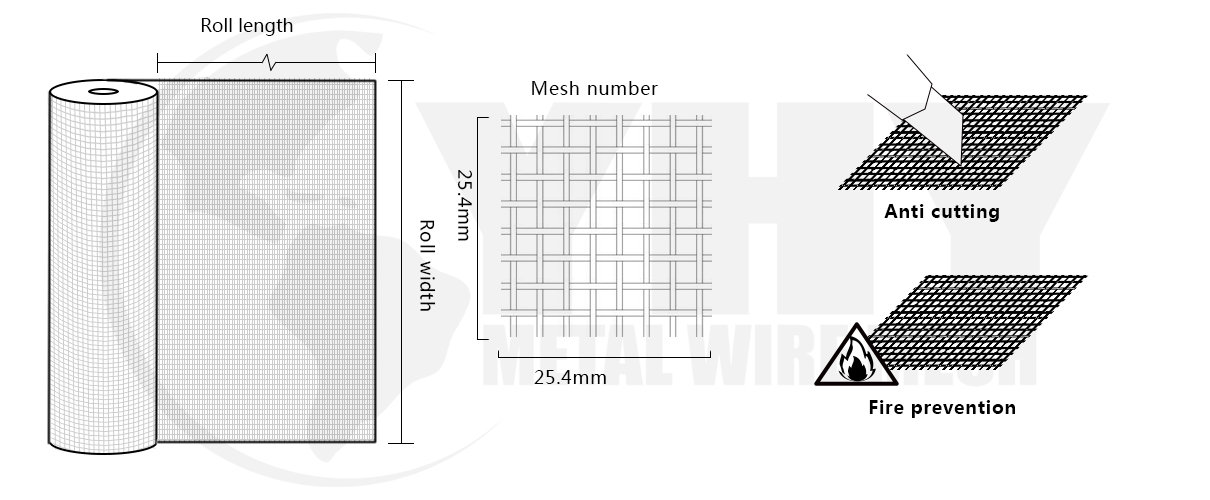

Mesh Size x Wire Dia:

10mesh x 0.8mm, 10mesh x 0.9mm
11mesh x 0.8mm, 11mesh x 0.9mm, 12mesh x 0.7mm
14mesh x 0.5mm, 14mesh x 0.55mm, 14mesh x 0.6mm


Knowledge

Security Stainless Steel Mesh

Avaliable Screen Size

Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm
Length: 2000mm, 2400mm, 3000mm

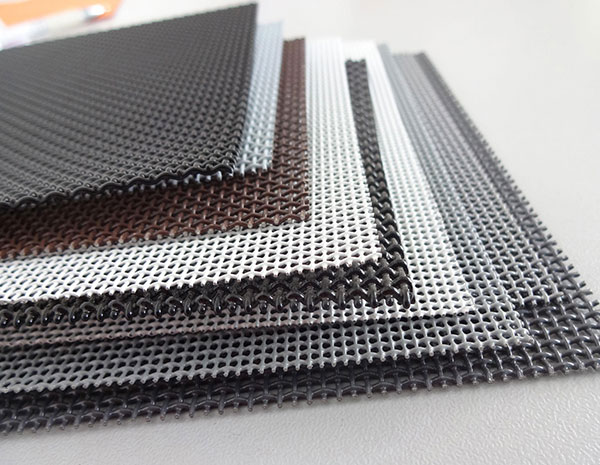

Coating Color

Black/Gray/White epoxy coated etc

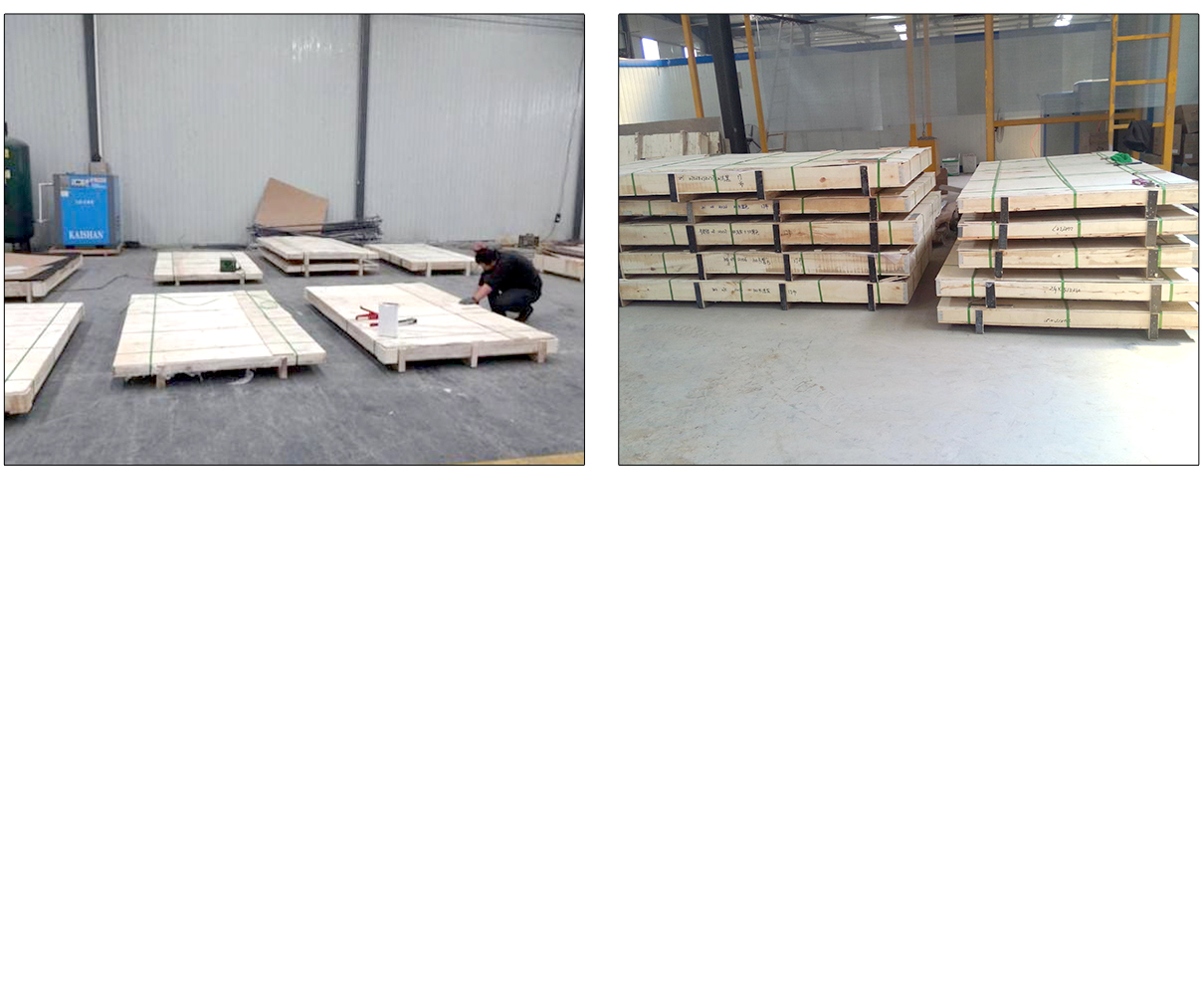

Packaging

Security Stainless Steel Mesh  Security Stainless Steel Mesh
