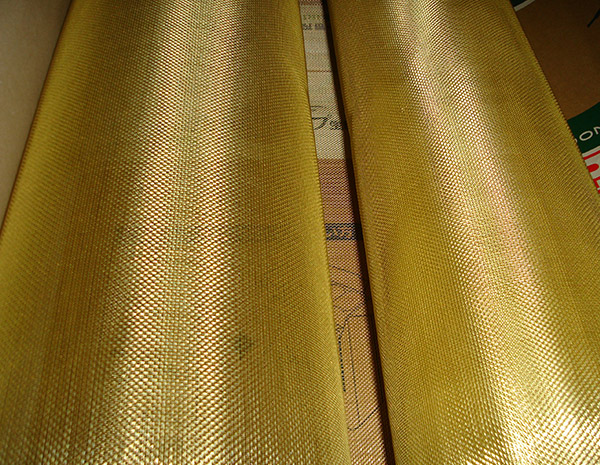

16 mesh Copper Brass Plain Woven Wire Mesh for Filtering

Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference. MOQ: 100m2 Price: $60-$90 Sample: free Application: filter mesh

Share:
Detail description

Usage

Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference.

The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.


Feature:

non-magnetic, wear resistance.

acid and alkali resistance, good ductility.

good conductivity, good heat transfer performance.



Optional range

Mesh count:1-200 mesh

Wire diameter:0.05mm-2.03mm

Common roll size:1*30m

Other size:1.2*30m,1.5*30m,2m*30m etc


MeshWire Dia. (MM)Opening(mm)
SWGmminch
6mesh220.7110.0283.522
8mesh230.6100.0242.565
10mesh250.5080.0202.032
12mesh260.4570.0181.660
14mesh270.4170.0161.397
16mesh290.3450.0141.243
18mesh300.3150.0121.096
20mesh300.3150.01240.955
22mesh300.3150.01240.840
24mesh300.3150.01240.743
26mesh310.2950.01160.682
28mesh310.2950.01160.612
30mesh320.2470.0110.573
32mesh330.2540.0100.540
34mesh340.2340.00920.513
36mesh340.2340.00920.472
38mesh350.2130.00840.455
40mesh360.1930.00760.442
42mesh360.1930.00760.412
44mesh370.1730.00680.404
46mesh370.1730.00680.379
48mesh370.1730.00680.356
50mesh370.1730.00680.335
60X50mesh360.1930.0076-
60X50mesh370.1730.0068-
60mesh370.1730.00680.250
70mesh390.1320.00520.231
80mesh400.1220.00480.196
90mesh410.1120.00440.170
100mesh420.0120.0040.152
120X108mesh430.0910.0036-
120mesh440.0810.00320.131
140mesh460.0610.00240.120
150mesh460.0610.00240.108
160mesh460.0610.00240.098
180mesh470.0510.0020.090
200mesh470.0510.0020.076

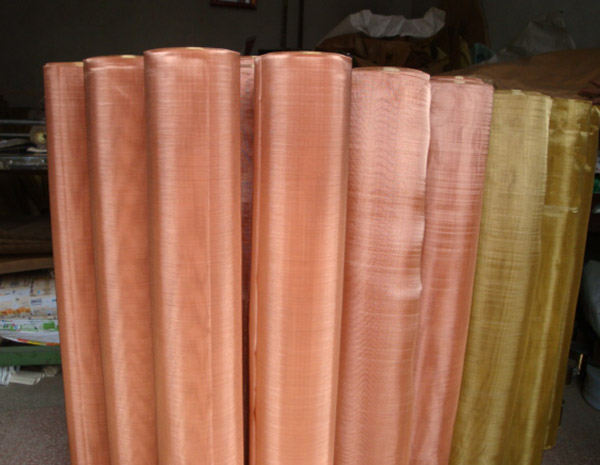

Material

brass wire--purity--Cu: 65% , Zn:35%

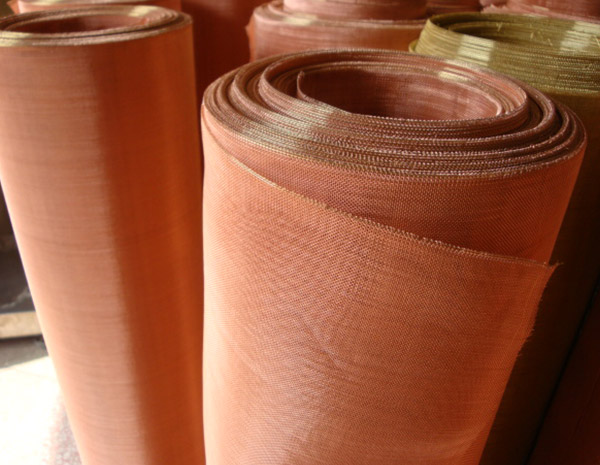

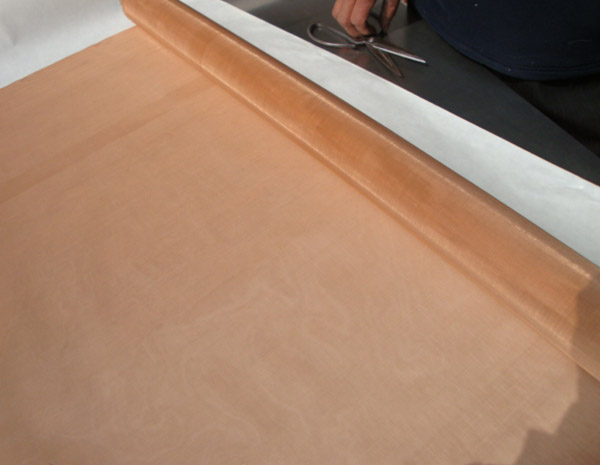

red copper wire--purity--Cu:99.8%

phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15%

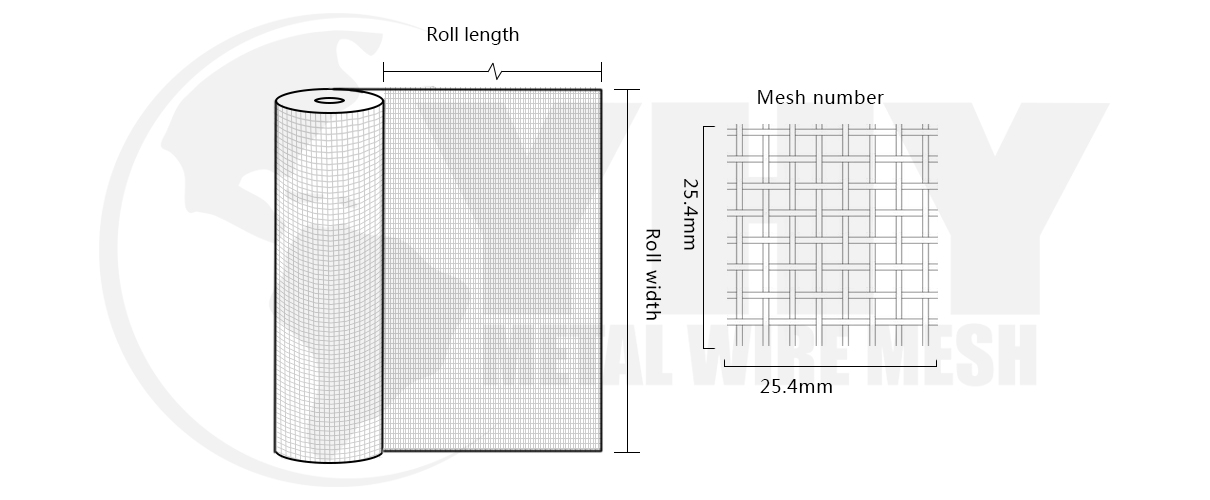

Knowledge

Copper Brass Mesh

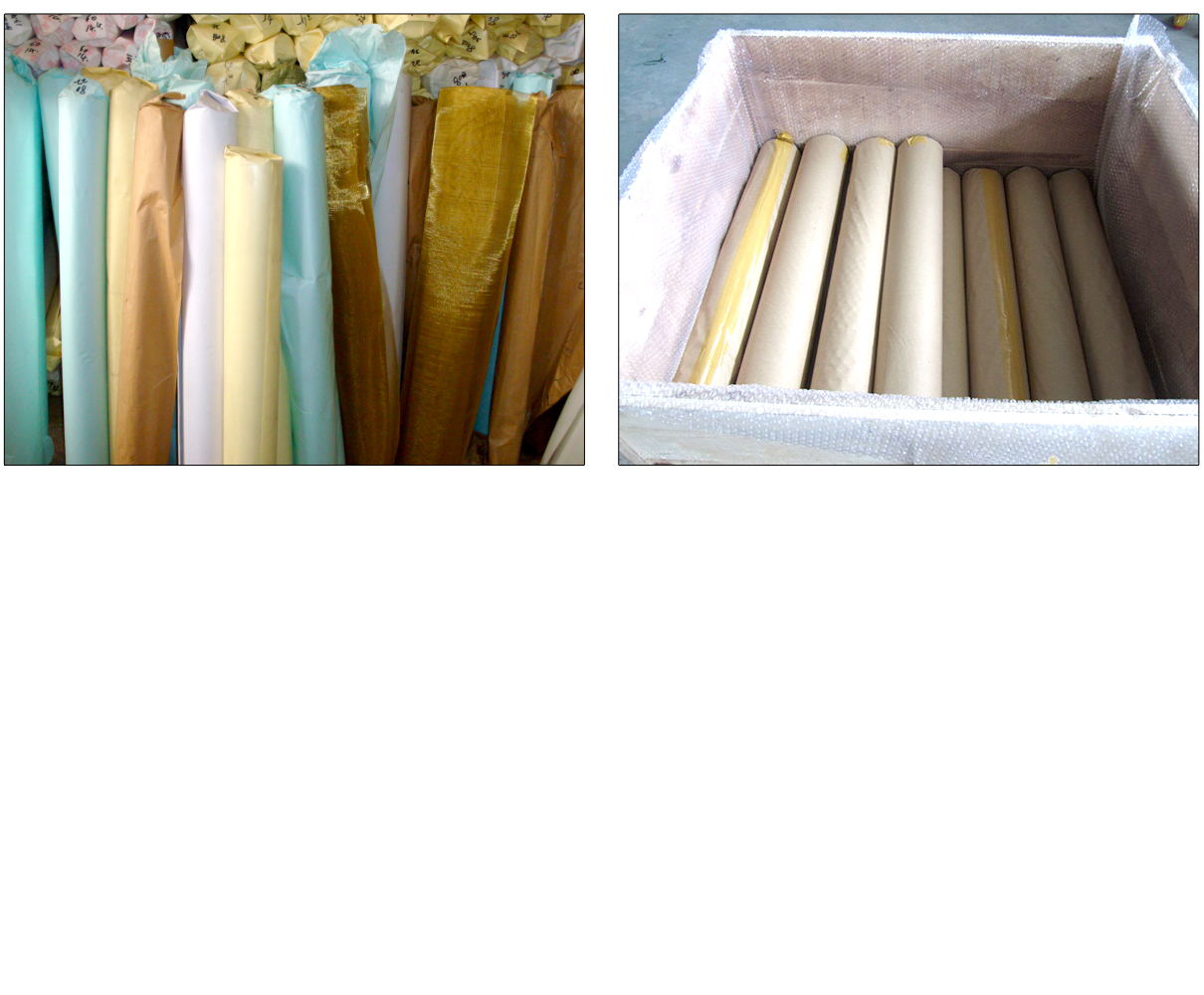

Packaging

Copper Brass Mesh
