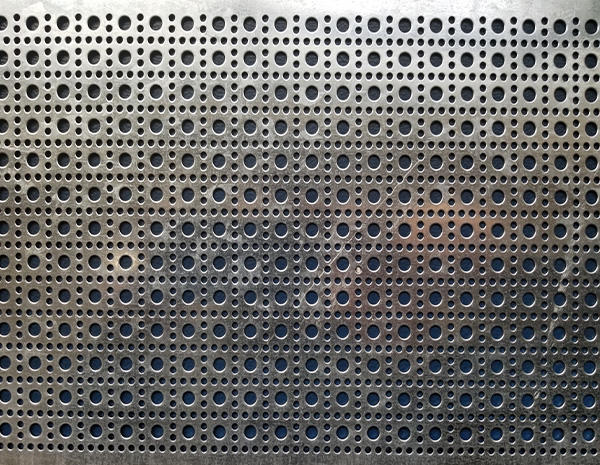

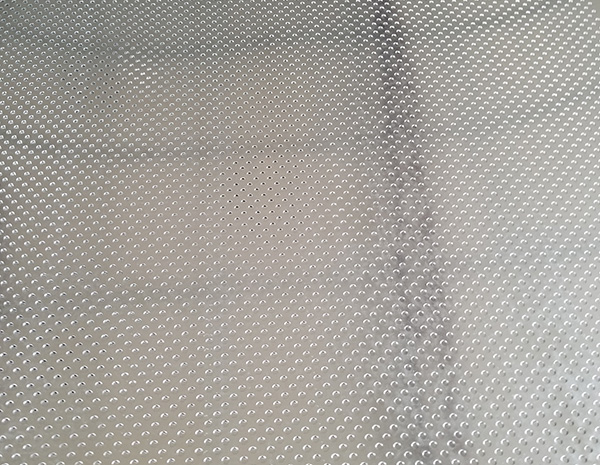

2400*1220 Round Hole Aluminum Perforated Sheet

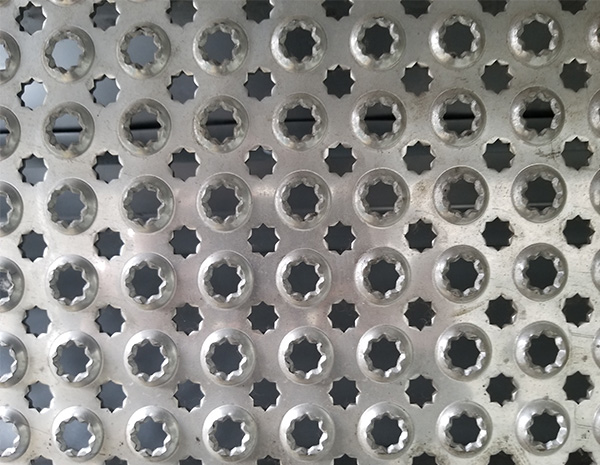

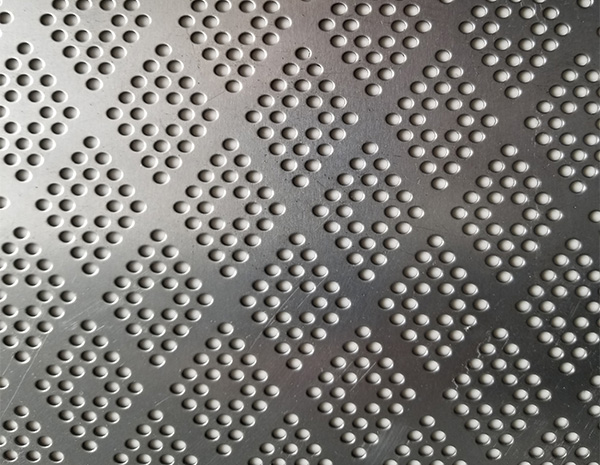

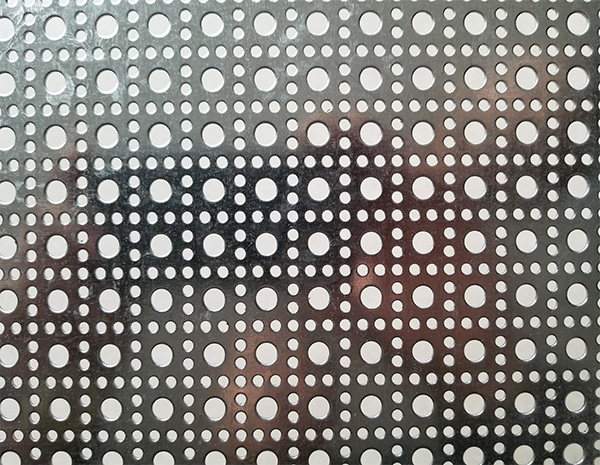

The round hole aluminum perforated sheet is made by aluminum metal sheet.Besides,you can choose the stainless steel sheet,brass sheet and so on.We can also punch different holes on the same metal plate according to your requirements.

Share:
Detail Description

2400*1220 Round Hole Aluminum Perforated Sheet

Basic Information

Material:Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on

Thickness:0.3-12.0mm

Mesh size:2400*1220mm,1220*2440mm,1200*2400mm,1000*2000mm or customized

Surface treatment:Powder coated,Fluorocarbon spraying,Polishing

  1. Features

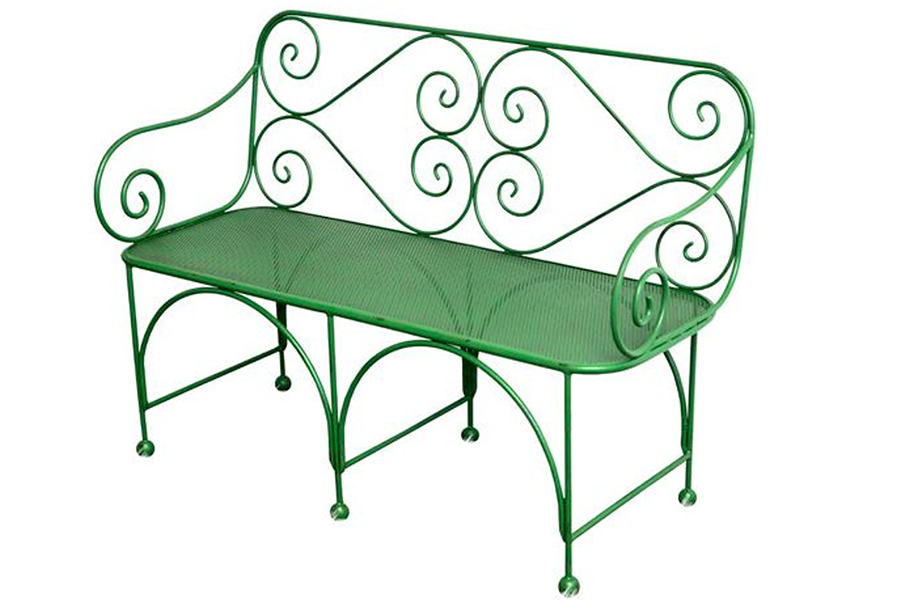

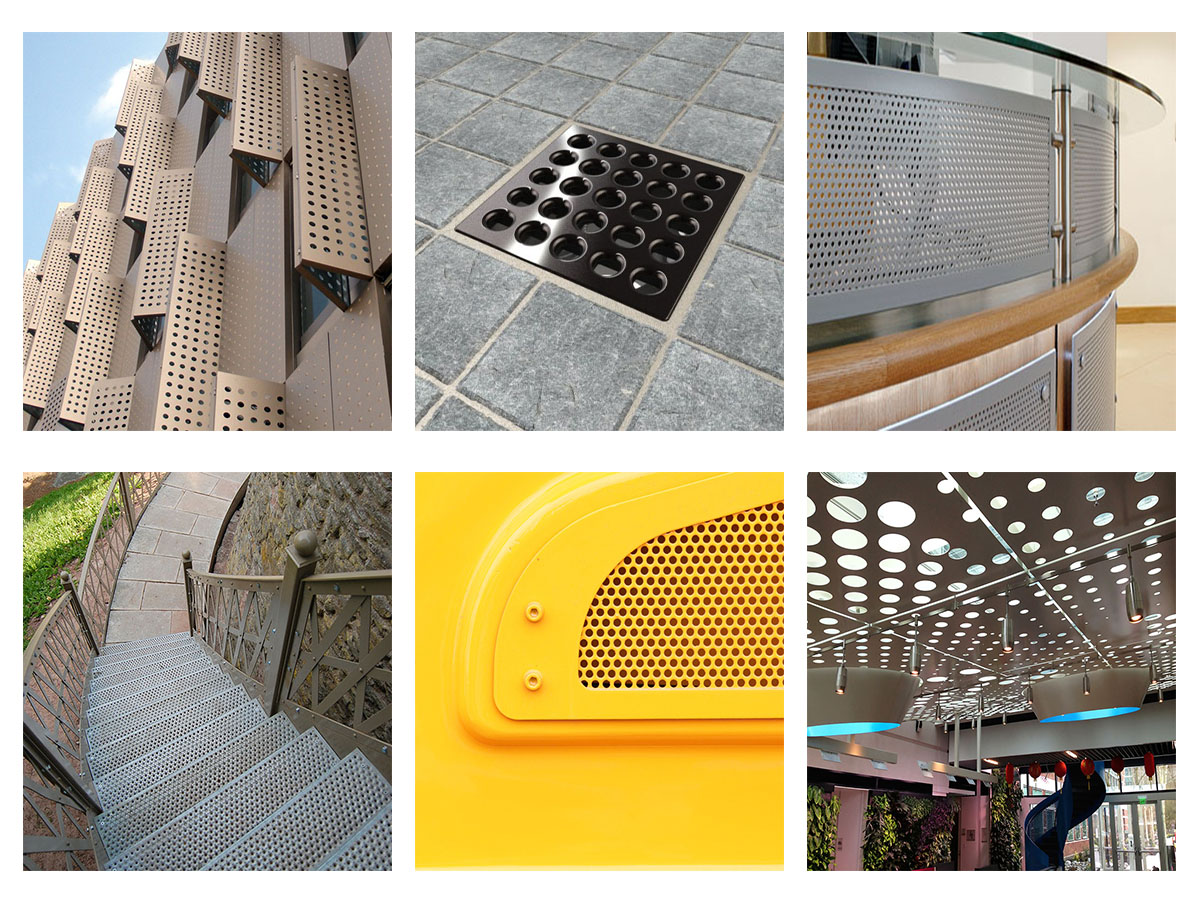

Application

2400*1220 Round Hole Aluminum Perforated Sheet2400*1220 Round Hole Aluminum Perforated Sheet

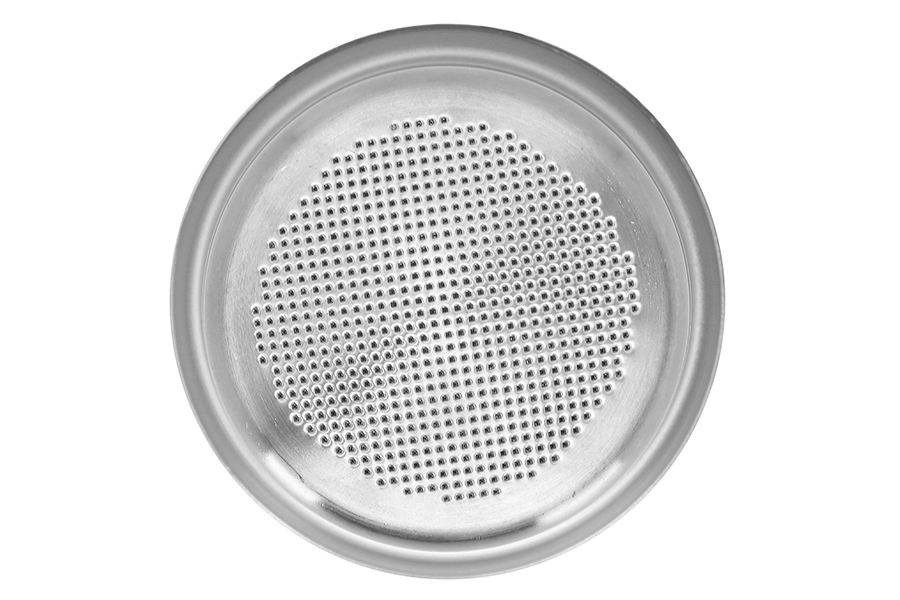

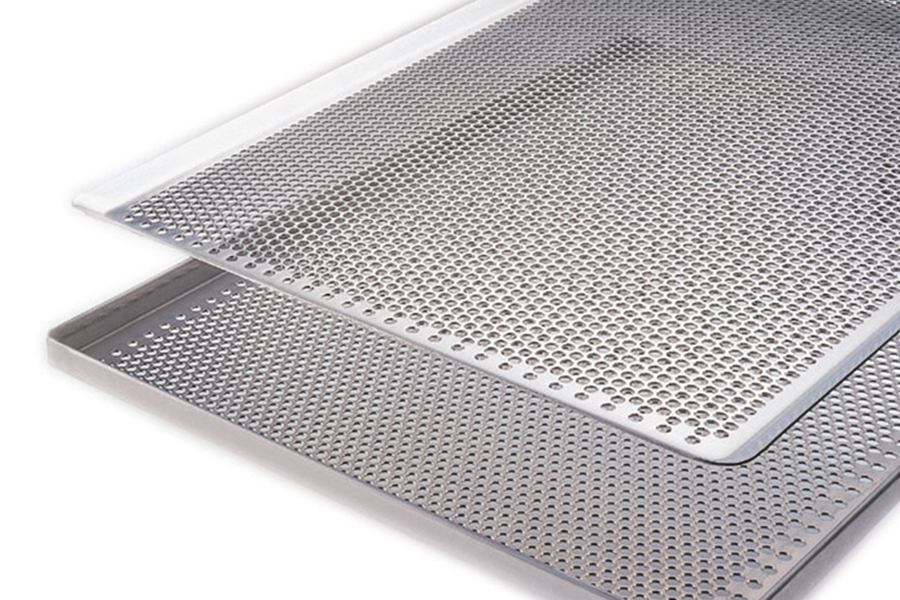

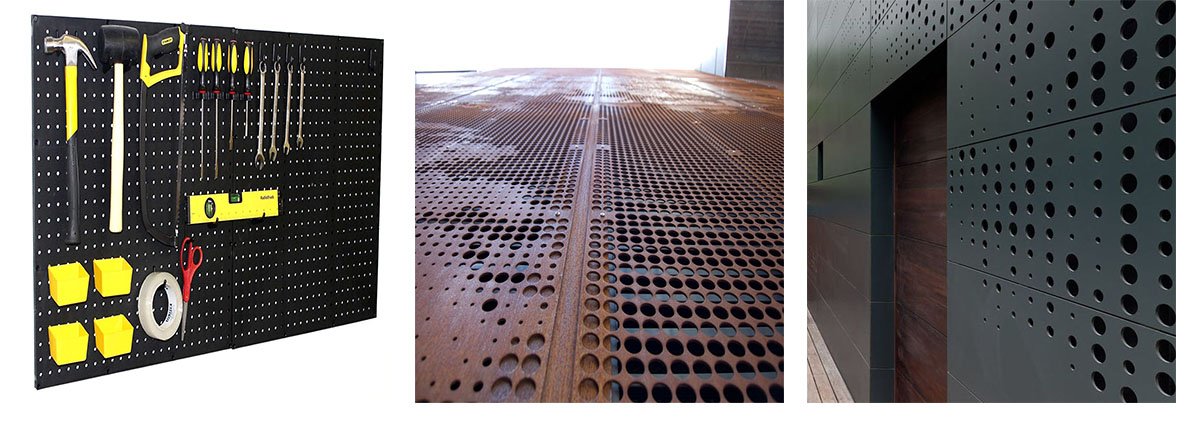

More application

Packing:In wooden case with waterproof paper


Specification Table

Hole
size (mm)
Pitch
(mm)
Open
Area %
Thickness(mm)Sheet
Size (mm)
Weight(kg/m2)
1.60 3.20 23 1.2 2400*12207.2
2.41 3.66 40 1.0 2400*12204.7
3.255.59 30 1.6 2400*12208.7
4.76 6.35 51 1.6 2400*12206.1
6.35 8.50 51 3.0 2400*122011.5
8.00 11.11 47 1.6 2400*12206.6
9.50 14.30 40 1.6 2400*12207.5
9.50 14.30 40 3.0 2400*122014.0
12.70 17.27 49 1.6 2400*12206.4
12.70 17.27 49 3.0 2400*122011.9
19.05 25.40 51 3.0 2400*122011.5


Knowledge


End Pattern

Standard layout ( finish end pattern):the pattern at the beginning and end of the sheet is complete,providing the finish ends.

Optional layouts ( unfinished end pattern): when it is difficult to use the standard layout due to  a hole size in relation to a plate thickness or a pitch required ,such option layout as a step-and-a-half and two-steps-and-a-half layouts is used.In such case,the pattern of holes at the beginning and end of the sheet is incomplete, as show below, providing unfinished ends./Because of shape of tools for small holes or for high value of open area,there is a lack of one or two rows at beginning and the end of perforation zone.

2400*1220 Round Hole Aluminum Perforated Sheet

2400*1220 Round Hole Aluminum Perforated Sheet2400*1220 Round Hole Aluminum Perforated Sheet

Margin

Edge on 4 sides

Edges  on long side and without edges on short sides

Without edge on 4 sides

2400*1220 Round Hole Aluminum Perforated Sheet2400*1220 Round Hole Aluminum Perforated Sheet

2400*1220 Round Hole Aluminum Perforated Sheet



If you want to leave margin,please let we know the distance between the end of the sheet and end of  the nearest hole (A) or center of the nearest hole(B).

Flatness Check

All products have an excellent flatness, because they are subjected to corrective roll leveling after perforating process. But,due to the reaction of the forces accumulated in the perforated metal sheets processing, the sheets may be slightly strained.It should be consult YHY sales department especially in the following cases:




Packaging

2400*1220 Round Hole Aluminum Perforated Sheet

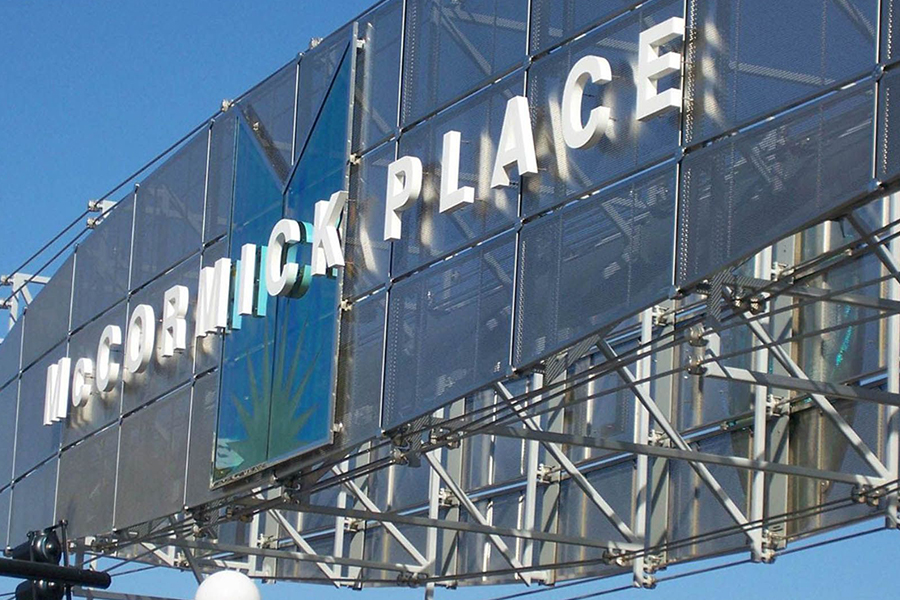

Application
