Electro Galvanized Wire

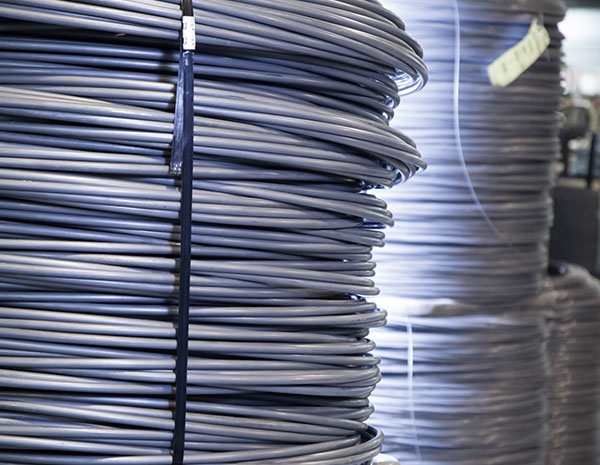

Electra Galvanized Iron Wire is also known as electric galvanized wire or galvanized steel wire. YHY produces electric galvanized wire at diameter ranging from 0.14mm to 5.0mm, which can be supplied in the form of coil wire , spool wire , U type wire or straightened and cut wire.

Share:
Detail description

Electra Galvanized Iron Wire is also known as electric galvanized wire or galvanized steel wire. YHY produces electric galvanized wire at diameter ranging from 0.14mm to 5.0mm, which can be supplied in the form of coil wire , spool wire , U type wire or straightened and cut wire.


Electra Galvanized iron wire production process:

Electric Galvanized Iron Wire we produce usually goes through standard processes under careful control from steel rod coil, wire drawing, annealing, rust removing, acid washing, boiling, drying, zinc feeding to wire coiling.


Applications: Electro galvanized iron wire It is mainly used in making nail, construction, communication equipment, medical treatment instrument, express way fencing, binding of flowers, brush , wire mesh weaving, wire redrawing, sieving mesh, craftwork, etc.


Packing: In coils or spools. Single coil package can be as small as 1 kg and up to maximum 1000 kg per coil.


Specification:

Serial NumberWire GaugeWire Diameter (mm)Standard Bundle Weight (Kg)
1Wire Gauge 8#4.050
2Wire Gauge 10#3.550
3Wire Gauge 12#2.850
4Wire Gauge 14#2.250
5Wire Gauge 16#1.650.25
6Wire Gauge 18#1.225
7Wire Gauge 20#0.925
8Wire Gauge 22#0.710-25
