1kg-800kgs/coil Electro Galvanized Wire

Min Order Quantity: 2 Short Ton/Short Tons Price: US $635-950 / Ton Sample: Free Application: Binding and construction

Share:
Detail description


electro galvanized wire

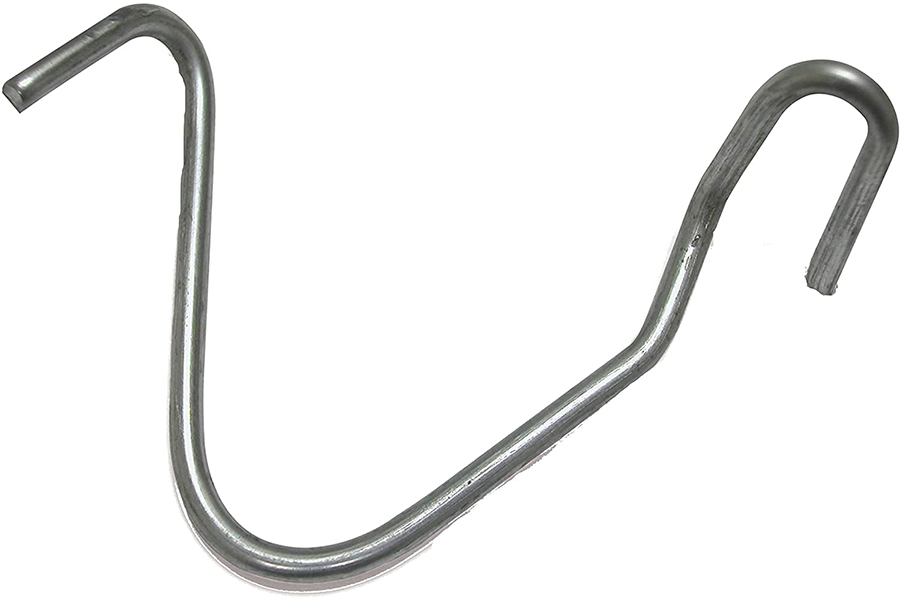

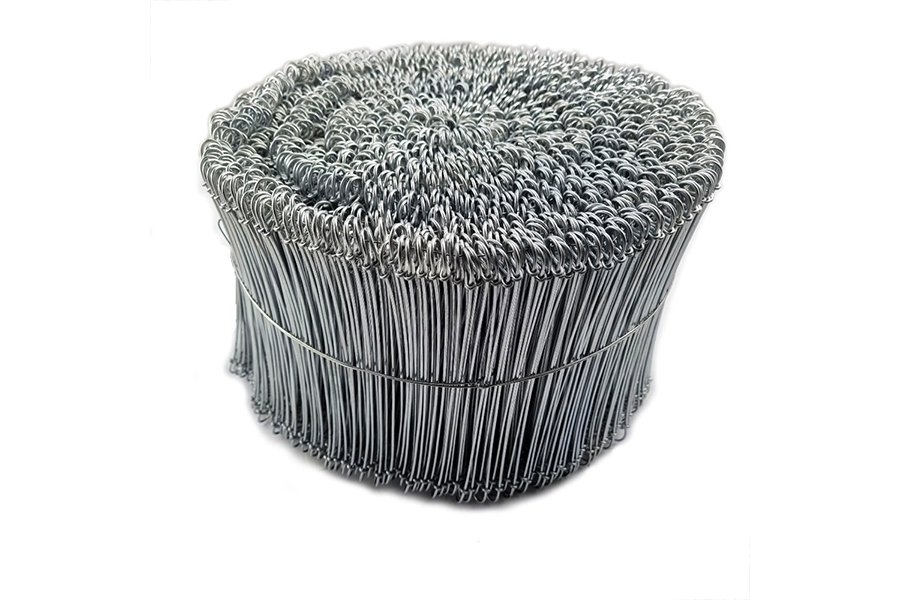

Electra Galvanized Iron Wire is also known as electric galvanized wire or galvanized steel wire. YHY produces electric galvanized wire at diameter ranging from 0.14mm to 5.0mm, which can be supplied in the form of coil wire , spool wire , U type wire or straightened and cut wire.



1.Processing of electro galvanized wire gauge bwg 22 weight 8 kg:  galvanized ironwire made by iron wire or high carbon steel wire through the process of wire drawing, acid washing and rust removing, annealing,galvanized and coiling .

2.Features of electro galvanized wire gauge bwg 22 weight 8 kg:excellent flexibility and softness, has high zinc coated to protect wire from rust .

3.Application:galvanzied iron wire are always used in construction, handicrafts, woven wire mesh, express way fencing mesh, packing of products and other daily uses.

4.Part specifications:

Size

0.9mm

1.25mm

1.6mm

2.0mm

2.5mm

3.15mm


Diameter range (mm)

+/-0.025

+/-0.035

+/-0.045

+/-0.05

+/-0.065

+/-0.08


Tensile strength (N/mm2)


                         340-500

Elongation (%)

7.5

                       10

Min. Zinc Coating (g/m2)

155

180

195

215

245

255


DC resistance (ohms/km)

216.92

112.45

68.64

43.93

28.11

17.71


Torsion Test (min. Turn)

33

24

37

30

24

19

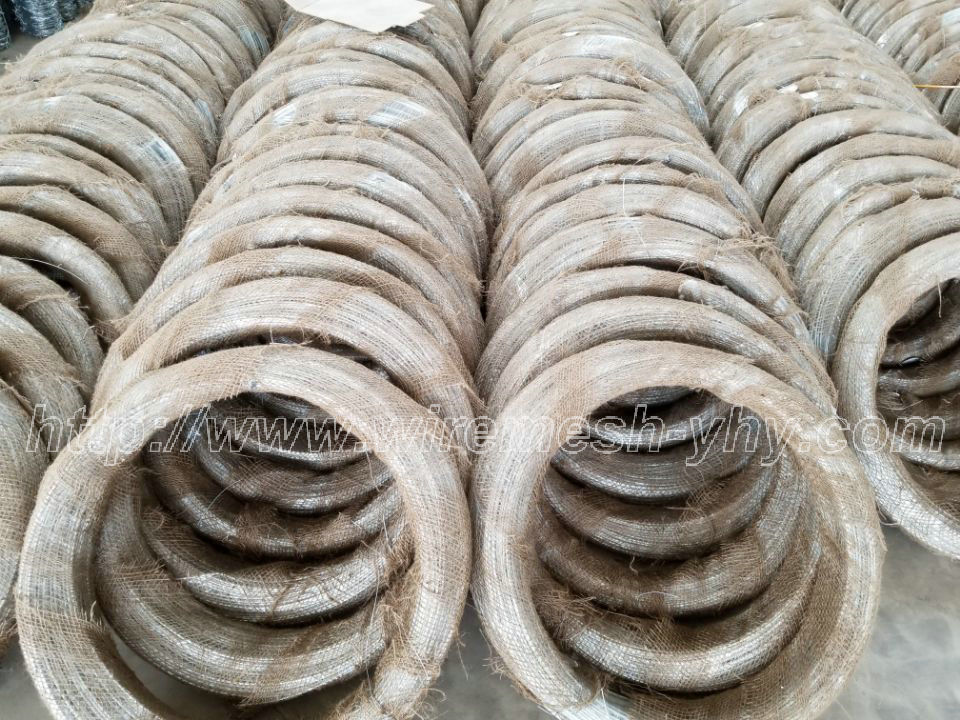

Packing:

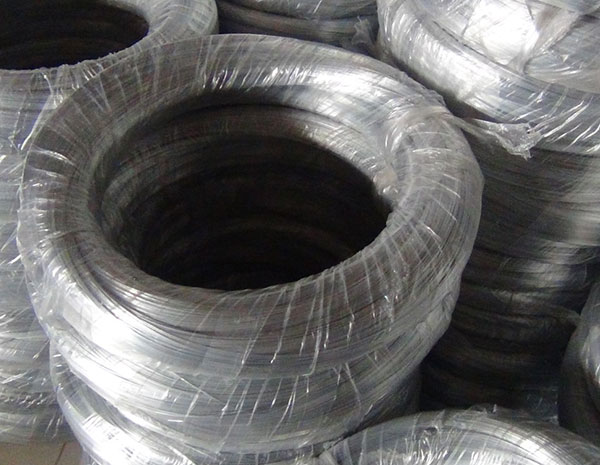

1-800kg/coil plastic inside and hessian outside/woven bag outside.

Customer special requirments for hot-dip galvanized wire is available.

           Specification form

Serial NumberWire GaugeWire Diameter (mm)Standard Bundle Weight (Kg)
1Wire Gauge 8#4.050
2Wire Gauge 10#3.550
3Wire Gauge 12#2.850
4Wire Gauge 14#2.250
5Wire Gauge 16#1.650.25
6Wire Gauge 18#1.225
7Wire Gauge 20#0.925
8Wire Gauge 22#0.710-25

production processing photo and video

Knowledge

Electro Galvanized Wire

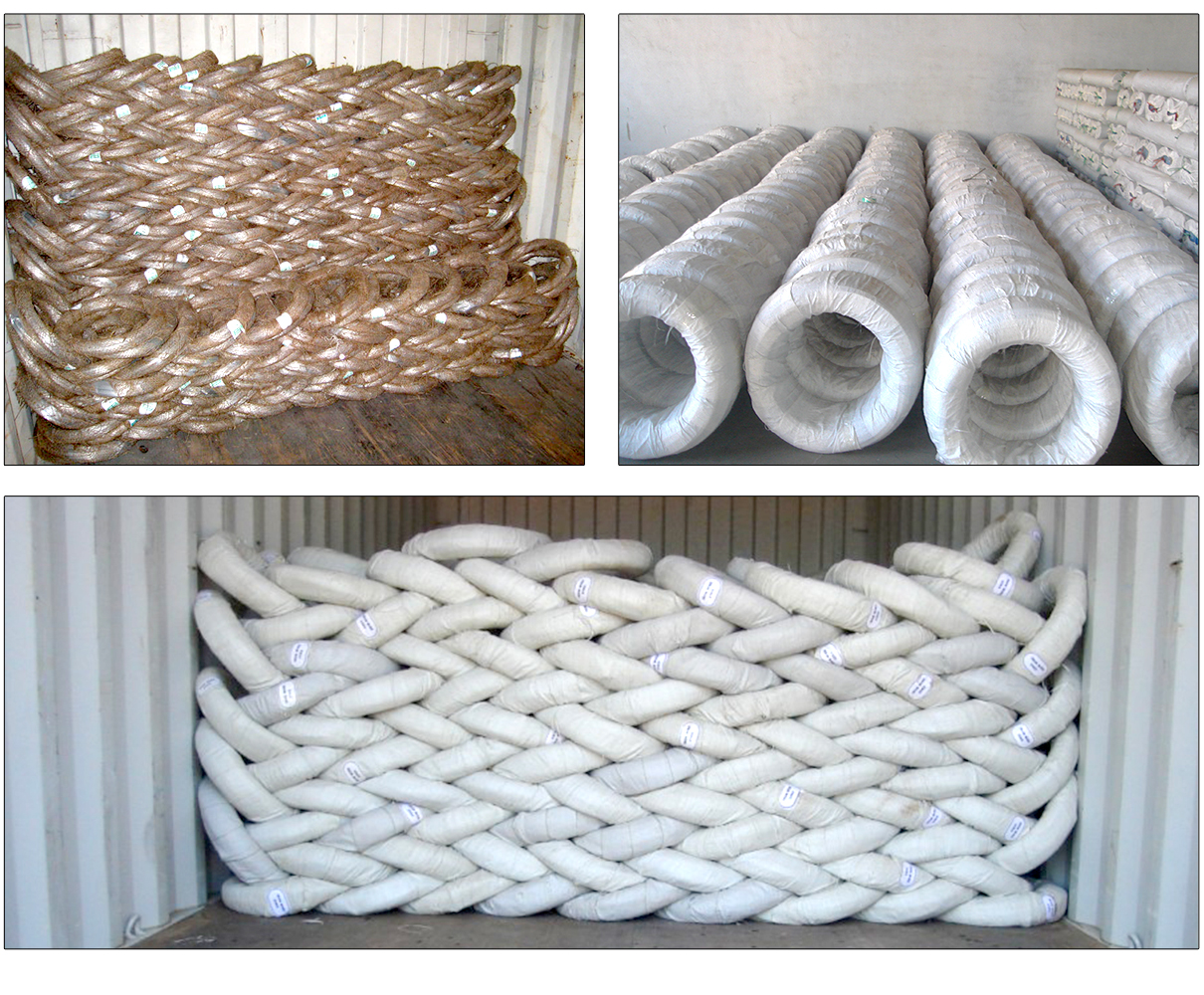

Packaging

Electro Galvanized Wire
