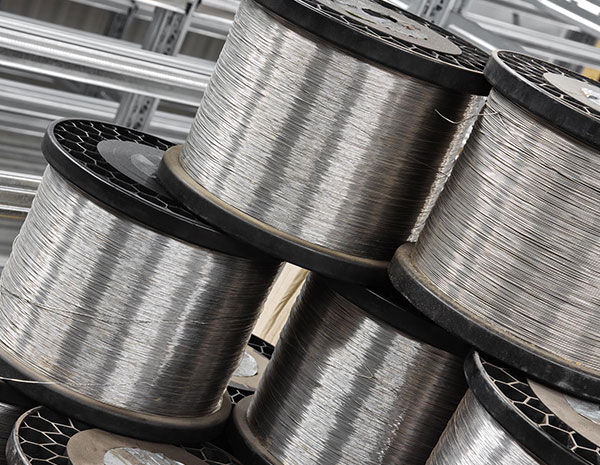

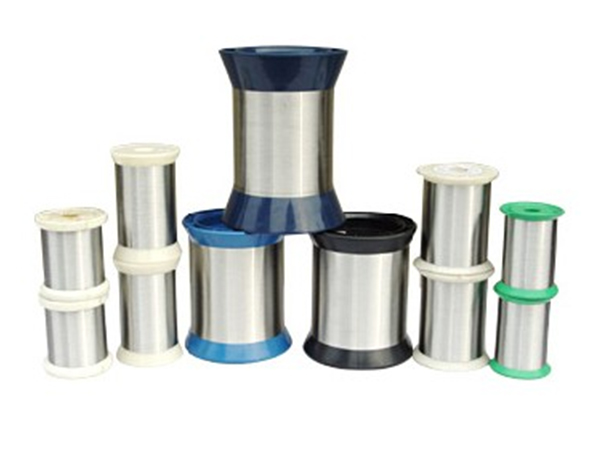

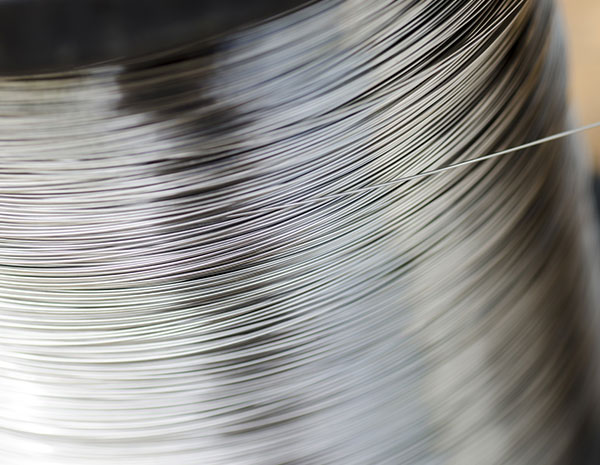

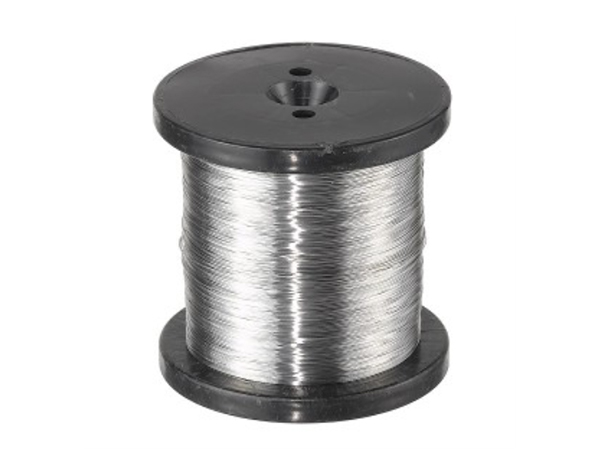

Stainless Steel Wire

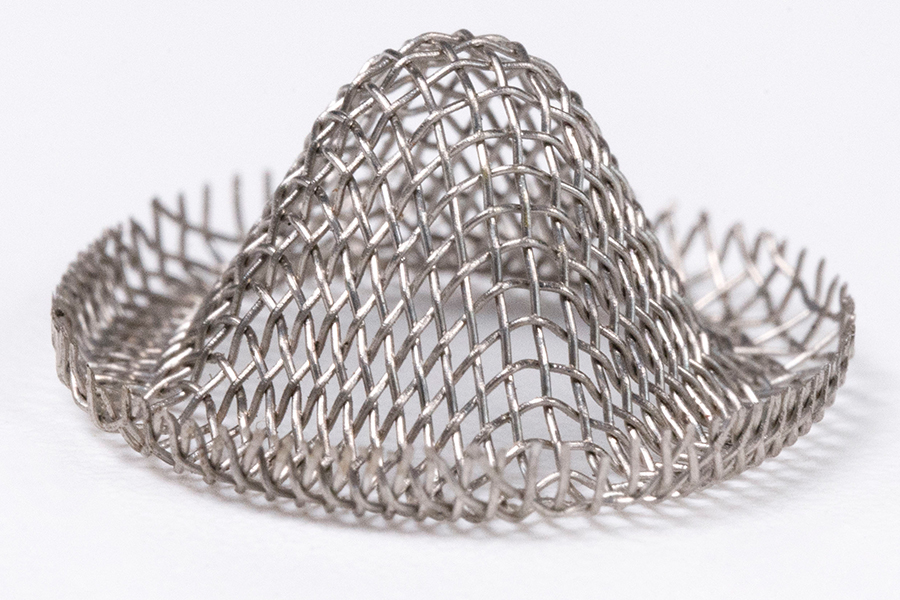

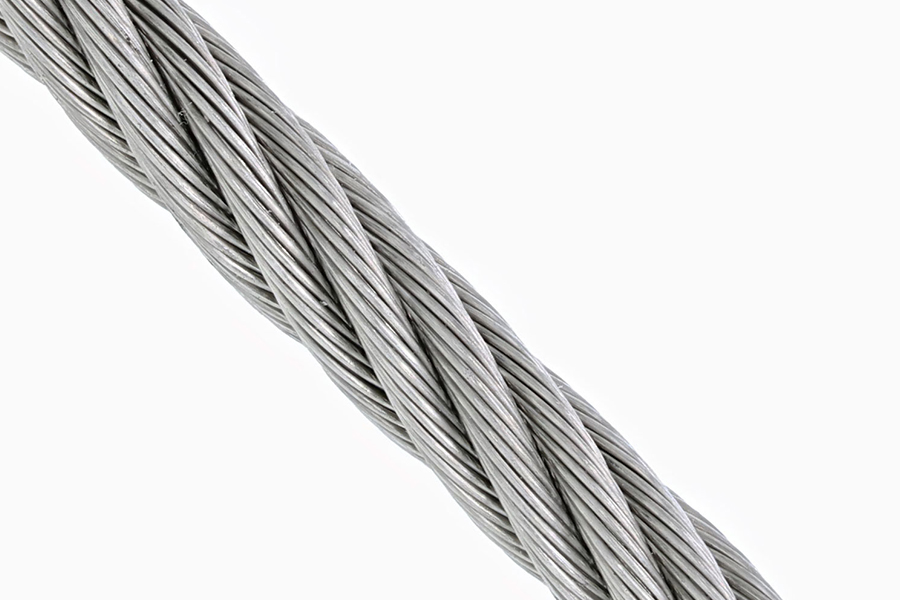

wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.

Share:
Detail description

Material : 304,304L,316,316L

Diameter: 5mm to 0.025mm

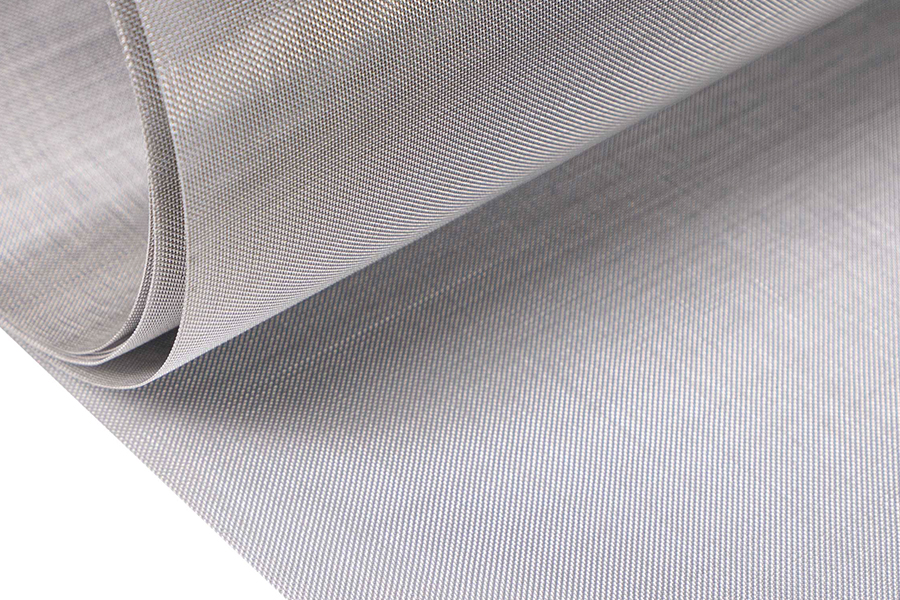

Use:  wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.


Chemical composition of stainless steel wire:

AISI
 Grade
Chemical Composition (%)

CSiMnPSNiCrMo
 304≤0.08≤1.00≤2.00≤0.045≤0.0308.00~10.5018.00~20.00-
 304H>0.08≤1.00≤2.00≤0.045≤0.0308.00~10.5018.00~20.00-
 304L≤0.030≤1.00≤2.00≤0.045≤0.0309.00~13.5018.00~20.00-
 316≤0.045≤1.00≤2.00≤0.045≤0.03010.00~14.0010.00~18.002.00~3.00
 316L≤0.030≤1.00≤2.00≤0.045≤0.03012.00~15.0016.00~18.002.00~3.00
 430≤0.12≤0.75≤1.00≤0.040≤0.030≤0.6016.00~18.00-
 430A≤0.06≤0.50≤0.50≤0.030≤0.50≤0.2514.00~17.00-


Sizes of Stainless Steel Wire:

Wire Diameter(mm)Tolerance(mm)/TD>Max. Deviation Tolerance (mm)
0.020-0.049+0.002
-0.001
0.001
0.050-0.074±0.0020.002
0.075-0.089±0.0020.002
0.090-0.109+0.003
-0.002
0.002
0.110-0.169±0.0030.003
0.170-0.184±0.0040.004
0.185-0.199±0.0040.004
0.200-0.299±0.0050.005
0.300-0.310±0.0060.006
0.320-0.499±0.0060.006


Knowledge

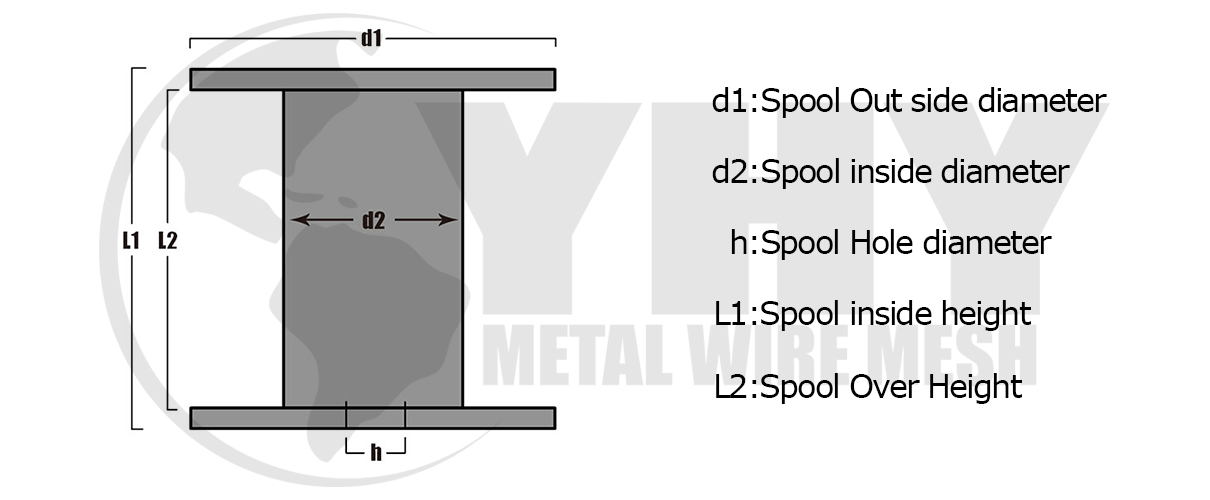

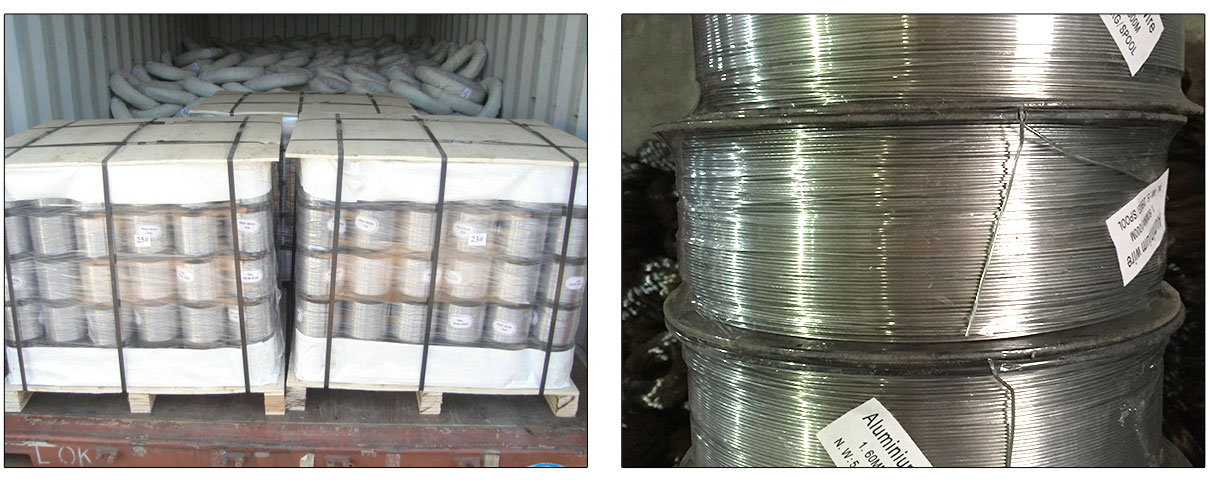

Packaging
