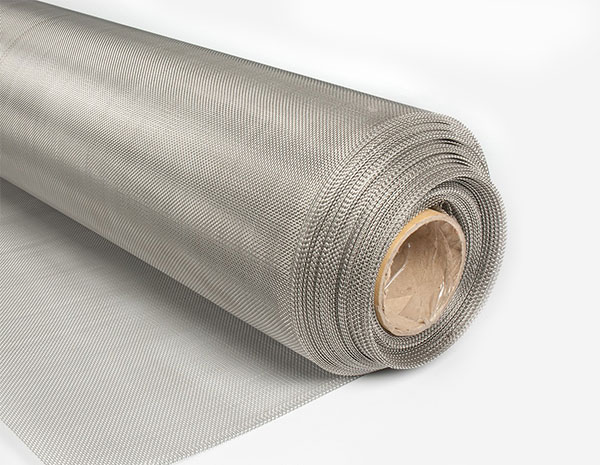

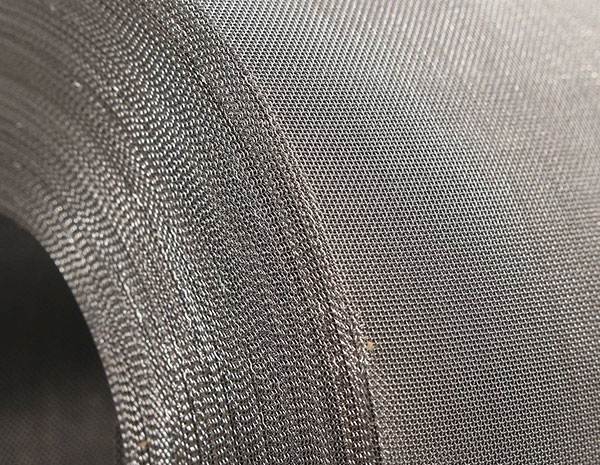

2-400 Mesh Square Stainless Steel Wire Mesh For filter

Stainless steel is selected for their wear-resisting, acid-resisting and corrosion resisting characteristics.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. MOQ: 10rolls Price: $135-$1989 Sample: free Application: filter, decorate, window screen mesh

Share:
Detail Description

Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

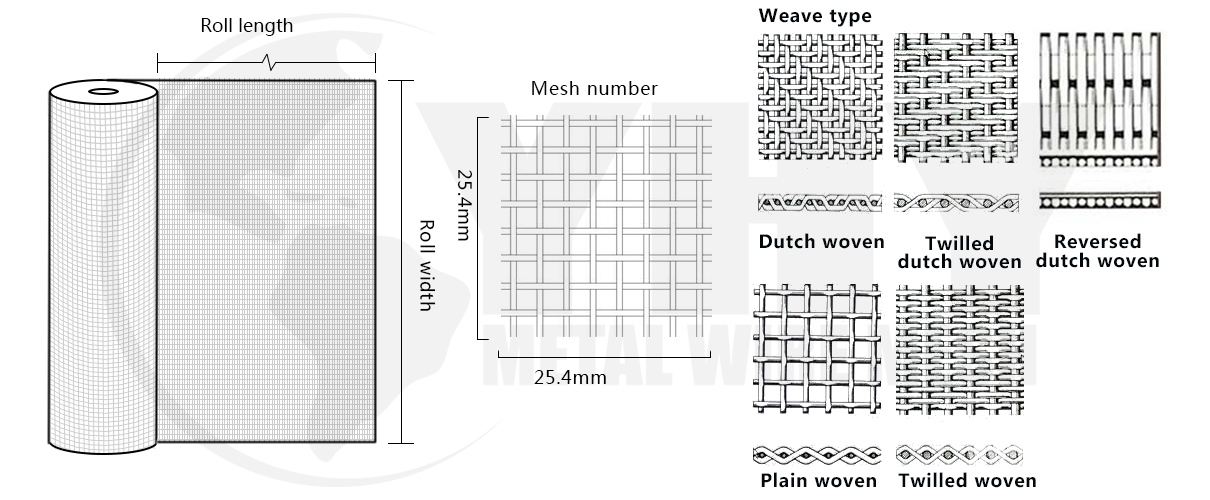

1. Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Stainless Steel Woven Wire Mesh(Plain Weave)
mesh/inchwire diameter(mm)aperture(mm)mesh/inchwire diameter(mm)aperture(mm)
2 mesh1.8010.9060mesh0.150.273
3 mesh1.606.86670mesh0.140.223
4 mesh1.205.1580mesh0.120.198
5 mesh0.914.1790mesh0.110.172
6 mesh0.803.433100mesh0.10.154
8 mesh0.602.575120mesh0.080.132
10mesh0.551.990140mesh0.070.111
12mesh0.501.616150mesh0.0650.104
14mesh0.451.362160mesh0.0650.094
16mesh0.401.188180mesh0.0530.088
18mesh0.351.060200mesh0.0530.074
20mesh0.300.970250mesh0.040.061
26mesh0.280.696300mesh0.0350.049
30mesh0.250.596325mesh0.030.048
40mesh0.210.425350mesh0.030.042
50mesh0.190.318400mesh0.250.0385


2. Twill Weave:  In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

Stainless Steel Woven Wire Mesh(Twil Weave)
meshwire diameter(mm)aperture(mm)material(AISI)
250 mesh  0.040mm0.063304 or 316
300 mesh  0.040mm0.044304 or 316
325 mesh 0.035mm0.043304 or 316
350 mesh  0.030mm0.042304 or 316
400 mesh 0.030mm0.033304 or 316


3. Plain Dutch Weave: similar to plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and fewer weft wires.

Stainless Steel Woven Wire Mesh(Dutch Weave)
MeshWire Dia.(mm)Material(AISI)
12mesh x64mesh0.58/0.40304 or 316
24 Mesh x 110 Mesh0.36/0.25304 or 316
14 Mesh x 88 Mesh0.50/0.33304 or 316
30 Meshx 150Mesh0.18/0.14304 or 316
40 Mesh  x 200Mesh0.14/0.11304 or 316
50 Mesh  x 250Mesh0.10/0.071304 or 316
80Mesh x700Mesh0.06/0.05304 or 316
165Mesh x800Mesh0.071/0.040304 or 316
165Mesh x1400Mesh0.05/0.032304 or 316
200Mesh x1800Mesh0.05/0.03304 or 316
325Mesh x2300Mesh0.030/0.025316L
400Mesh x2800Mesh0.030/0.02316L



Knowledge

2-400 Mesh Square Stainless Steel Wire Mesh For filter

1. Mesh Count = 25.4mm/D+A.

2. Aperture= 25.4mm/Mesh count - Diameter.

3. % Open Area= A/(A+D)² X 100%.

4. Micron= Aperture(mm) X 1000.

5.Mesh – The number of openings per lineal inch.

6.Aperture- The distance between two adjacent wires.

7.Diameter- The thickness of the wire before weaving.

8.% Open Area- The ratio of the area of the aperture to the area of the 9.mesh expressed in percentage terms.

10.Warp- All wires running lengthwise of the cloth as woven.

11.Weft- All wires running across the cloth as woven.

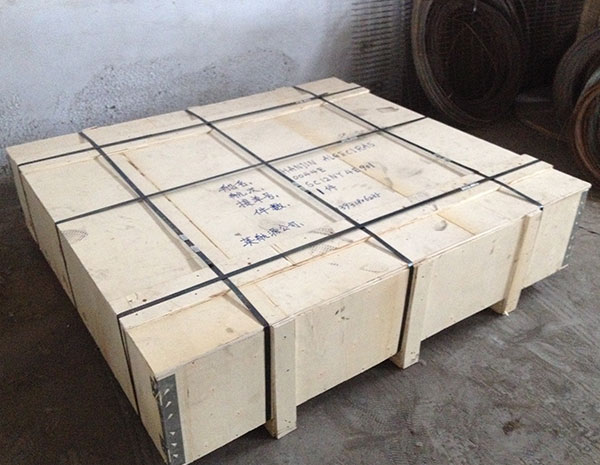

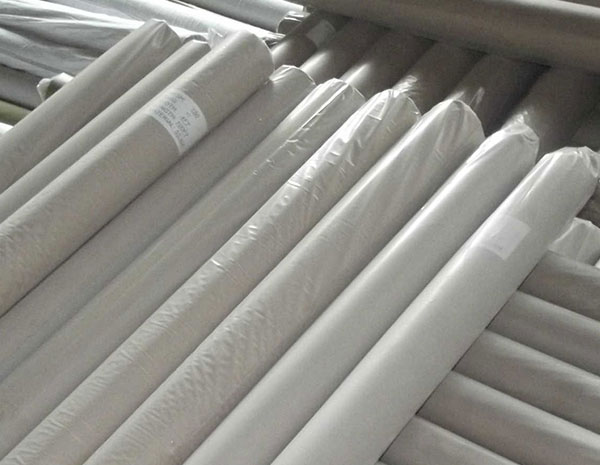

Packaging

2-400 Mesh Square Stainless Steel Wire Mesh For filter

Application

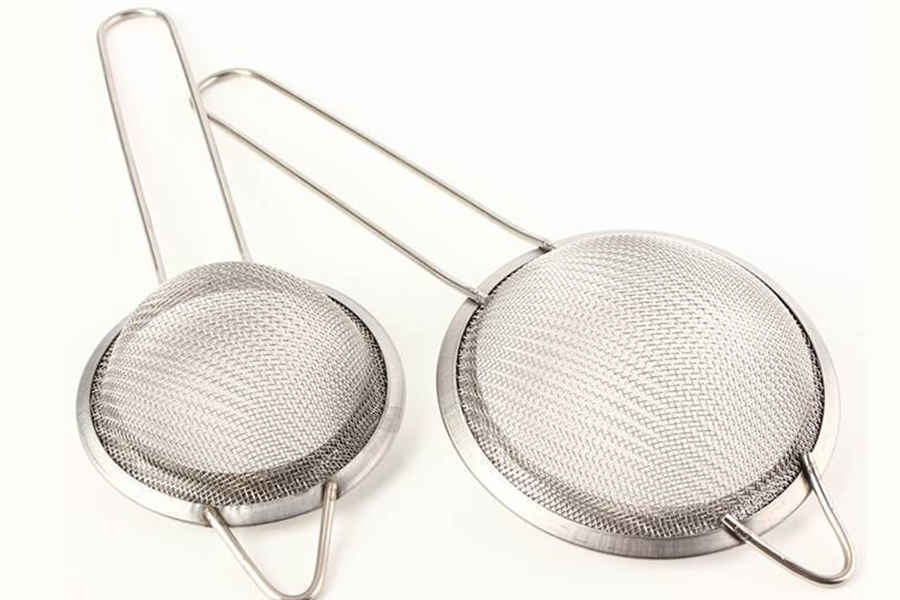

  • Stainless Steel Wire Mesh Used For Skimmers

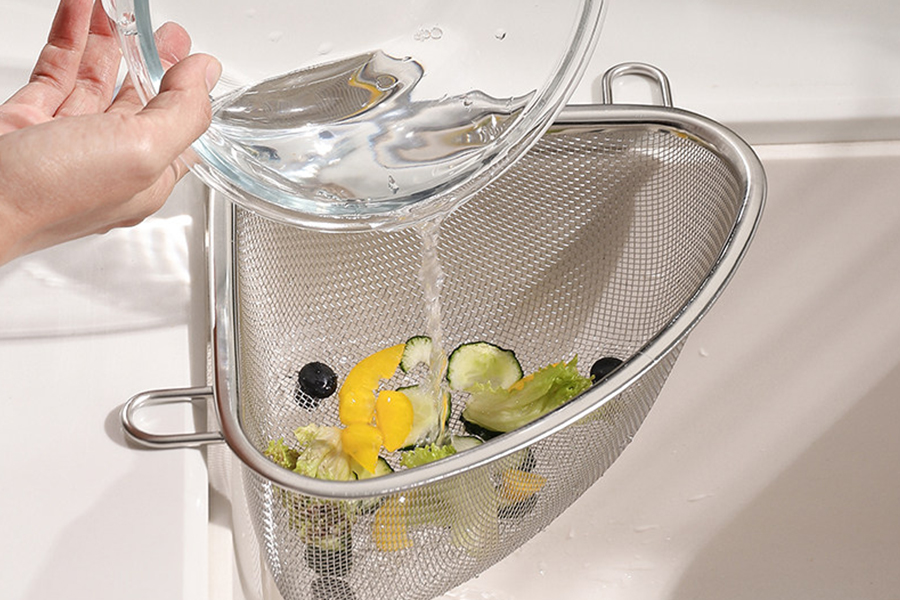

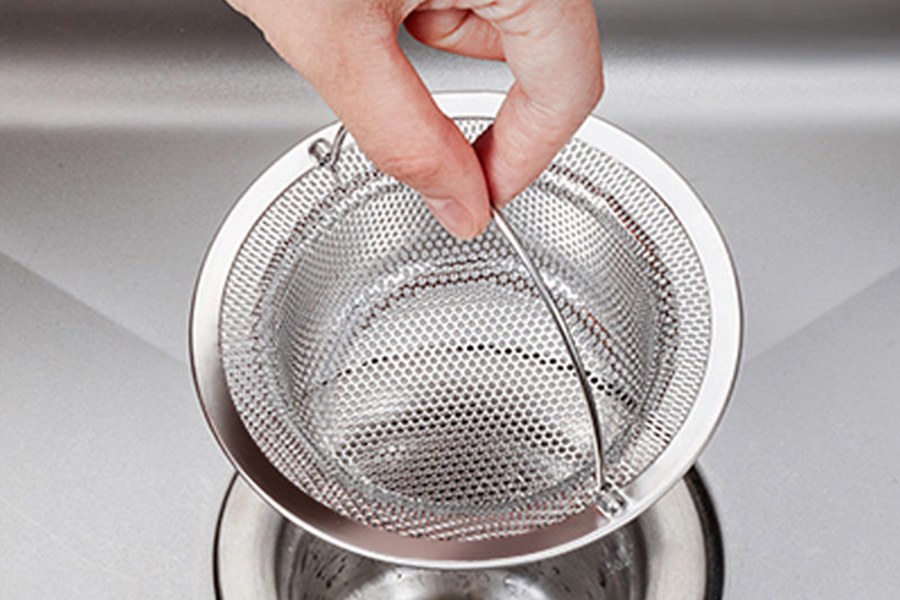

  • Stainless Steel Wire Mesh Used For Water Filter Basket

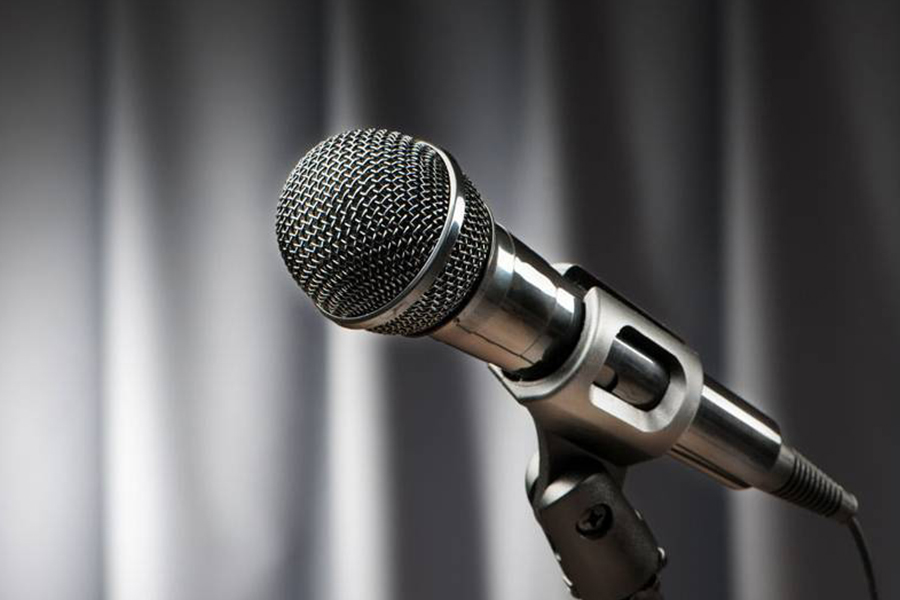

  • Stainless-Steel-Wire-Mesh-Used-For-Speaker-Grill

  • Stainless-Steel-Wire-Mesh-Used-For-Drip-Mold
