0.3mm - 15mm thickness Customized Stable Punched Aluminum Perforated Metal Mesh

Min Order Quantity: 500 Square Meter Price: USD 1.99/ square meter Sample: Free Application:The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc

Share:
Detail Description


Perforated Metal Mesh


YHY offers perforated metal in different patterns materials and thickness.

YHY products have been exported to 50 courtiers and area. Now our sales department have a completely sales system, we offer customers price within 8 hours, and make samples within 5 days.


Material :Stainless Steel ,Plain Steel ,Galvanized Steel,Aluminum, Brass (Copper) ,Phosphor or Bronze

Features: also named Punched Mesh, It can be supplied in folded or flat panels. From various metal plates, punched openings can be round, square, triangle, diamond, hexagonal, cross, etc.


Applications: The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc

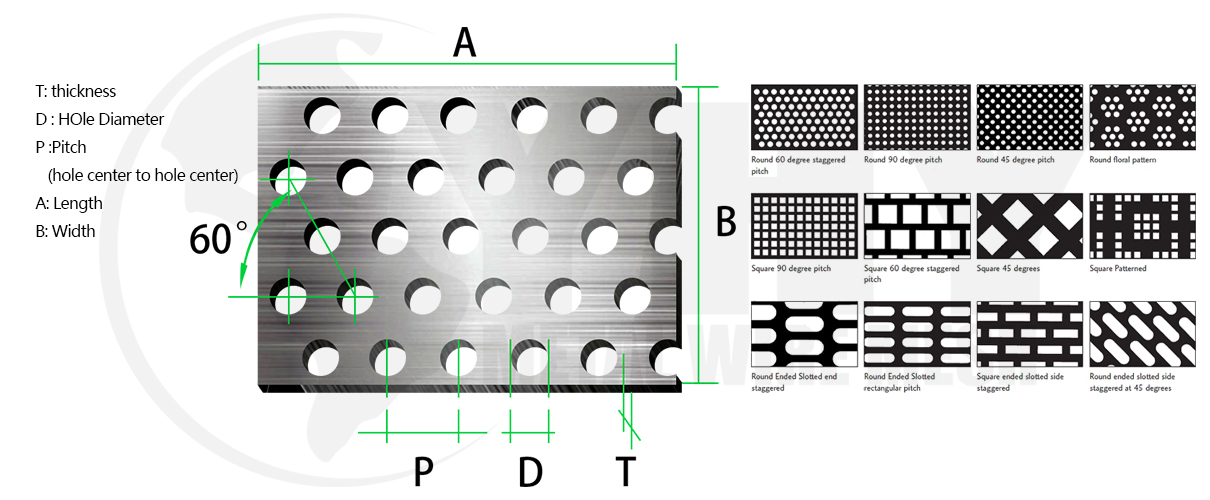

Specifications and Hole types:



Main Hole Type: Round Holes



ROUND HOLES STAGGERED PATTERN
HOLECENTERSGAUGE / PLATETHICK.OPEN AREA
.020" RD.045" Stag2618%
1/32" RD1/16" Stag2223%
3/64" RD5/64" Stag2433%
3/64" RD3/32" Stag22 thru 1823%
1/16" RD3/32"Stag22 thru 1640%
1/16" RD7/64" Stag20 thru 1630%
1/16" RD1/8" Stag26 thru 1623%
5/64" RD1/8" Stag22 thru 1435%
3/32" RD5/32" Stag24 thru 1433%
3/32" RD3/16" Stag2423%
.117 RD5/32" Stag1851%
1/8" RD3/16" Stag24 thru 1140%
1/8" RD7/32" Stag14 thru 1230%
1/8" RD1/4" Stag14, 1323%
9/64" RD3/16" Stag1851%
5/32" RD3/16" Stag22 thru 1663%
5/32" RD1/4" Stag20 thru 1035%
3/16" RD7/32" Stag22 thru 1667%
3/16" RD1/4" Stag24 thru 1251%
3/16" RD5/16" Stag10, 3/16"33%
3/16" RD3/8" Stag14 thru 1023%
1/4" RD5/16" Stag20 thru 1658%
1/4" RD3/8" Stag26 thru 1/4"40%
17/64" RD5/16" Stag2066%
5/16"RD7/16" Stag20 thru 1/4"46%
3/8" RD9/16" Stag20 thru 1/4"40%
1/2" RD11/16" Stag20 thru 1/4"48%
1/2" RD3/4" Stag1640%
5/8" RD7/8" Stag10 thru 1/4"46%
3/4" RD1" Stag16 thru 1/4"51%
1" RD1-3/8" Stag10 thru 1/4"48%
1-1/4" RD1-5/8" Stag1/4"54%
1-1/2" RD2" Stag1/4"51%
2" RD2-1/2" Stag1/4"58%
2-1/2" RD3" Stag3/16"63%
3" RD3-1/2" Stag3/16"67%
4" RD4-1/2" Stag1072%

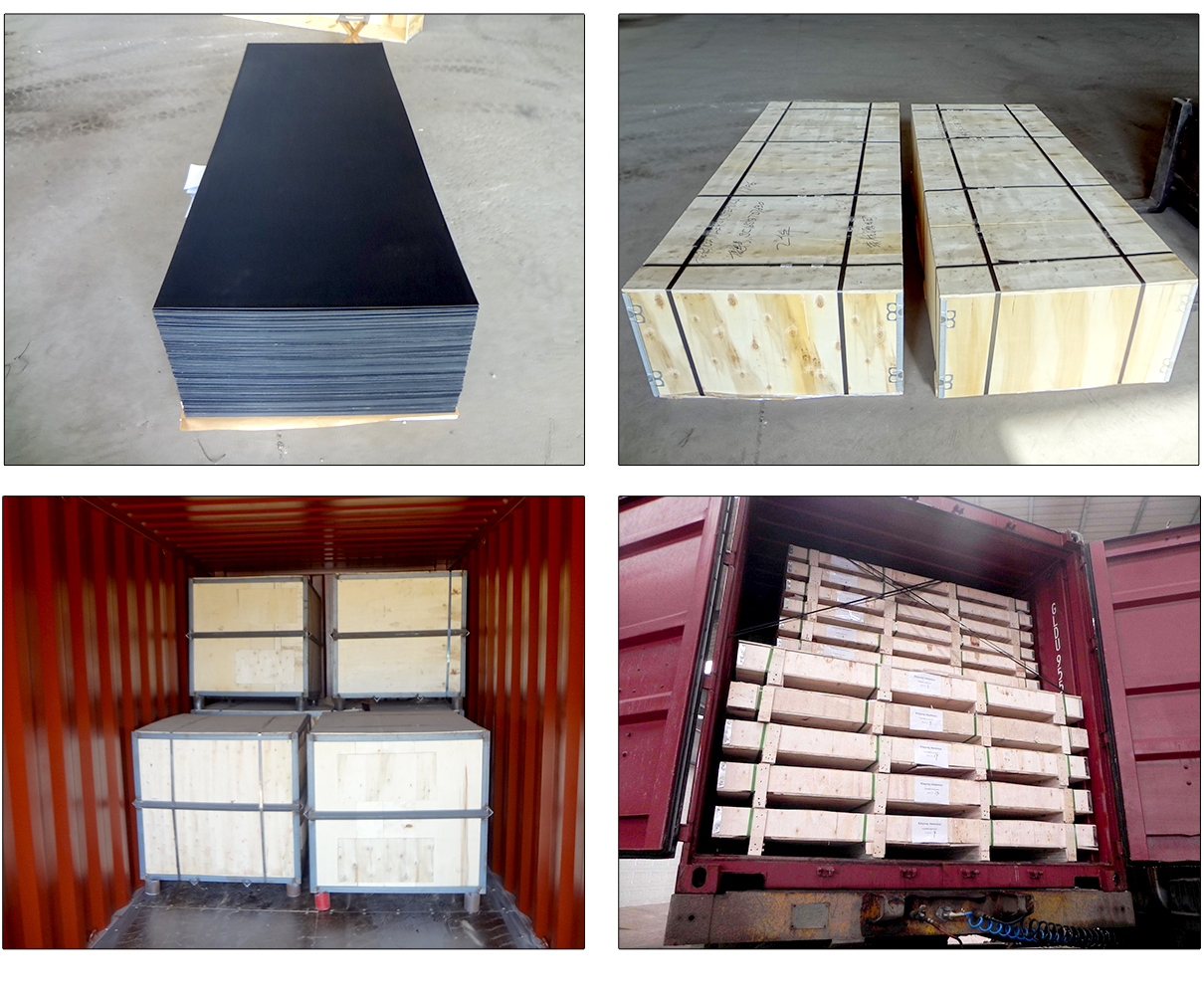

Packing: wrapped with plastic paper, then in cartons or Pallet.

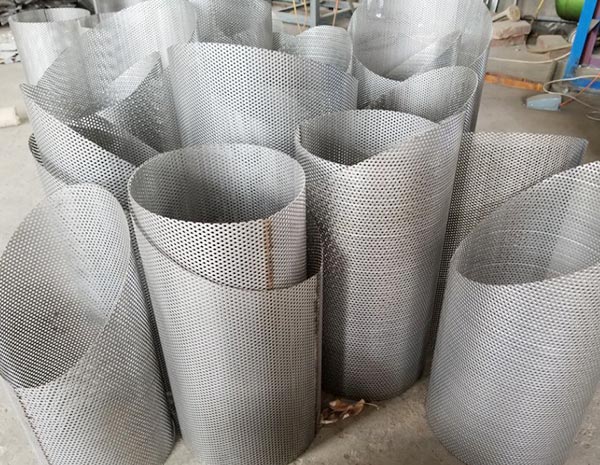

Production Processing Photo and Video...


Knowledge

0.3mm - 15mm thickness Customized Stable Punched  Aluminum Perforated Metal  Mesh

Packaging

0.3mm - 15mm thickness Customized Stable Punched  Aluminum Perforated Metal  Mesh

Application
  • perforated Metal room divider,

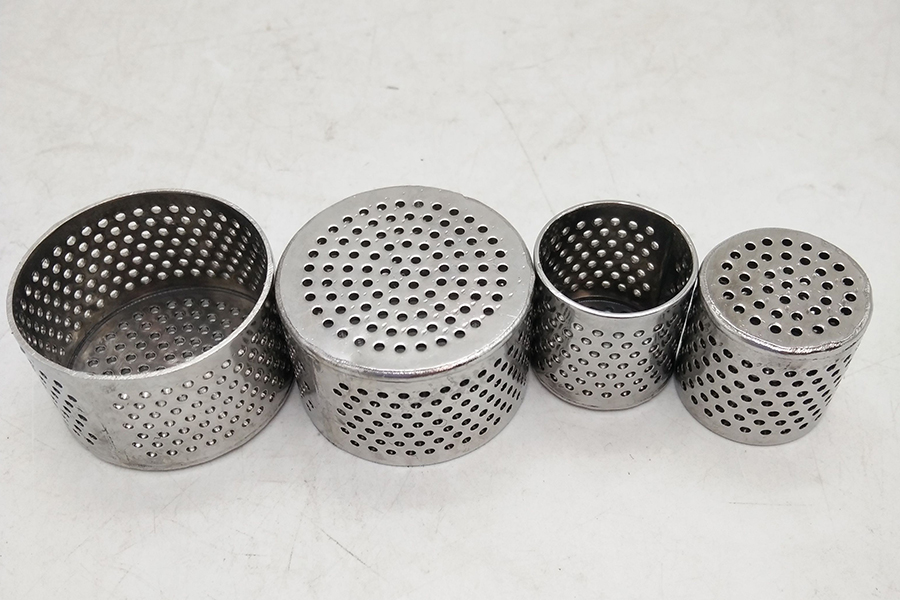

  • Perforated metal salt and pepper shaker

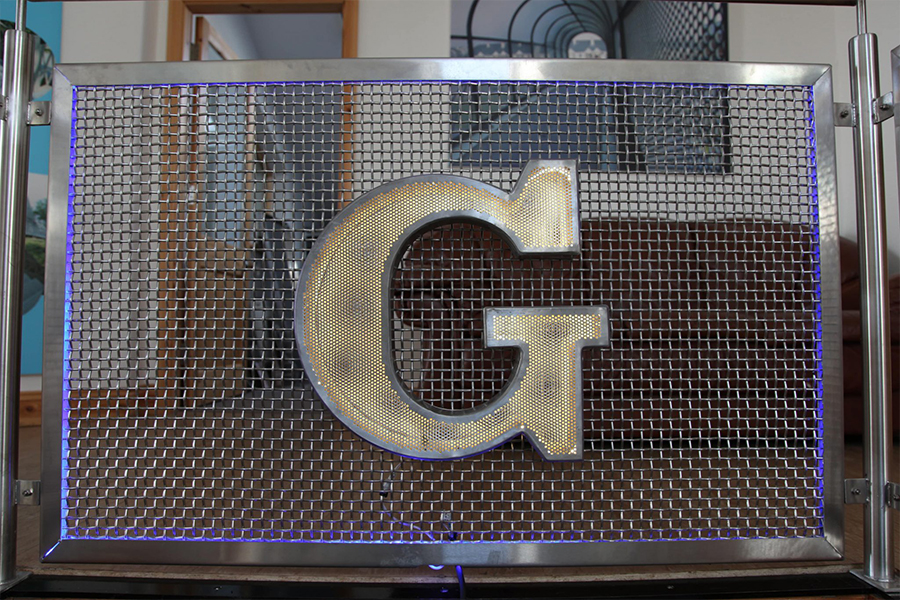

  • Perforated Outdoor Branding

  • perforated Public Artwork
